Remote Keyless Entry (RKE) Module: Removal

WARNING: This page is about a different car, the 2012 Land Rover Range Rover Sport and 2011 Land Rover Range Rover Sport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
    NOTE: RH side only.
  1. Refer to: REAR QUARTER TRIM PANEL .
  2. Torque: 9 Nm

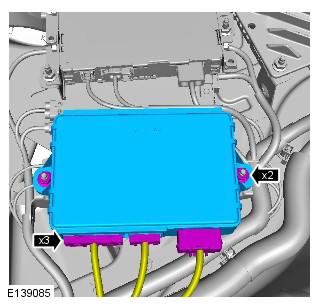

    G00523984Courtesy of JAGUAR CARS, INC.
