In-Vehicle Temperature Sensor: Removal

  1. Fully extend the steering column for access.
  2. Remove the instrument panel access panel.
    • Release the 2 clips.
      G08766670

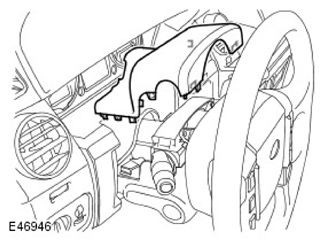

  3. Remove the steering column upper shroud.
    • Release the 6 clips.
      G08766671

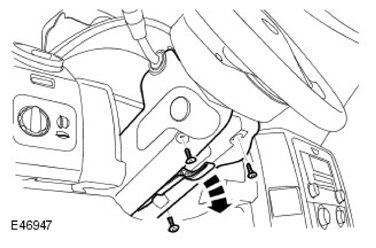

  4. Remove the steering column lower shroud.
    • Remove the 3 Torx screws.
    • Release the steering column adjustment lever.
      G08766672

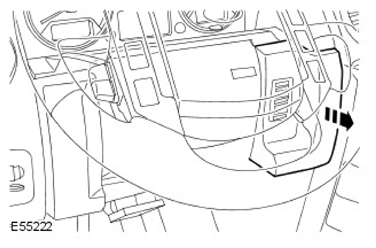

  5. Remove the steering column side trim panel.
    • Release the clips.
    • Repeat the above procedure for the other side.
      G08766673

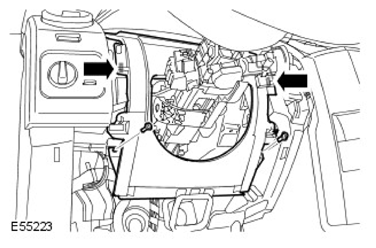

  6. Release the steering column gaiter panel.
    • Remove the 2 Torx screws.
    • Release the 2 clips.
      G08766674

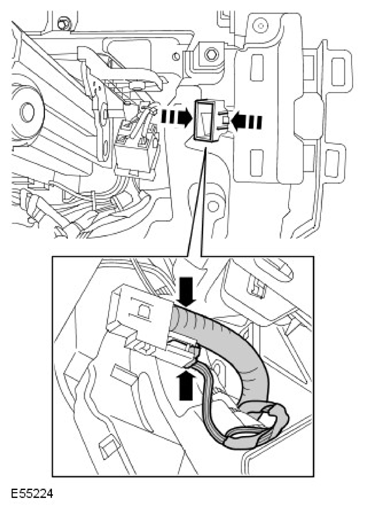

  7. Remove the in-vehicle temperature sensor.
    • Release the 2 clips.
    • Disconnect the electrical connector.
    • Disconnect the hose.
      G08766675
