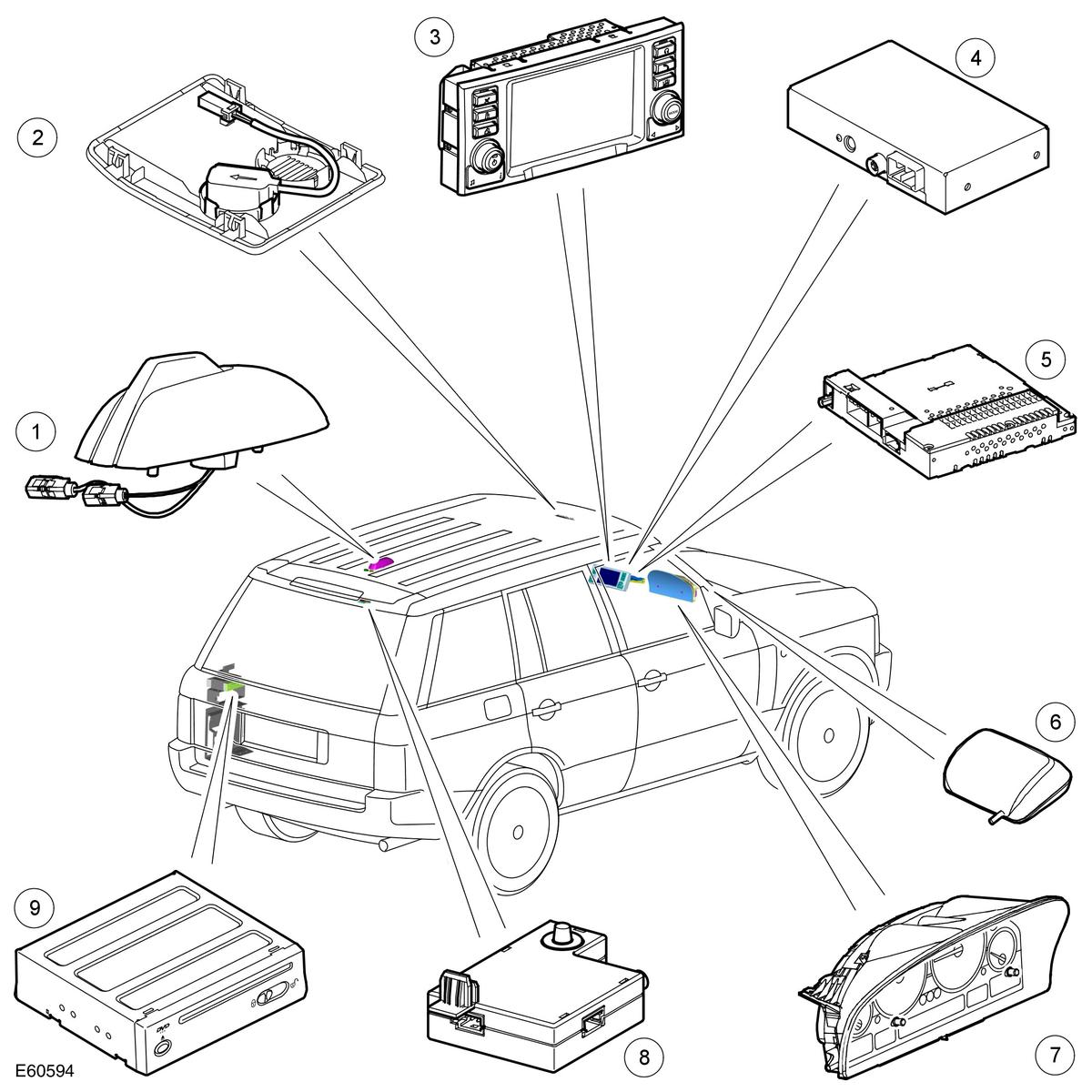

Navigation System Component Location (Japan Only)
WARNING: This page is about a different car, the 2006 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR CARS, INC.
|
| Item Number |
Description |
| 1 |
Roof pod (antenna) |
| 2 |
Microphone |
| 3 |
Touch screen display |
| 4 |
VICS receiver |
| 5 |
Integrated head unit (IHU) |
| 6 |
VICS beacon antenna |
| 7 |
Instrument cluster |
| 8 |
VICS receiver |
| 9 |
Navigation computer |
