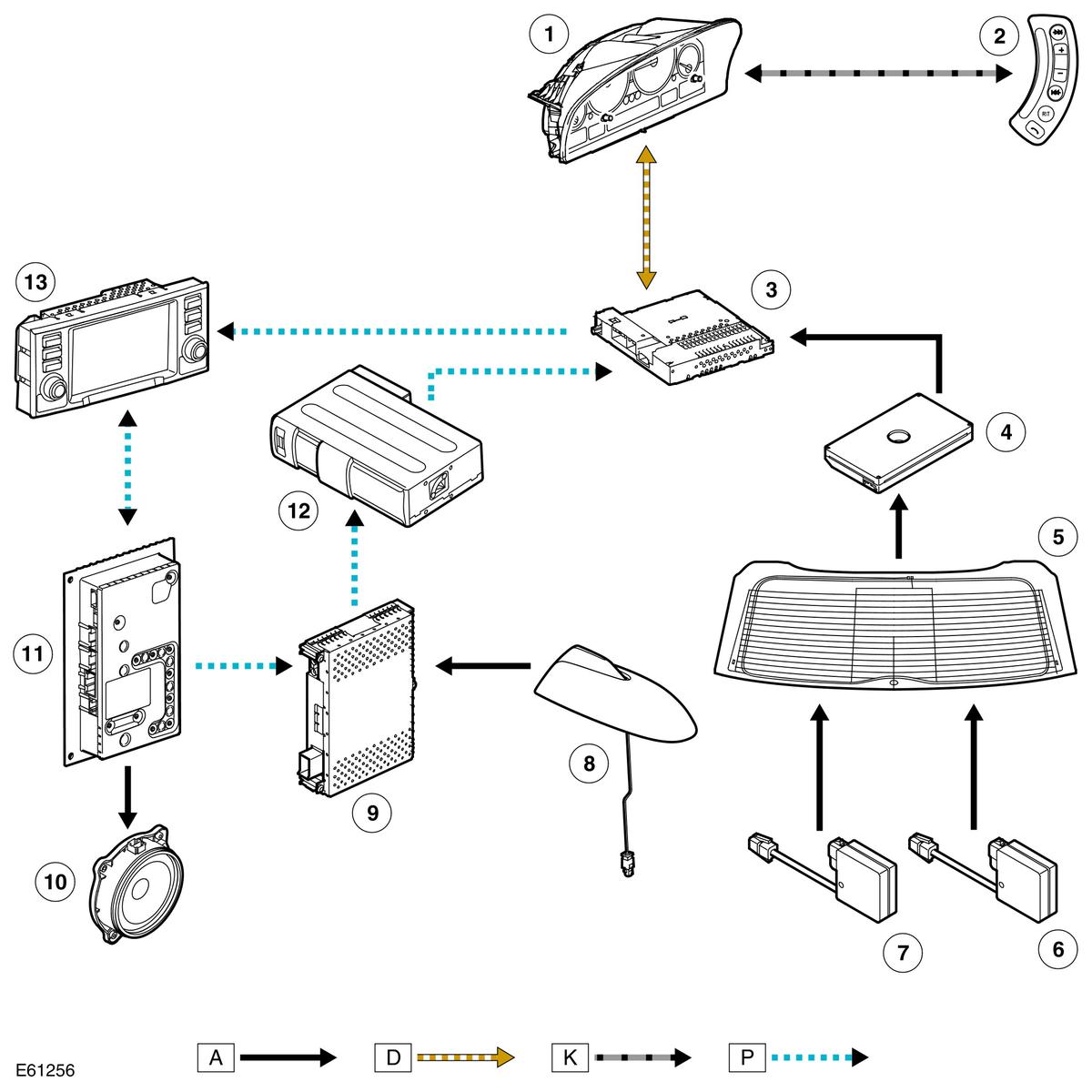

Audio System Control Diagram
WARNING: This page is about a different car, the 2006 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
| Item Number | Description |
|---|---|
| 1 | Instrument cluster |
| 2 | Steering wheel switches |
| 3 | Integrated head unit |
| 4 | Rear screen aerial amplifier |
| 5 | Rear screen |
| 6 | Suppressor |
| 7 | Suppressor |
| 8 | SDARS antenna (NAS only) |
| 9 | SDARS receiver (NAS only) |
| 10 | Vehicle speakers |
| 11 | Amplifier |
| 12 | autochanger |
| 13 | Touch screen display |
NOTE:
A
= Hardwired, D
= HS CAN bus, K
= I Bus, P
= MOST
