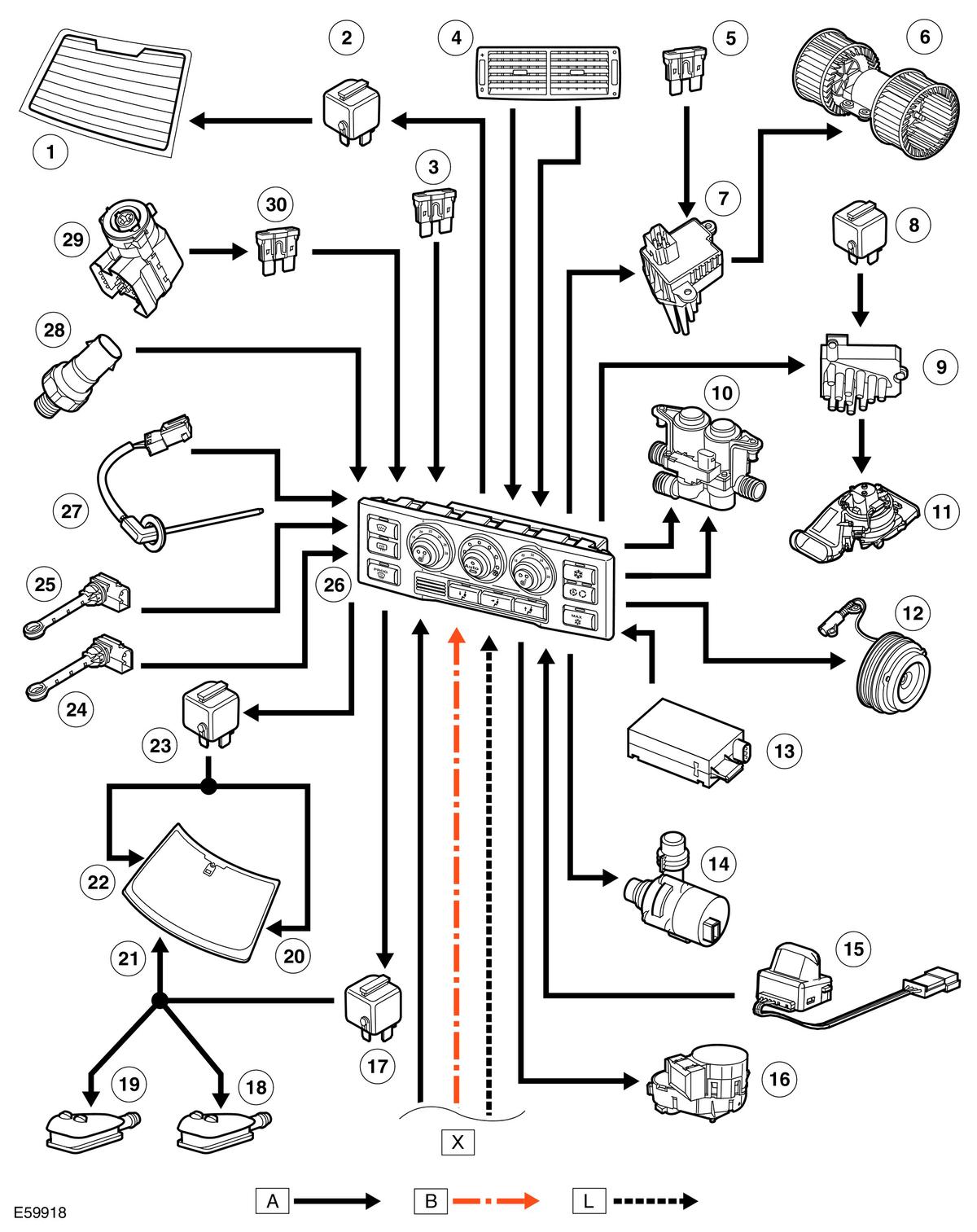

Control Diagram - Automatic System, Sheet 1 Of 2
WARNING: This page is about a different car, the 2006 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A = Hardwired connection; B = K bus; L = M bus
| Item Number | Description |
|---|---|
| 1 | HRW |
| 2 | HRW relay |
| 3 | Fuse 12, CJB |
| 4 | Rear passenger face register |
| 5 | Fuse 64, CJB |
| 6 | Blower |
| 7 | Blower output stage |
| 8 | Rear blower relay |
| 9 | Rear blower output stage |
| 10 | Dual coolant valve |
| 11 | Rear blower |
| 12 | Compressor clutch |
| 13 | Pollution sensor |
| 14 | Auxiliary coolant pump |
| 15 | Sunlight sensor |
| 16 | Fresh/Recirculated air doors motor |
| 17 | Washer jet heater relay |
| 18 | LH washer jet |
| 19 | RH washer jet |
| 20 | Heated windshield, LH heater element |
| 21 | Heated windshield, wiper park heater element |
| 22 | Heated windshield, RH heater element |
| 23 | Heated windshield relay |
| 24 | RH heater temperature sensor |
| 25 | LH heater temperature sensor |
| 26 | ATC module |
| 27 | Evaporator temperature sensor |
| 28 | Refrigerant pressure sensor |
| 29 | Ignition switch |
| 30 | Fuse 34, CJB |
