Anti-Lock Brake System (Abs) Module (Vehicles With: Standard Brakes): Removal

CAUTION: Make sure the ignition switch is in position 0.
NOTE: The hydraulic control unit (HCU) mounted to the ABS module cannot be serviced separately. If the HCU requires replacement, then the ABS module must be replaced as a complete assembly.
    WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
  1. Raise and support the vehicle.
  2. Disconnect the battery ground cable. Refer to Specifications .
  3. Disconnect the electrical connector.
    • Release the latch.
    • Reposition the electrical connector.

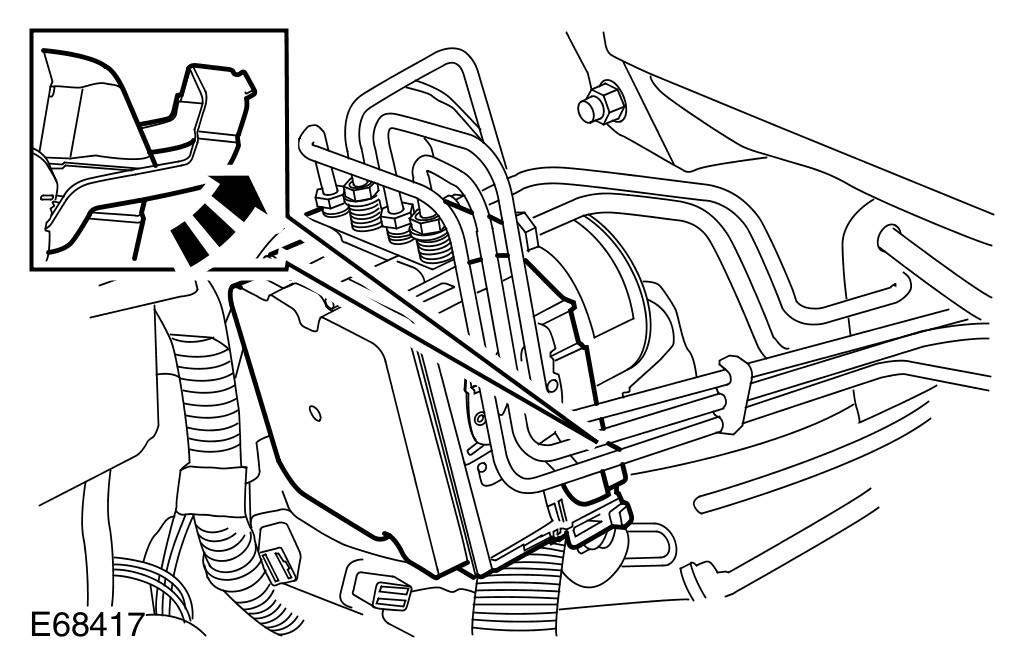

    GJ0018463
    4. CAUTION: Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.
    NOTE: Note the fitted position.
  4. Release the 6 brake fluid lines.
    • Position an absorbent cloth to collect fluid spillage.

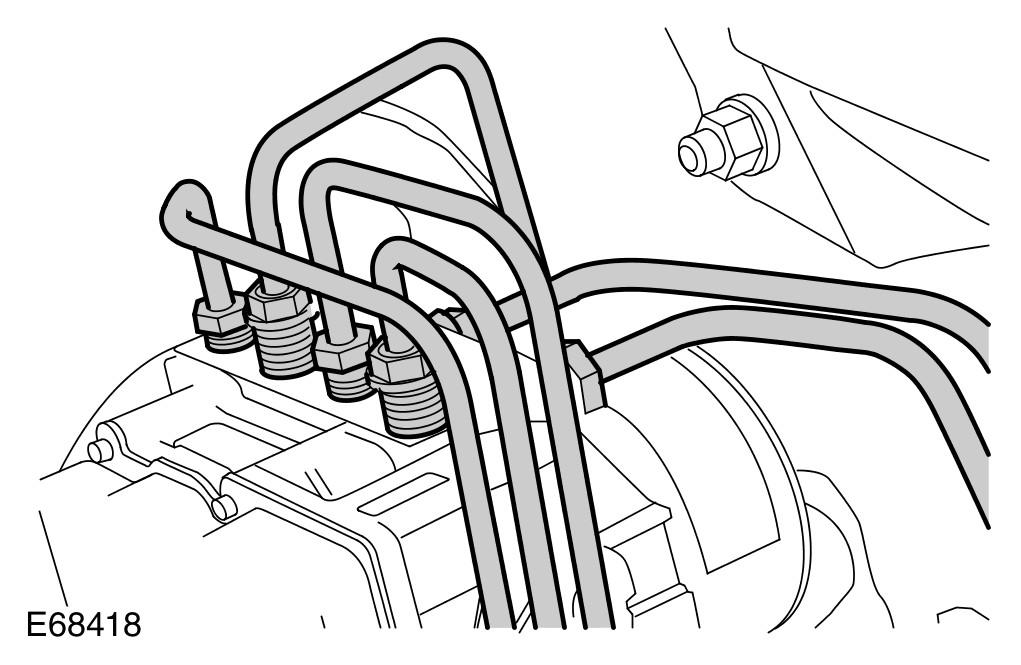

    GJ0018464
  5. Remove the ABS module.
    • Loosen but do not remove the 2 nuts.
    • Release from the locating grommet.

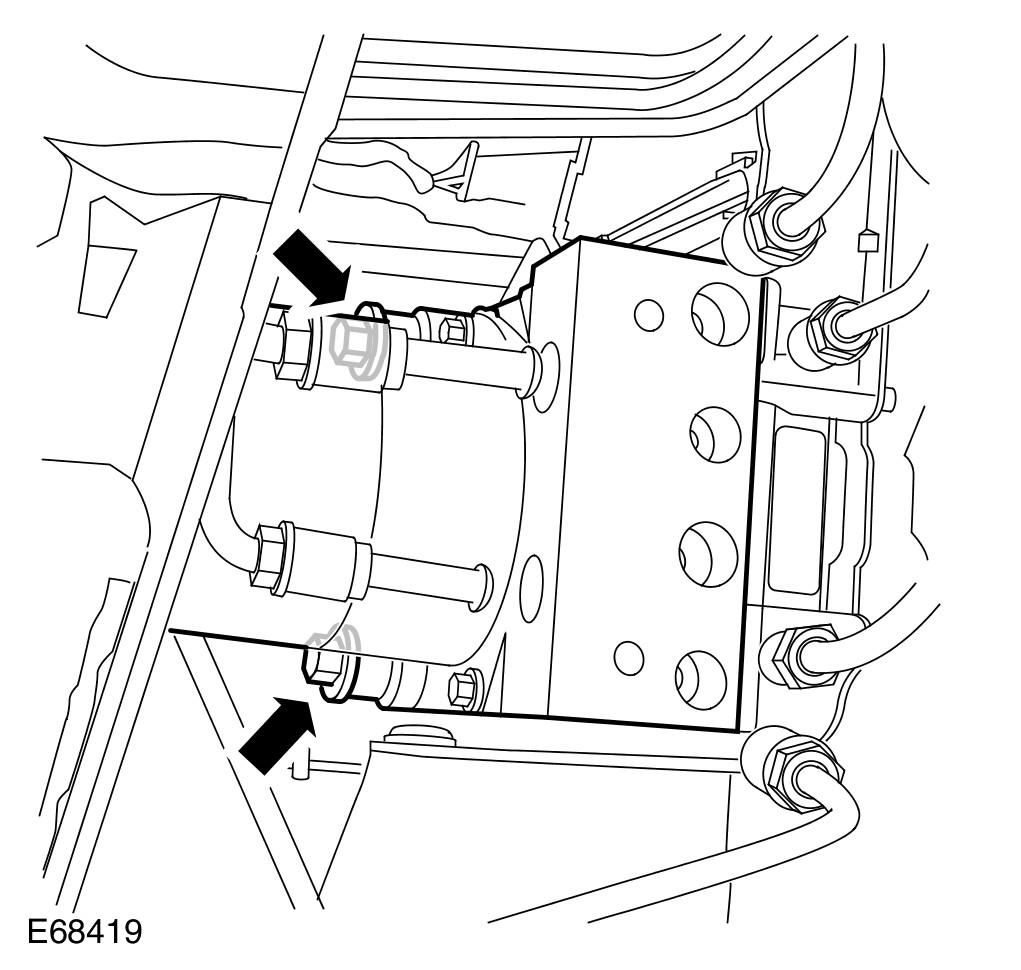

    GJ0018465
