Rear Wheel Speed Sensor: Removal

    WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
  1. Raise and support the vehicle.
  2. Remove the wheel and tire.

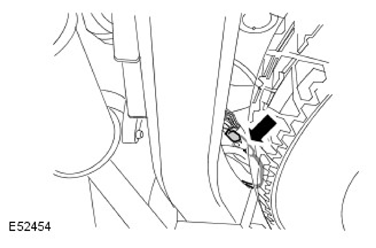

  3. Disconnect the anti-lock brake system (ABS) sensor electrical connector.
    • Release the wiring harness retaining clip.
    G08764405

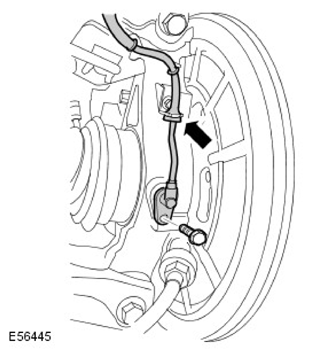

  4. Release the wheel speed sensor from the wheel knuckle.
    • Release the wiring harness.
    • Remove the retaining bolt.
    G08764406

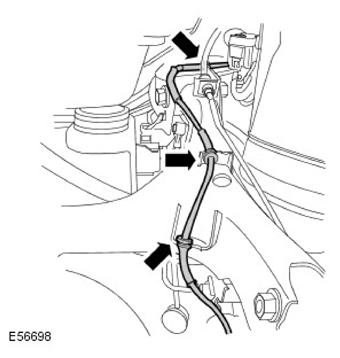

  5. Remove the wheel speed sensor.
    • Release the wiring harness from the 4 clips.
    G08764407
