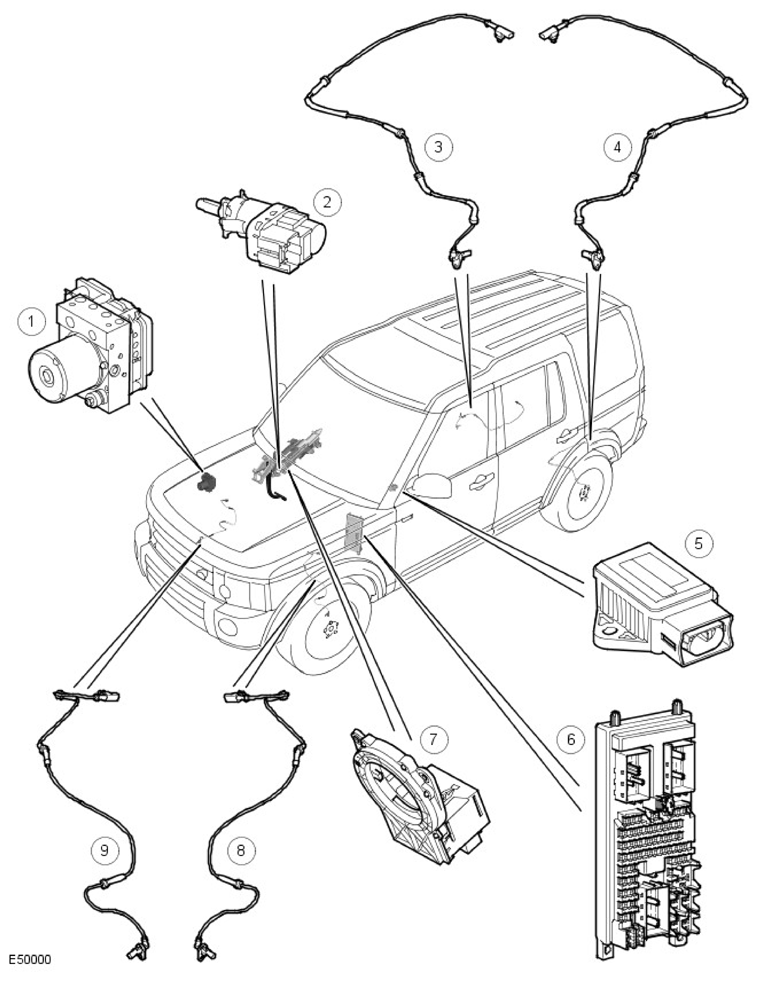

Component Locations - Sheet 1 Of 2
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Hydraulic control unit with attached anti-lock brake system (ABS) module |
| 2 | - | Stoplamp switch |
| 3 | - | Right rear wheel speed sensor |
| 4 | - | Left rear wheel speed sensor |
| 5 | - | Yaw rate and lateral acceleration sensor |
| 6 | - | HDC (hill descent control) relay (non-serviceable, integrated into central junction box (CJB)) |
| 7 | - | Steering angle sensor |
| 8 | - | Left front wheel speed sensor |
| 9 | - | Right front wheel speed sensor |
