Fuel System Pressure Check TDV6 2.7L Diesel

Special Tool(s)

	Gauge fuel pressure 310-116-01

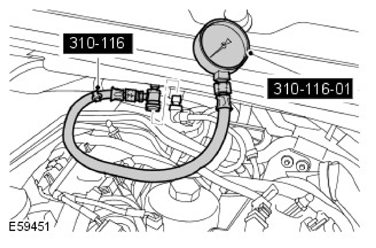

	Adapter - fuel pressure check 310-116(LRT-19-006A)

1. Disconnect the battery ground cable.

   For additional information, refer to: Specification information.

2. Remove the engine cover.
3. Remove the fuel rail Schraeder valve cap.
4. Install the special tool to the fuel rail Schraeder valve.
WARNING: Do not carry or operate cellular phones when working on or near any fuel related components. Highly flammable vapors are always present and may ignite. Failure to follow these instructions may result in personal injury.
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable vapors are always present and may ignite. Failure to follow these instructions may result in personal injury.
WARNING: The spilling of fuel is unavoidable during this operation. Ensure that all necessary precautions are taken to prevent fire and explosion.
5. Start and run the engine.
   • Open the valve on the special tool.
   • Note the fuel pressure readings.
6. For fuel pressure data, refer to specifications.
7. Close the special tool valve.
8. Disconnect the special tool from the Schraeder valve.
9. Install the Schraeder valve cap.
10. Install the engine cover.
11. Connect the battery ground cable.

    For additional information, refer to: Specification information.
