Heater Assembly Removal And Installation Procedures And Labor Time Changes (80/01/06/NAS)

Publication date: 2006-08-25
Reference number: 80/01/06/NAS

HEATER ASSEMBLY REMOVAL AND INSTALLATION PROCEDURES AND LABOR TIME CHANGES

HEATER ASSEMBLY REMOVAL AND INSTALLATION PROCEDURES AND LABOR TIME CHANGES

TECHNICAL SERVICE BULLETIN

Reference Number(s): 80/01/06/NAS, Date of Issue:  August 25, 2006
LAND ROVER: Freelander
ISSUE: 1
FGN: 412
SECTION: Air Conditioning
AFFECTED VEHICLES: Freelander (LN) VIN: All

SITUATION

CHANGES TO HEATER ASSEMBLY REMOVAL AND INSTALLATION PROCEDURES AND LABOR TIME

Land Rover engineering has studied the service procedures for removing and installing the heater assembly on Freelander models. Significant process changes have been made to refine and improve the operation, which may now be carried out more efficiently and in less time. The change adds a step for clamping the heater hoses so a cooling system drain and refill is no longer required.

NOTE: The relevant Workshop Manual sections affected by these revised procedures will be updated at the next available opportunity.

RESOLUTION

REMOVE AND INSTALL HEATER ASSEMBLY

Should it become necessary to remove a heater assembly on a Freelander, refer to the SERVICE PROCEDURE  detailed in this Bulletin to remove and install a heater assembly.

PARTS INFORMATION

No parts required.

WARRANTY CLAIMS

NOTE: Superseded labor times for SRO 80.20.01 - "Replace heater housing" are as follows:
  • 2002 - 2003 MY the old labor time of 3.30 hours is superseded by 2.40 hours.
  • 2004 - 2005 MY the old labor time of 3.70 is superseded by 2.80 hours.

Repair procedures are under constant review, and therefore times are subject to change; those quoted here must be taken as guidance only. Always refer to DDW to obtain the latest repair time.

DDW requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.

WARRANTY CLAIMS

Description SRO Old Time (Hours) New Time (Hours) Causal Part
Replace heater housing - 2.5L Kv6 (2002 - 2003 MY) 80.20.01  3.30 2.40  As applicable
Replace heater housing - 2.5L Kv6 (2004 - 2005 MY) 80.20.01  3.70 2.80  As applicable

Normal warranty policy and procedures apply.

Service Procedure

Please note that the relevant Workshop Manual Section, which these updated procedures relate to, will be updated at the next available opportunity.

  1. Clamp the heater matrix supply and return hoses.

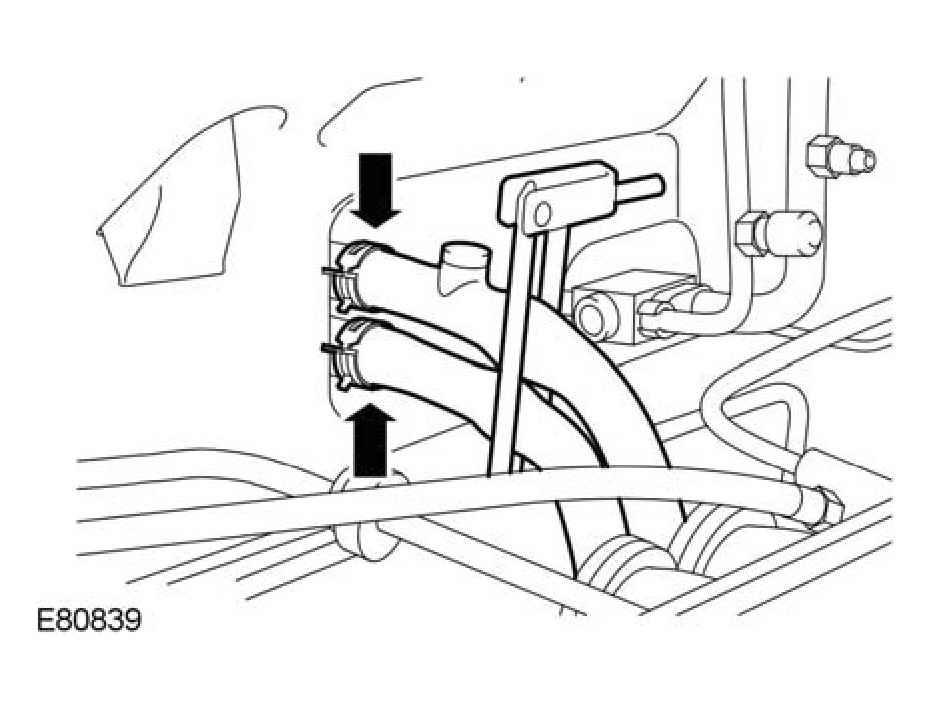

    Fig 1: Clamping Heater Matrix Supply And Return Hoses
    G04592863Courtesy of LAND ROVER NORTH AMERICA, INC.
  2. NOTE: A small amount of fluid loss is unavoidable; position an absorbent cloth or container to collect it.

    Release the two clips securing the heater hoses to the heater and release the hoses.
  3. Remove the fascia. For additional information, refer to Freelander Workshop Manual Section 76-3 - INTERIOR TRIM COMPONENTS.
  4. Remove the two bolts from console support bracket, release the two relays and remove the bracket.

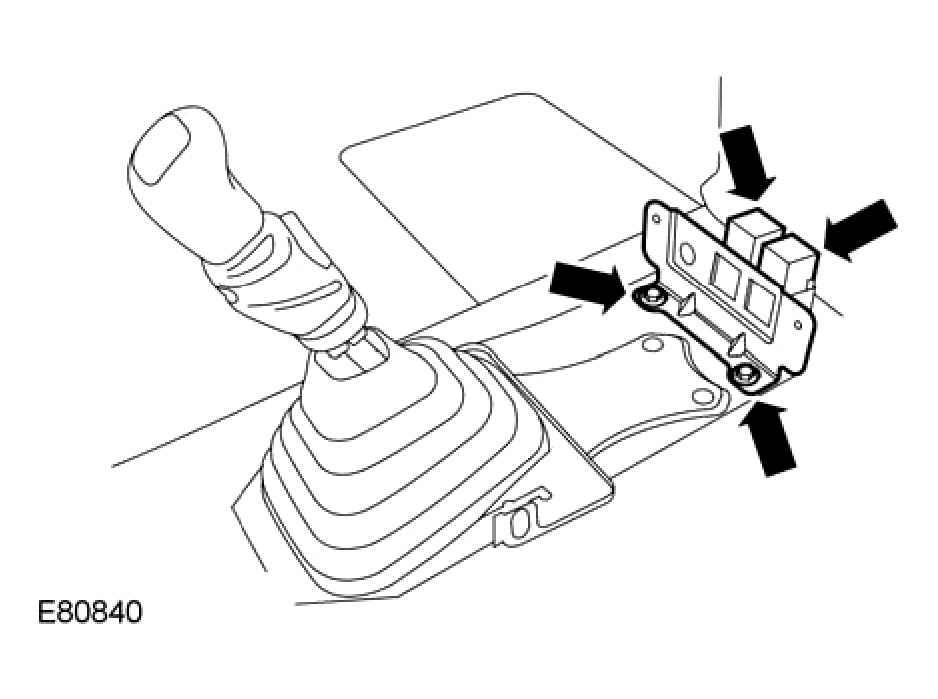

    Fig 2: Locating Bolts & Relays
    G04592864Courtesy of LAND ROVER NORTH AMERICA, INC.
  5. Disconnect the four electrical connectors from the heater controls.

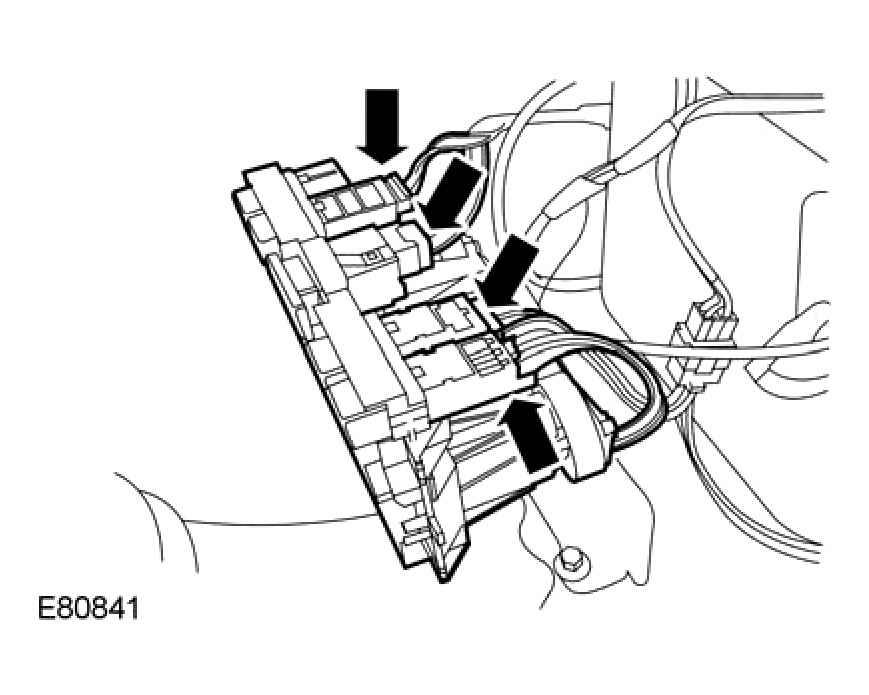

    Fig 3: Locating Electrical Connectors For Heater Controls
    G04592865Courtesy of LAND ROVER NORTH AMERICA, INC.
  6. Disconnect the electrical connector from the heater and release the diagnostic socket.

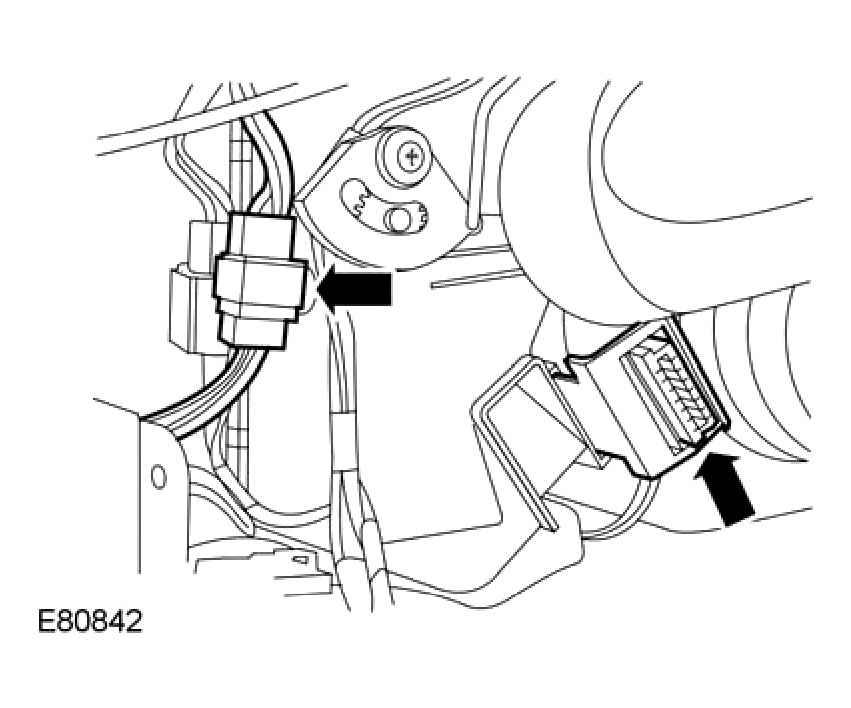

    Fig 4: Locating Electrical Connector & Diagnostic Socket
    G04592866Courtesy of LAND ROVER NORTH AMERICA, INC.
  7. Disconnect the electrical connector from the evaporator.
  8. Remove the bolt from the duct of the left-hand outer face level vent and release the duct from the heater.

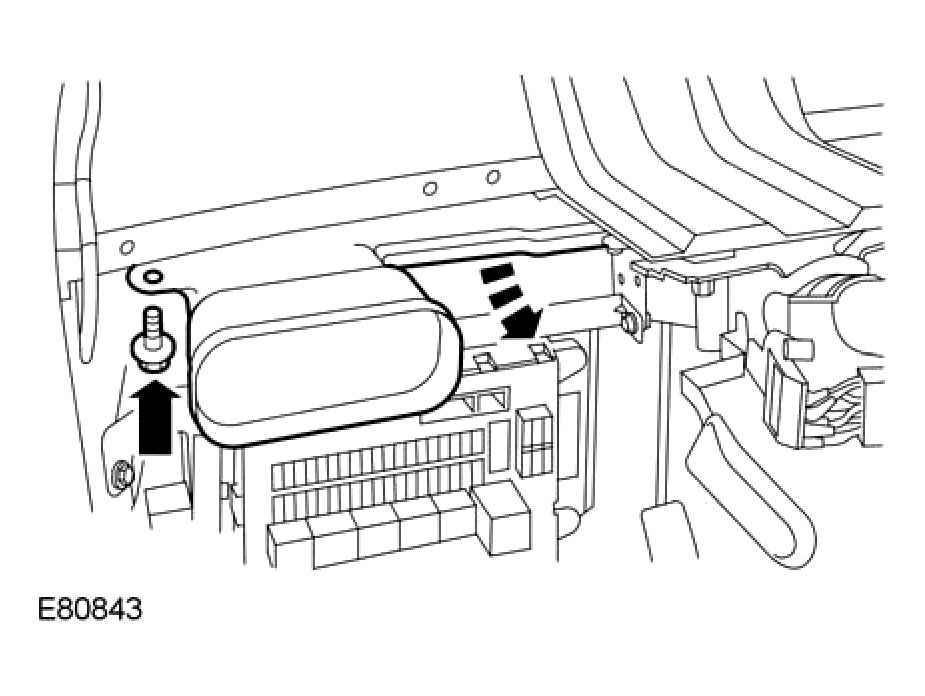

    Fig 5: Locating Bolt For Duct Of Left-Hand Outer Face Level Vent
    G04592867Courtesy of LAND ROVER NORTH AMERICA, INC.
  9. Remove the bolt from the duct of the right-hand outer face level vent and release the duct from the heater.

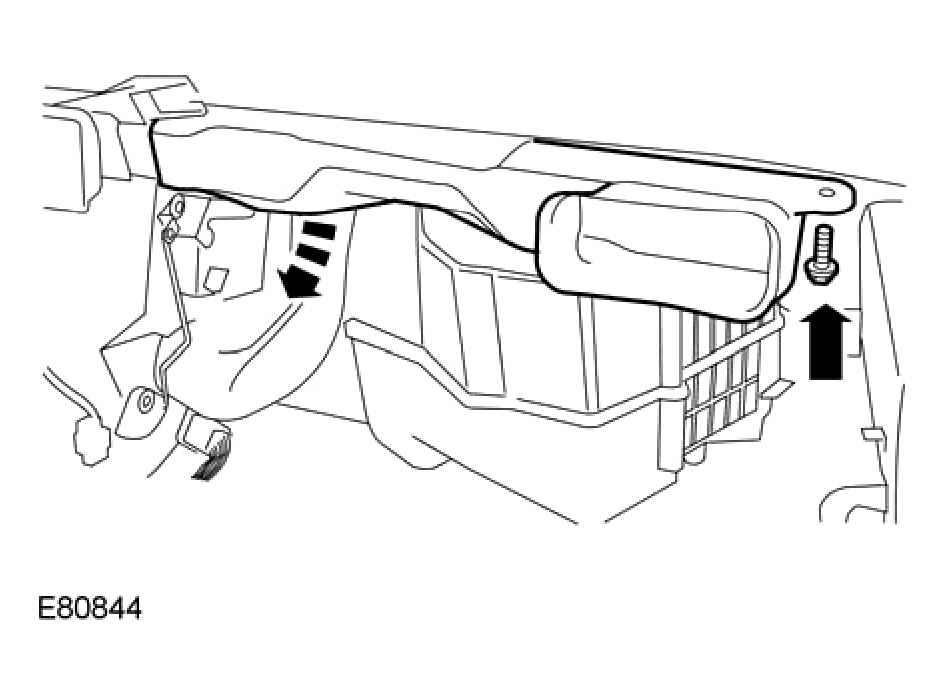

    Fig 6: Locating Bolt For Duct Of Right-Hand Outer Face Level Vent
    G04592868Courtesy of LAND ROVER NORTH AMERICA, INC.
  10. Release the duct of right-hand demister vent.

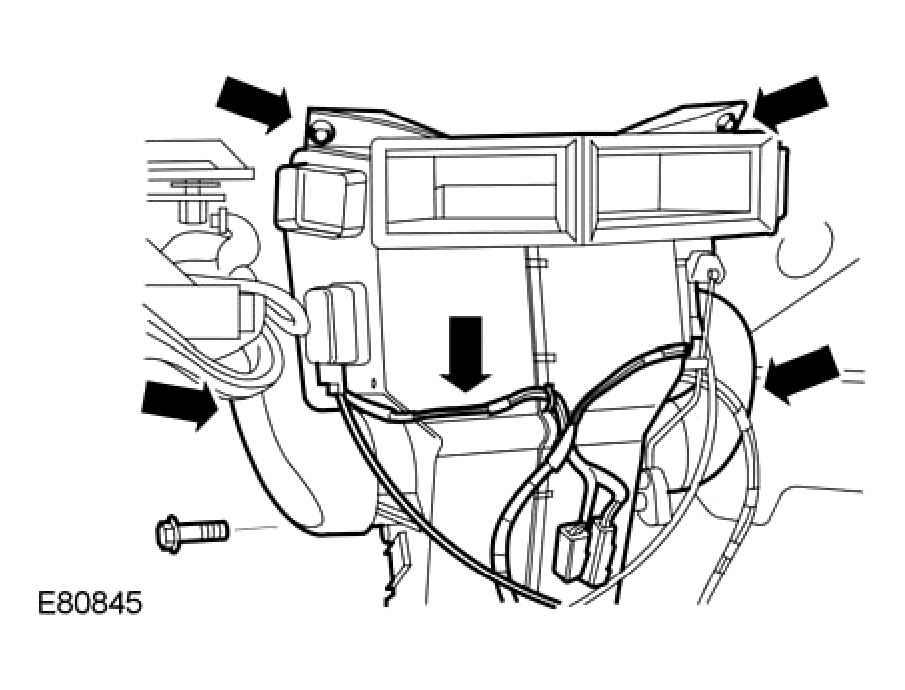

    Fig 7: Releasing Duct Of Right-Hand Demister Vent
    G04592869Courtesy of LAND ROVER NORTH AMERICA, INC.
  11. Release the duct of left-hand demister vent.
  12. Release the air inlet electrical connector hose.
  13. Release the harness from the two clips on the heater.
  14. NOTE: Do not carry out further dismantling if the component is removed for access only.

    Remove the two nuts and one bolt securing the heater to the body and remove the heater.
  15. Disconnect the two electrical connectors from the heater controls.

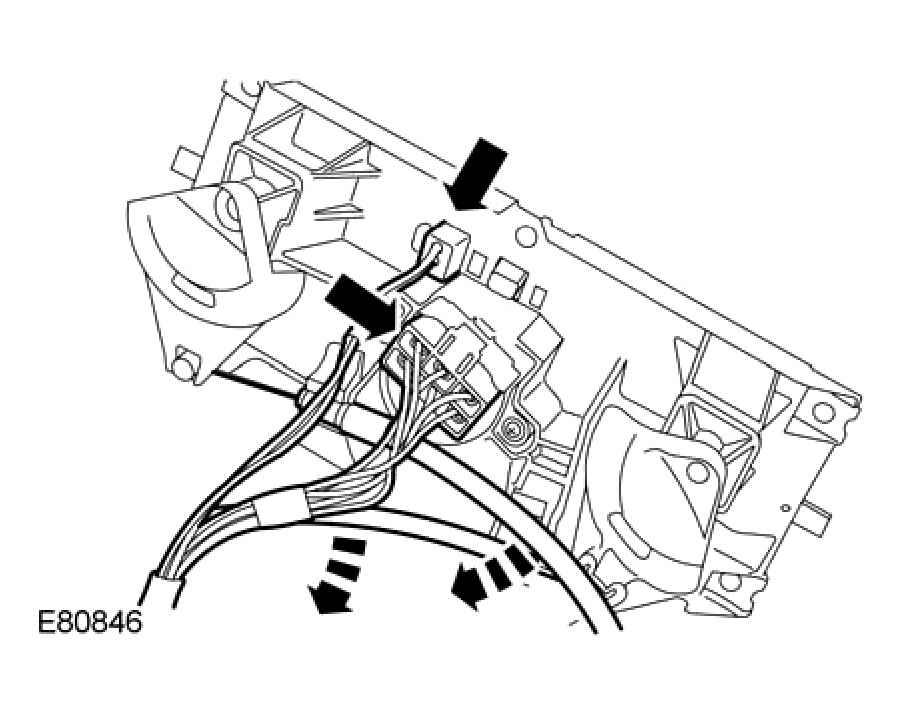

    Fig 8: Disconnecting Electrical Connectors From Heater Controls
    G04592870Courtesy of LAND ROVER NORTH AMERICA, INC.
  16. Release the air blend control cable from the lever and abutment.
  17. Release the air distribution cable from the lever and abutment.
  18. Remove the heater controls.

    Install

  19. Position the heater controls to the new heater.
  20. Connect the air distribution cable to the lever and abutment.
  21. Connect the air blend cable to the lever and abutment.
  22. Connect the electrical connectors to the heater controls.
  23. Install the heater and secure with the nuts and bolt.
  24. Position the wiring harness and secure with the clips on the heater.
  25. Install the air inlet electrical connector hose.
  26. Install the right-hand demister vent duct to the heater.
  27. Install the right-hand outer face level vent duct to the heater and secure to the body with the bolt.
  28. Install the left-hand demister vent duct to the heater.
  29. Install the left-hand outer face level vent duct to the heater and secure to the body with the bolt.
  30. Connect electrical connector to evaporator.
  31. Connect the electrical connector to the heater and secure the diagnostic socket.
  32. Connect the electrical connectors to the heater controls.
  33. Install the console support bracket and secure with bolts.
  34. Install the relays to the console support bracket.
  35. Install the fascia.
  36. Connect the heater hoses and secure with clips.
  37. Remove the hose clamps from the coolant hoses.
  38. Top up coolant as necessary.
  39. Remove container from beneath the vehicle.
