EVAP System Leak Measurement Monitoring Structure

For EVAP system monitoring structure flow charts, see Fig 1 , Fig 2 and Fig 3 .

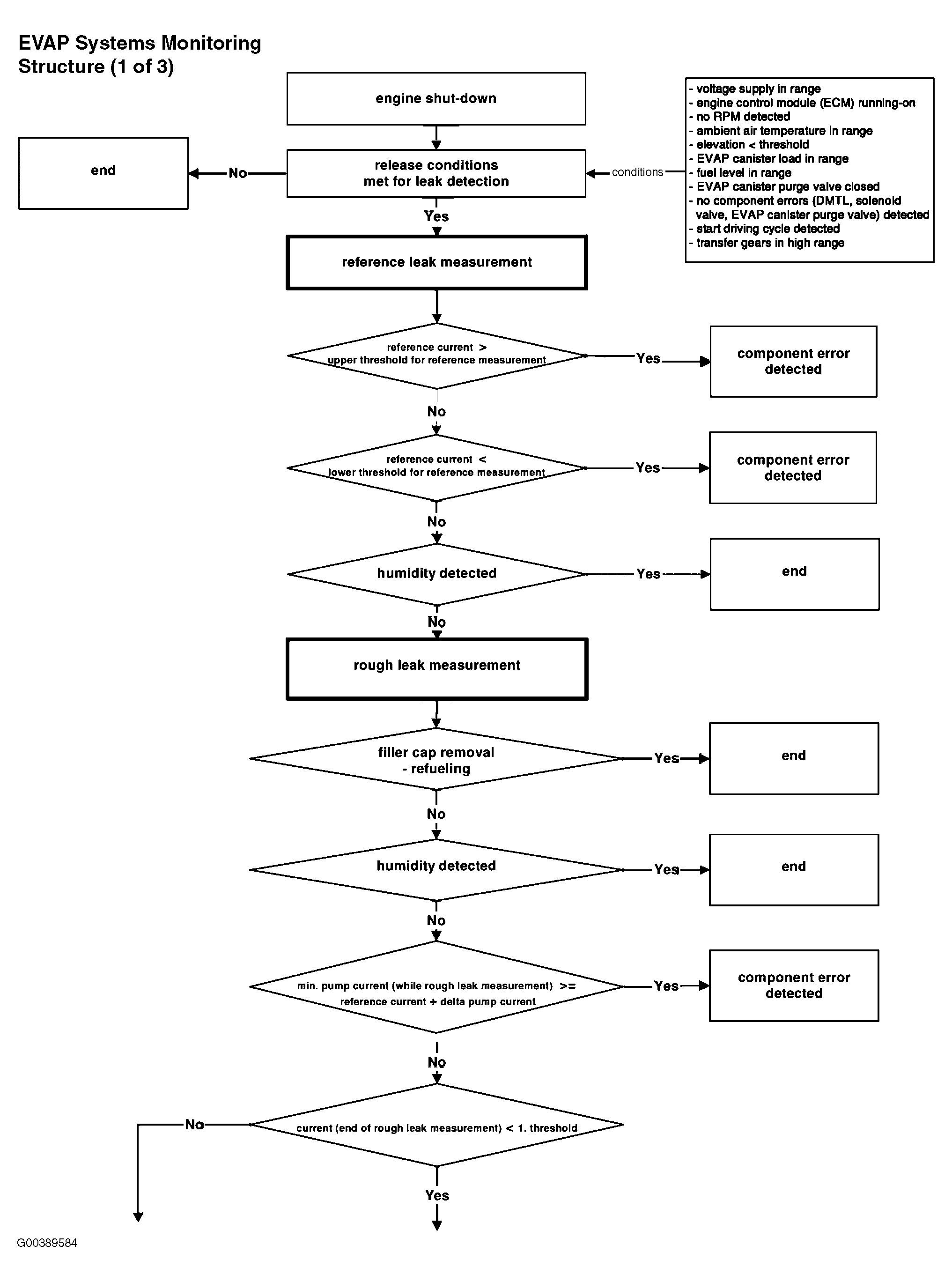

Fig 1: EVAP System Monitoring Structure Flow Chart (1 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

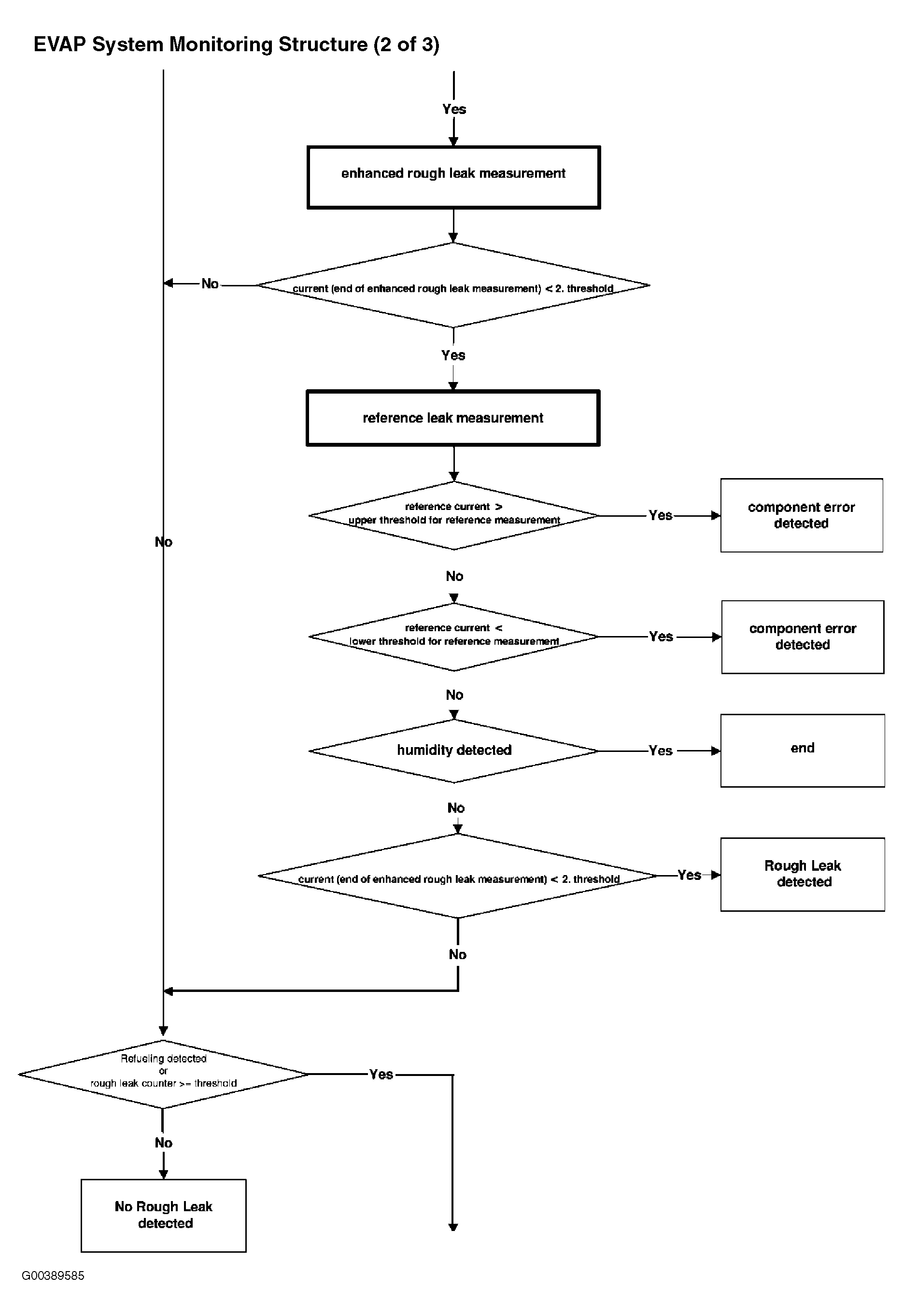

Fig 2: EVAP System Monitoring Structure Flow Chart (2 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

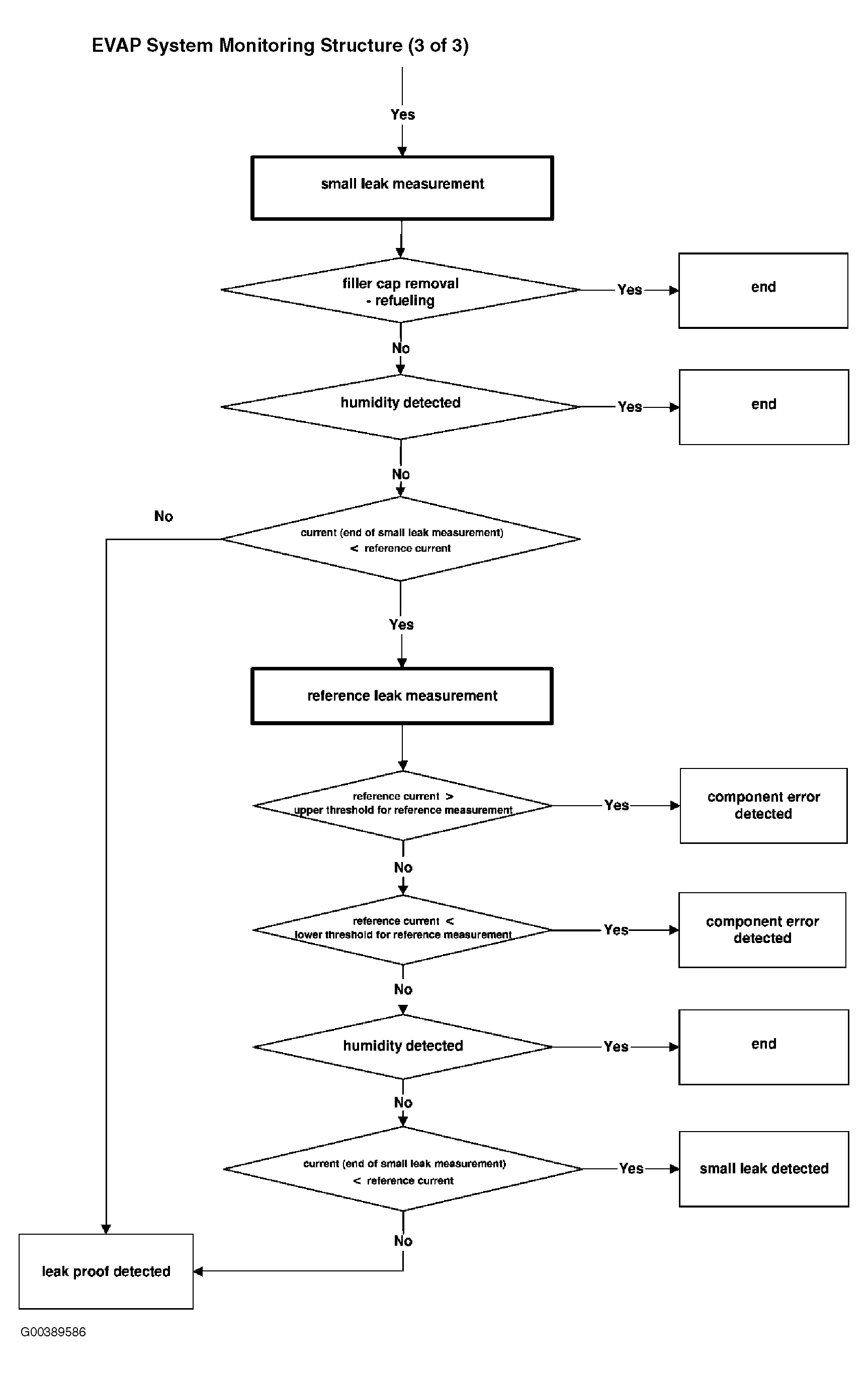

Fig 3: EVAP System Monitoring Structure Flow Chart (3 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.
