System Components: Ecu

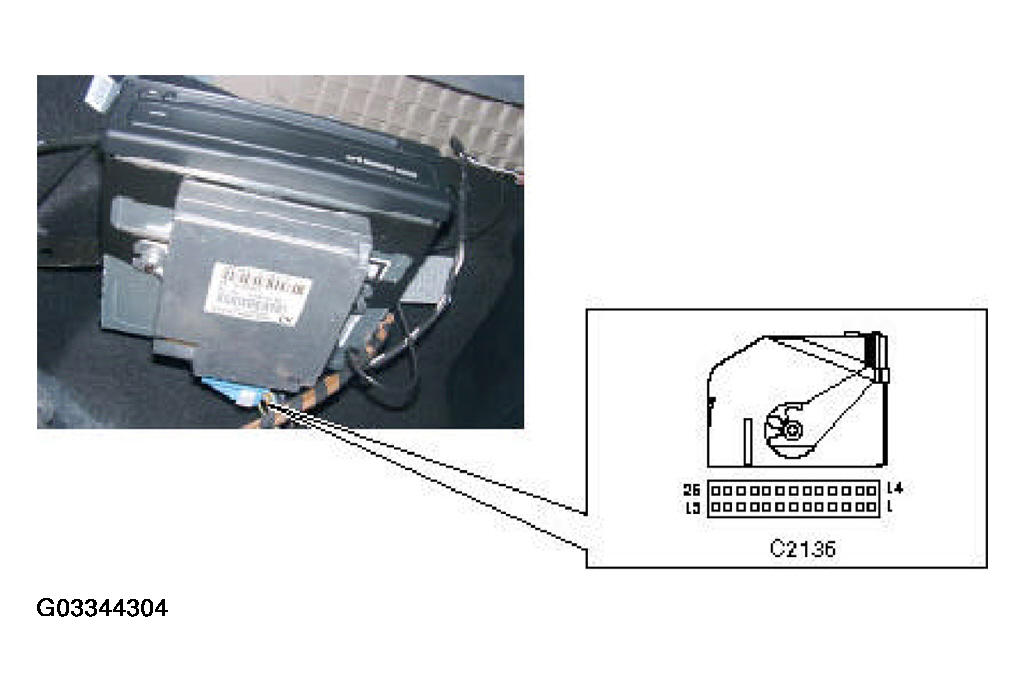

Fig 1: Identifying ECU

Courtesy of LAND ROVER NORTH AMERICA, INC.

The voice recognition ECU is located in the rear loadspace under the navigation computer where fitted. The ECU communicates with the telephone and navigation systems on the I-Bus and hard wired connections.

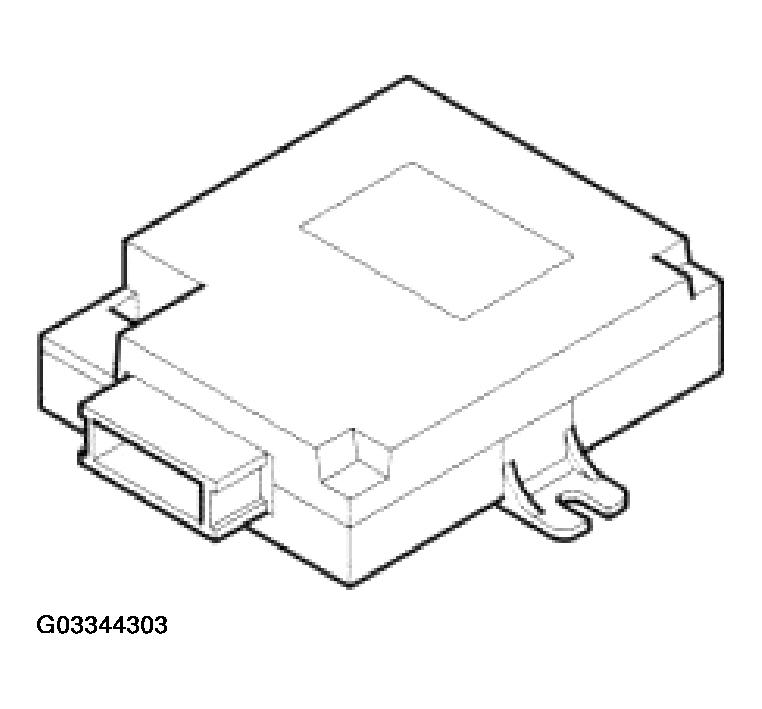

Fig 2: Identifying ECU Communicates With Telephone And Navigation Systems

Courtesy of LAND ROVER NORTH AMERICA, INC.
