Home >> Land Rover >> 2003 >> Freelander S >> Repair and Diagnosis >> Body & Frame >> Windows >> Windows - Description & Operation >> Window Component Layout - From 2004 Model Year

Window Component Layout - From 2004 Model Year

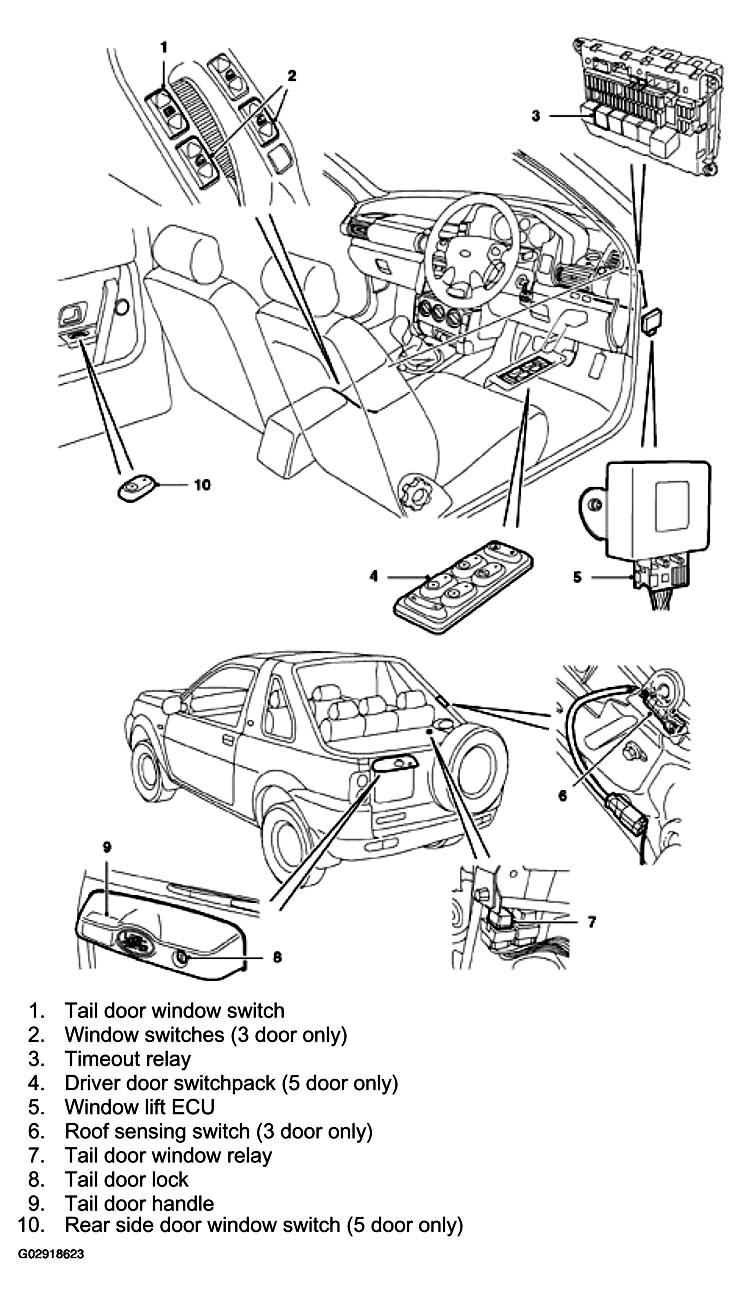

Fig 1: Locating Window Components (From 2004 Model Year)
G02918623Courtesy of LAND ROVER NORTH AMERICA, INC.
