Navigation System Display Unit
>>
Removal & Installation
Removal & Installation

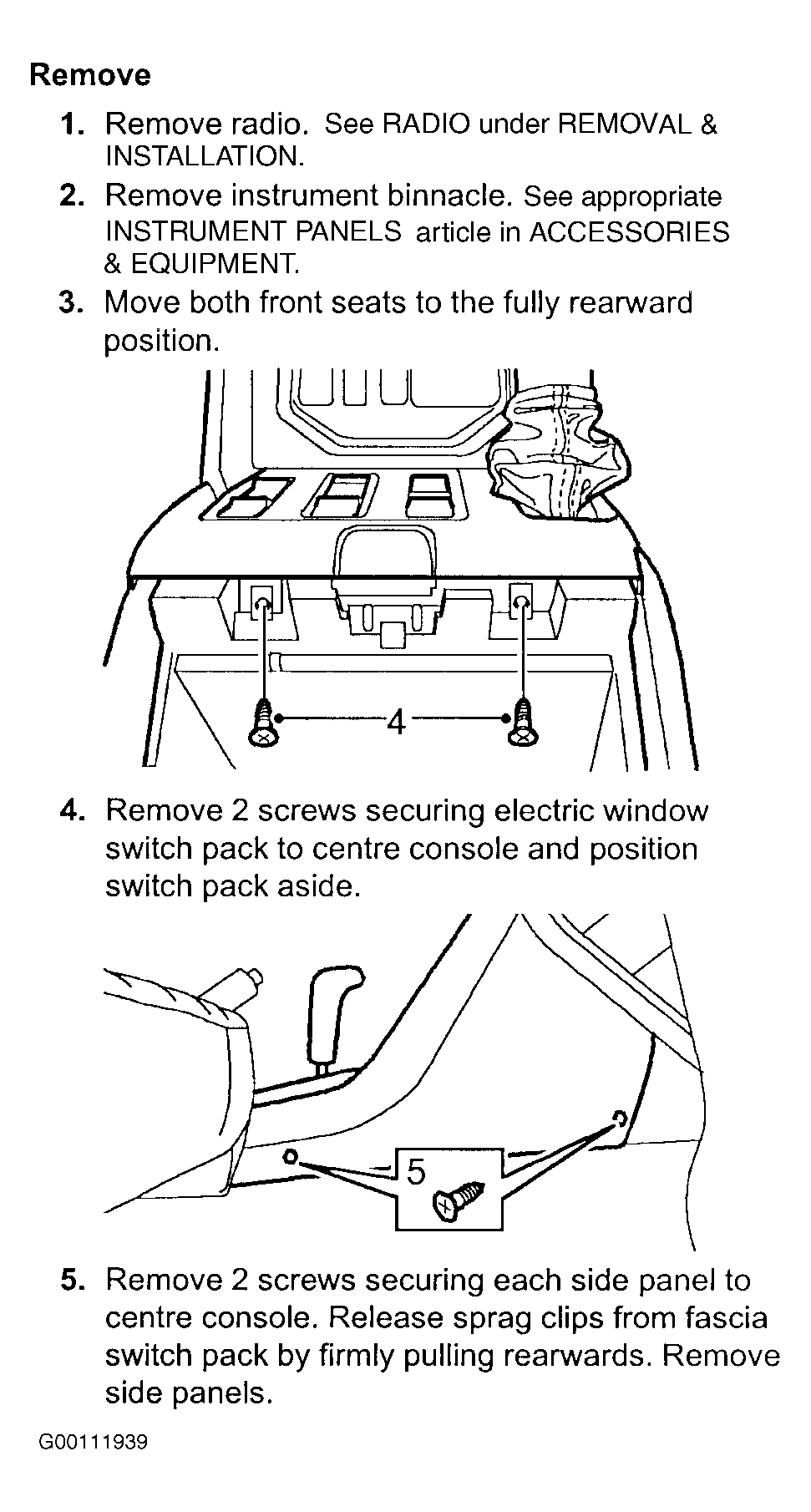

Fig 1: Removal & Installation Of Navigation System Display Unit (1 Of 2)
Courtesy of LAND ROVER NORTH AMERICA, INC.

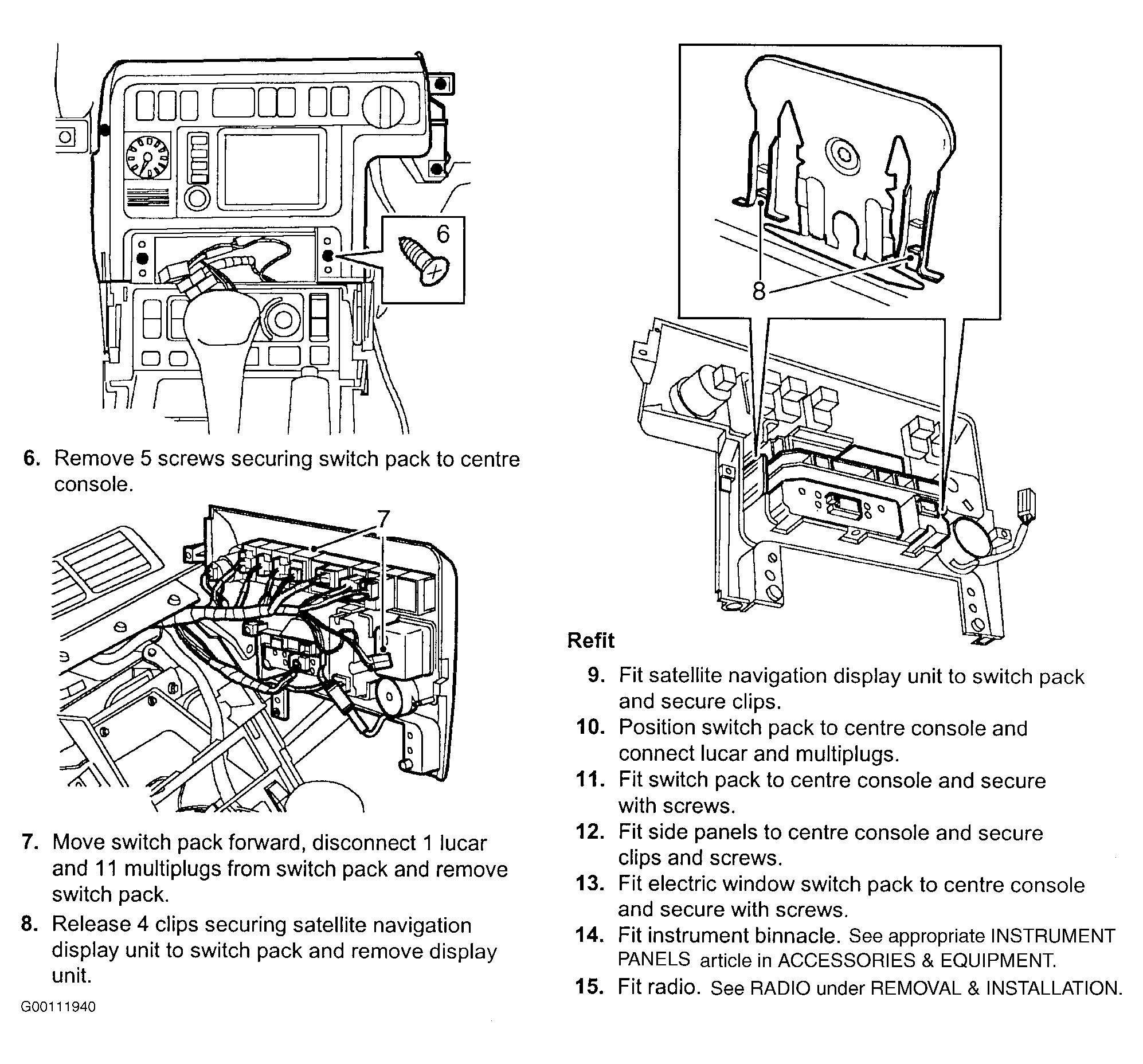

Fig 2: Removal & Installation Of Navigation System Display Unit (2 Of 2)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
