Engine Tuning Data - 4.2L V8

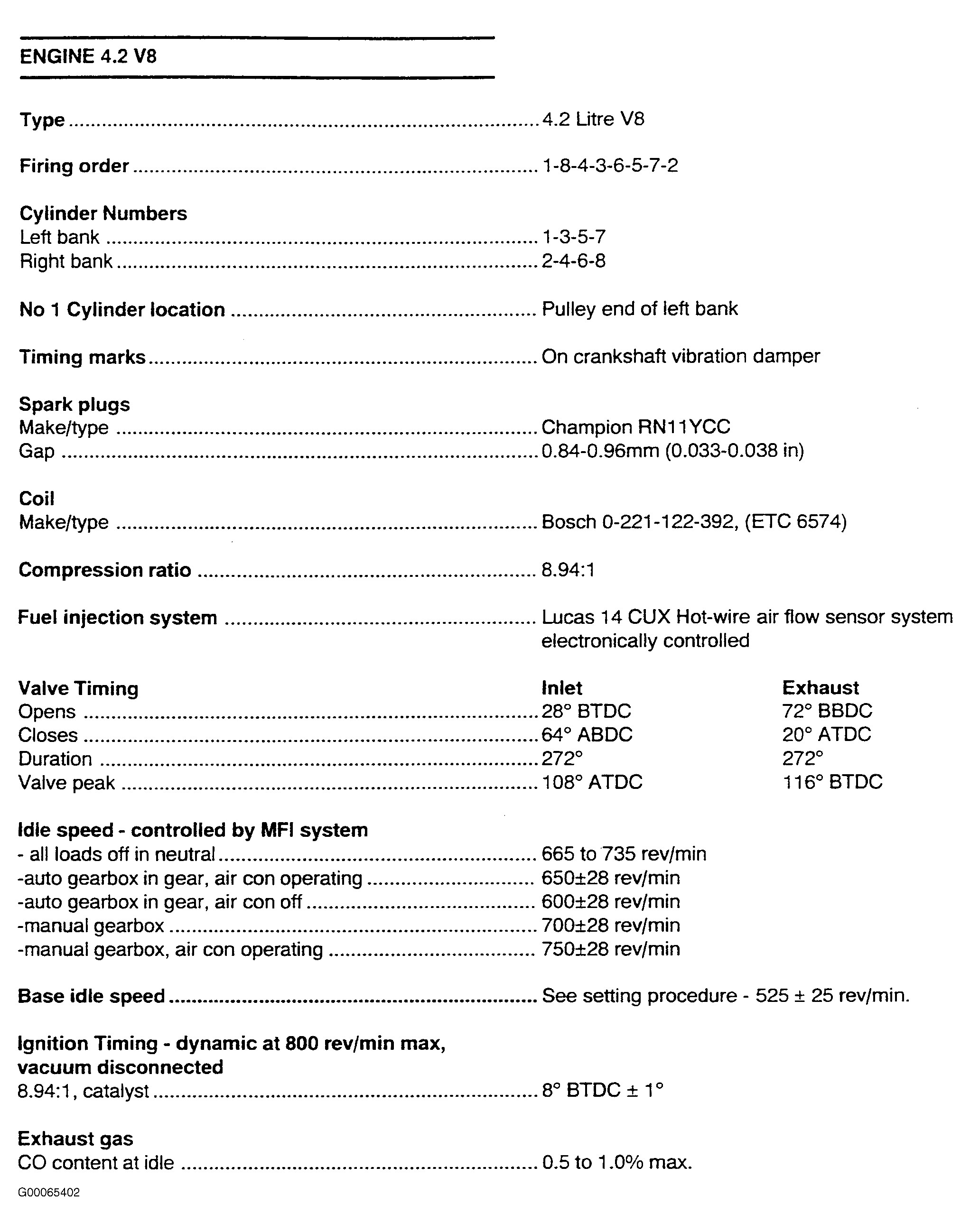

Fig 1: Engine Tuning Data - 4.2L V8 (1 Of 2)
G00065402Courtesy of LAND ROVER NORTH AMERICA, INC.

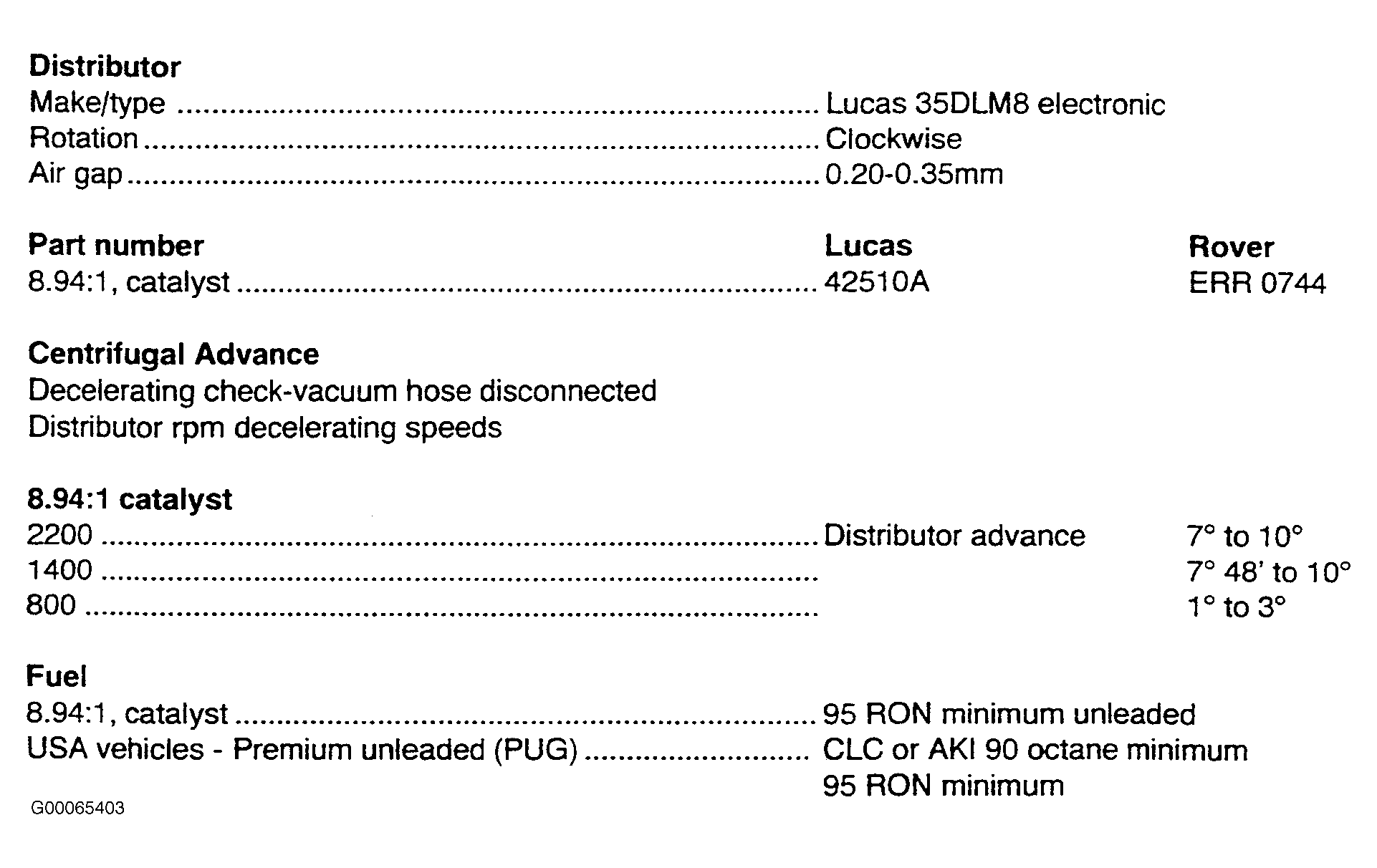

Fig 2: Engine Tuning Data - 4.2L V8 (2 Of 2)
G00065403Courtesy of LAND ROVER NORTH AMERICA, INC.
