Inspection (Piston)

NOTE: A rubber seal is fitted behind plastic ring on rack piston. Discard seal and plastic ring.

Discard all rubber seals and provide replacements. See Fig 1 .

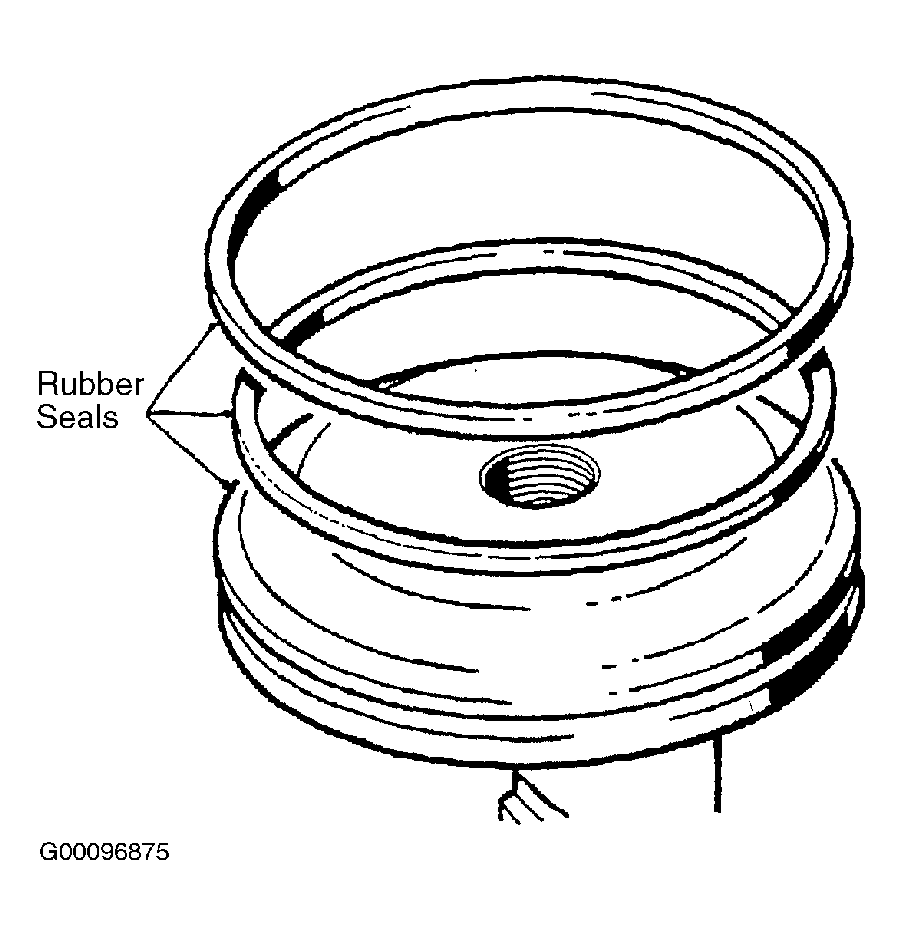

Fig 1: Inspecting Rubber Seals
G00096875Courtesy of LAND ROVER NORTH AMERICA, INC.
