Firing Order & Spark Plug Wire Routing

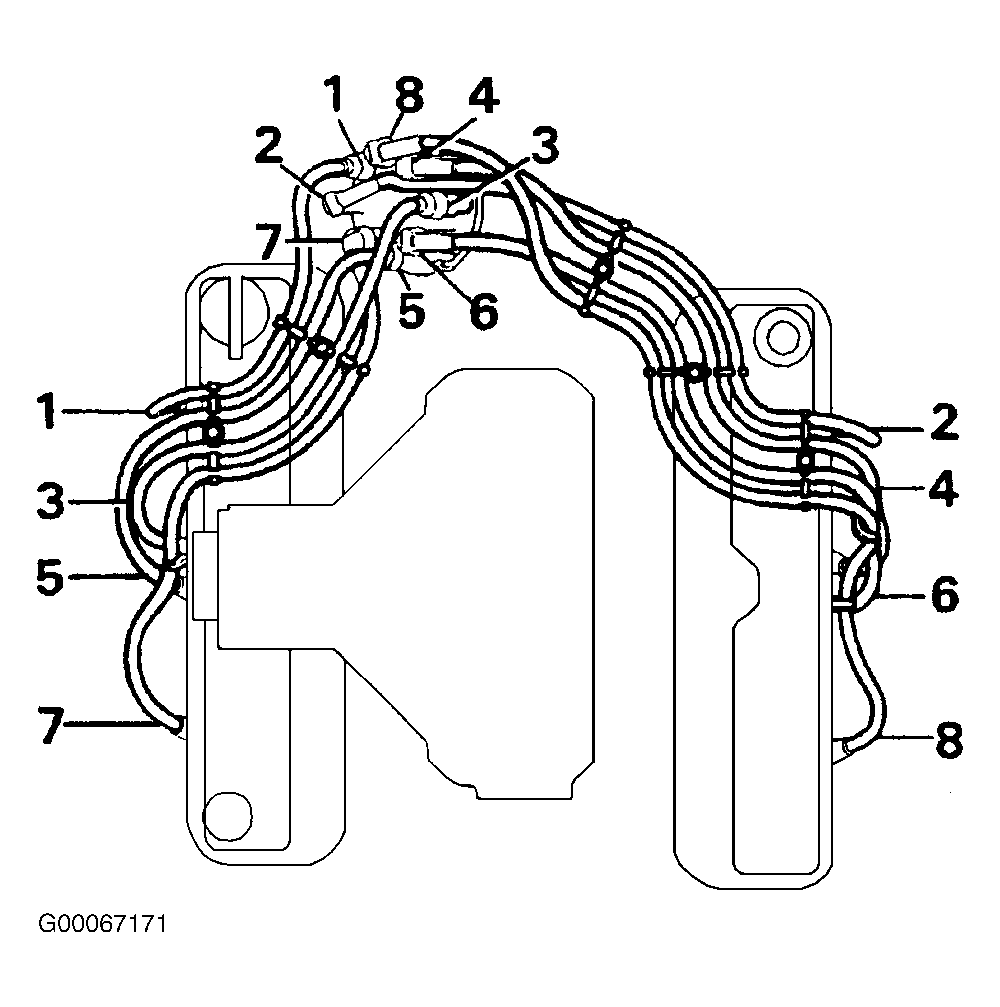

Fig 1: Firing Order & Spark Plug Wire Routing - 3.9L V8

G00067171

Courtesy of LAND ROVER NORTH AMERICA, INC.
