Home >> Kia >> 2025 >> Soul GT Line >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Engine And Transaxle Assembly (R&I) >> Engine Mounting >> Components And Components Location >> Components

Components And Components Location: Components

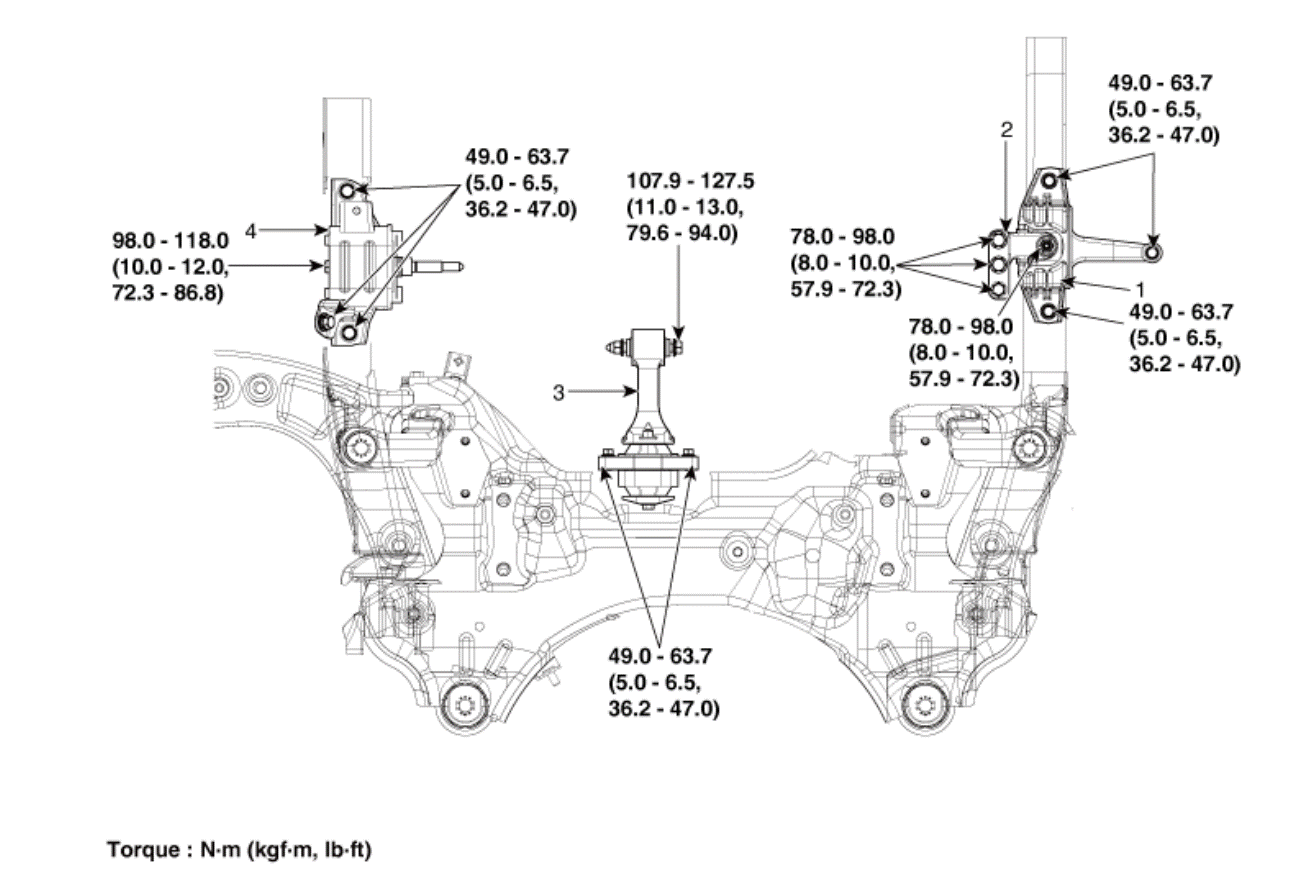

Fig 1: Engine Mounting Components Location With Torque Specifications

G15694210

Courtesy of KIA MOTORS AMERICA, INC.
