Components Location

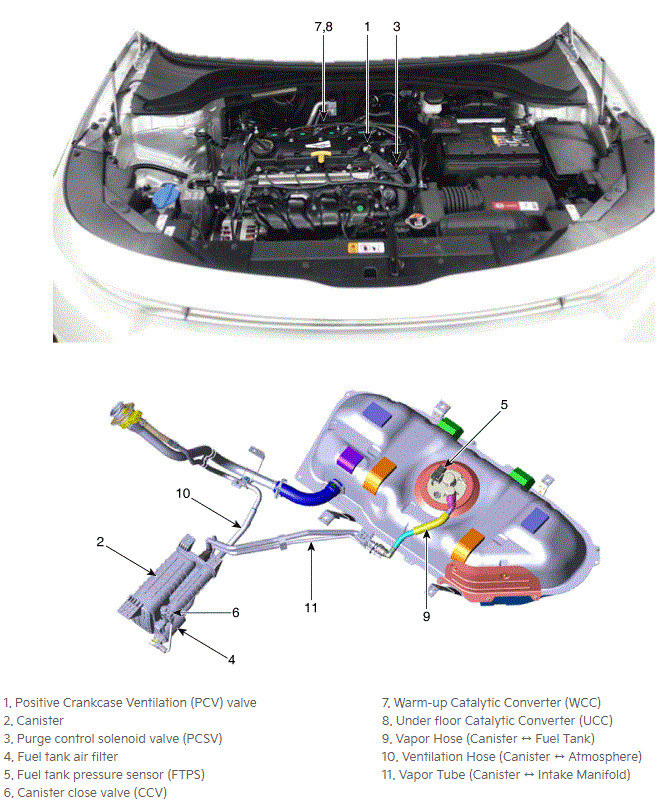

G15694426

Courtesy of KIA MOTORS AMERICA, INC.

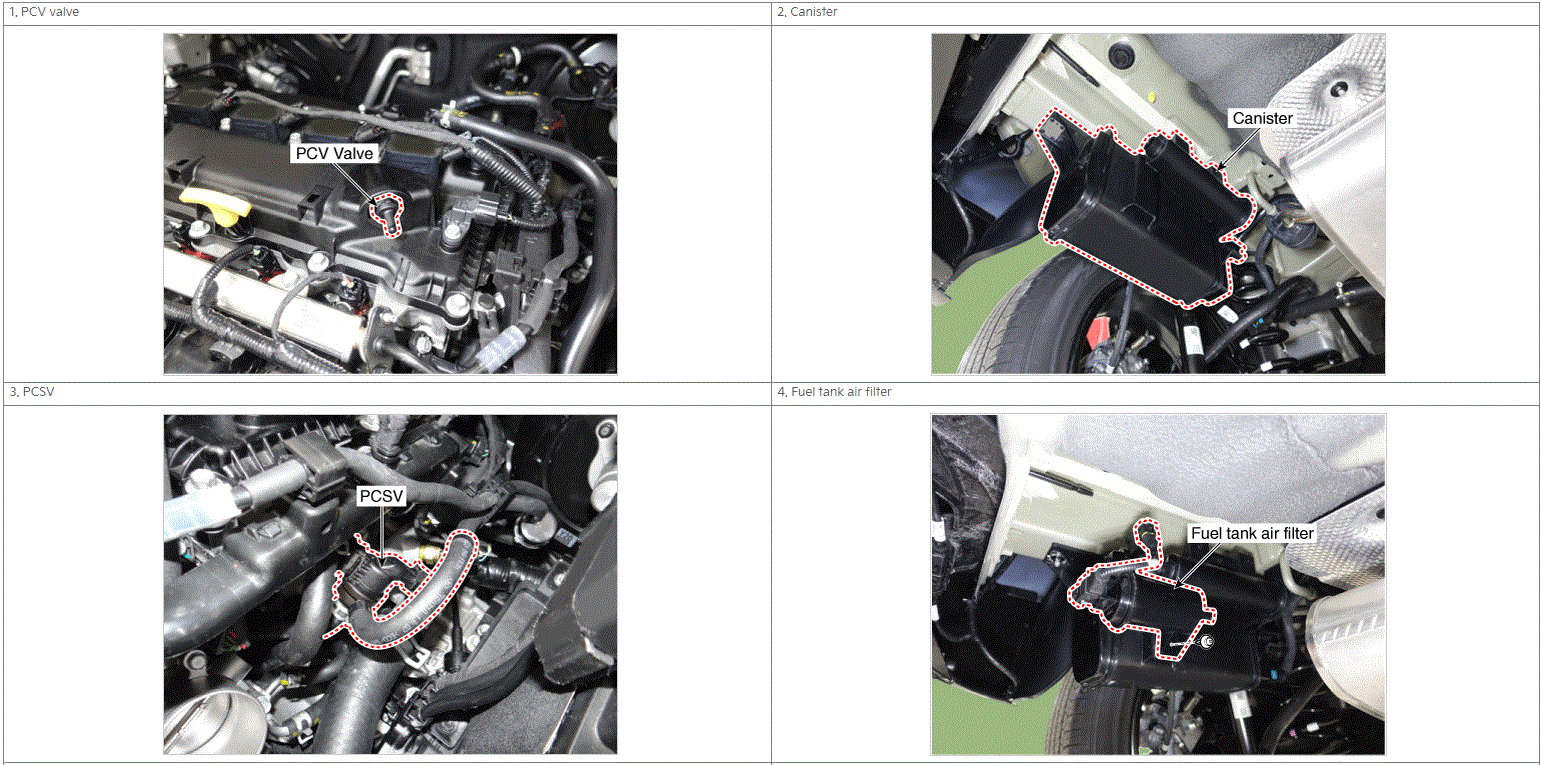

G15694427

Courtesy of KIA MOTORS AMERICA, INC.

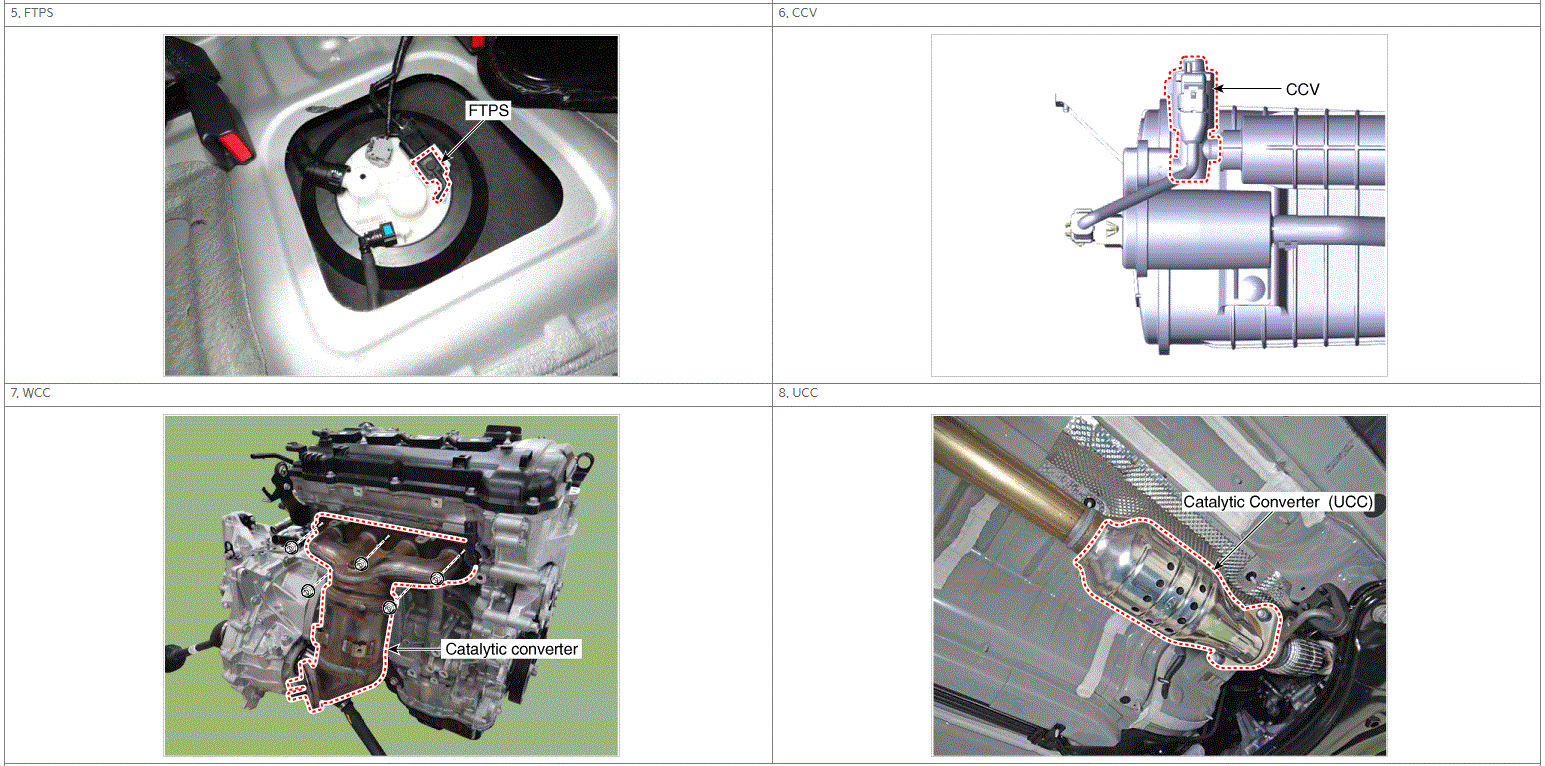

G00662650

Courtesy of KIA MOTORS AMERICA, INC.

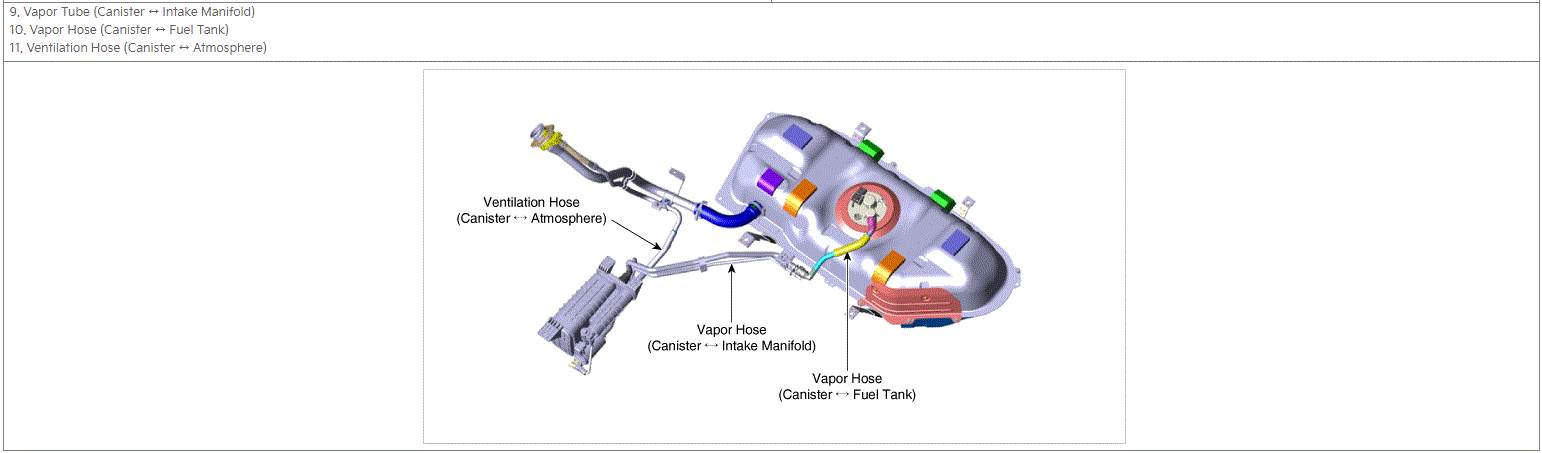

G00662651

Courtesy of KIA MOTORS AMERICA, INC.
