Inspection Procedure

  1. Check related fuse(s) or relay(s).
  2. Check 12V battery terminals and charge status.

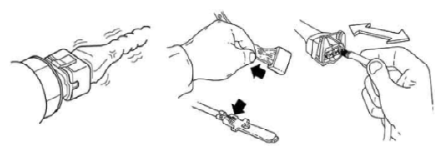

  3. Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
    G16094487Courtesy of KIA MOTORS AMERICA, INC.

    Good

    • Go to "CIRCUIT INSPECTION" procedure.

    No Good

    • Repair or replace as necessary, Go to "VERIFICATION OF REPAIR" procedure.
