Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  2. Vehicle driving status
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.

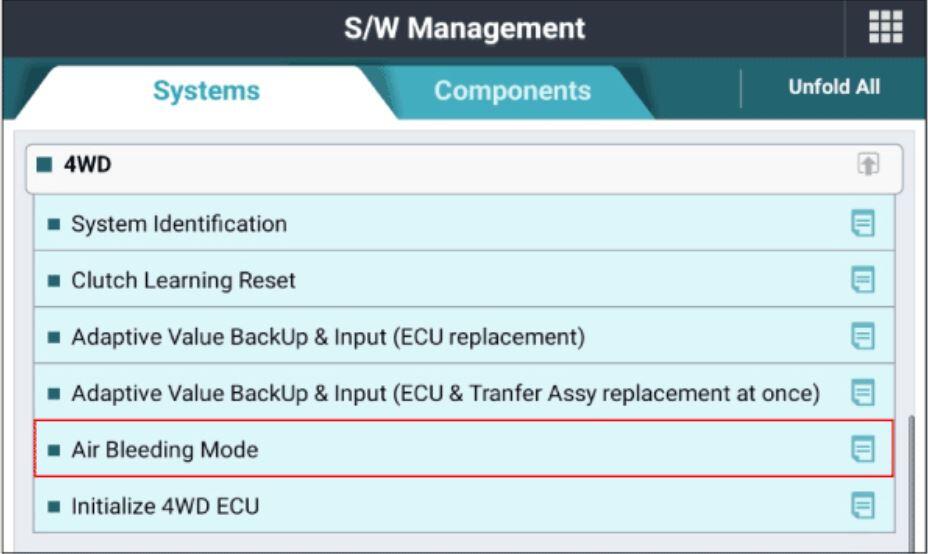

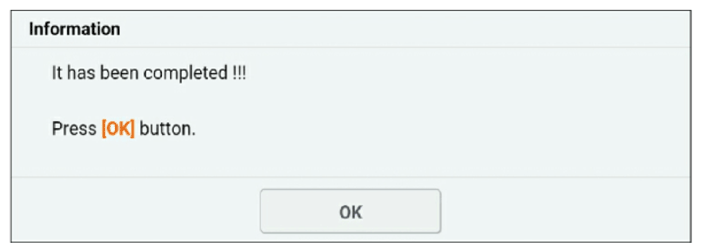

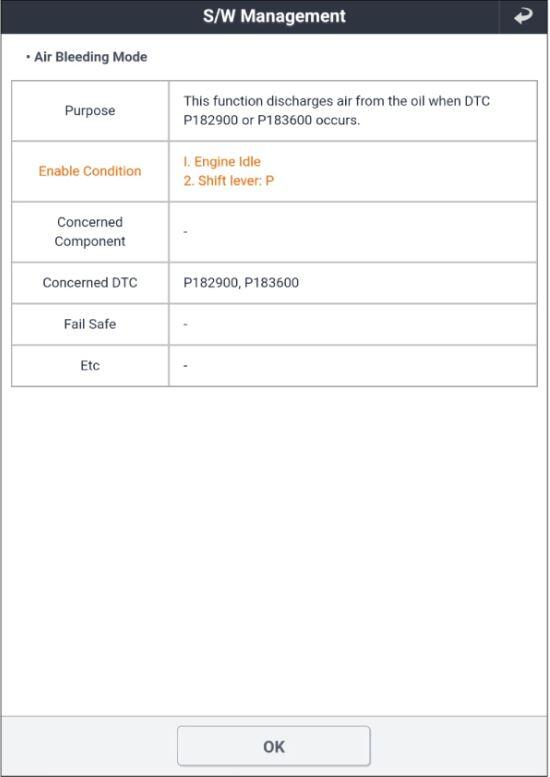

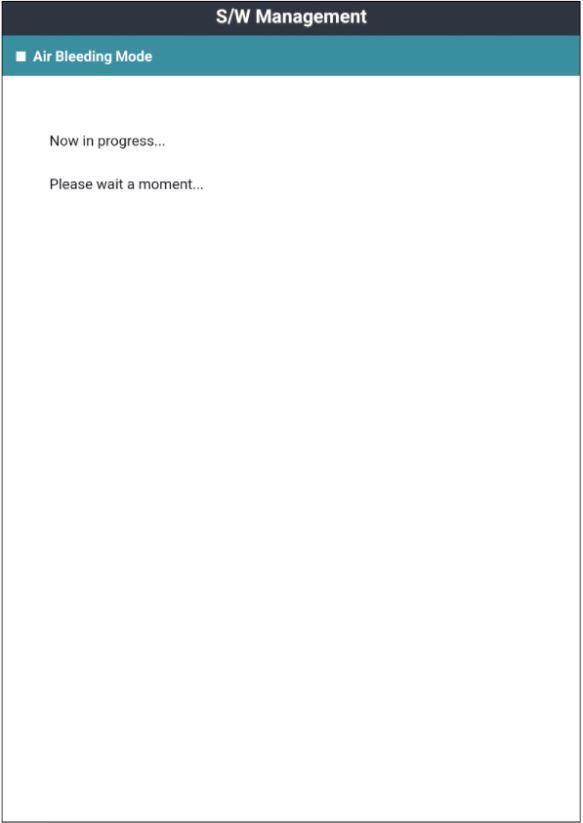

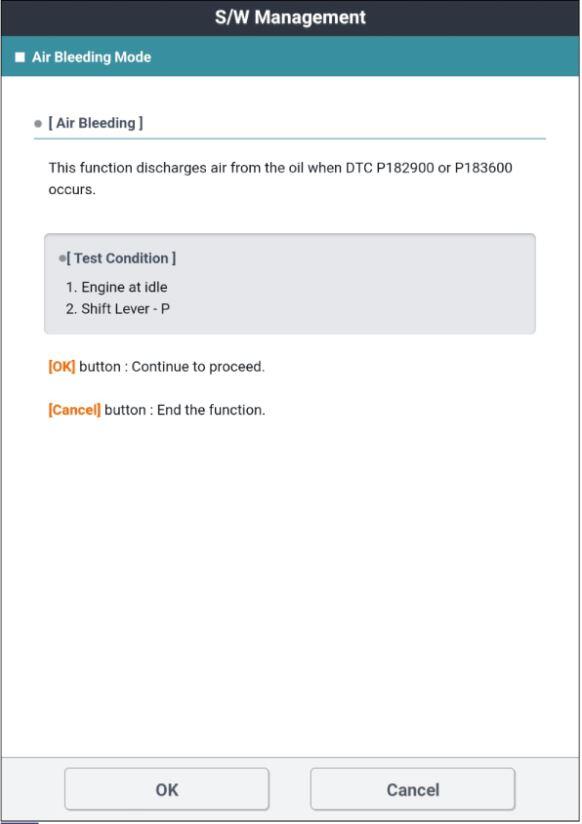

 Fig.1 to 5

Fig.1 to 5, Air bleed mode

G00675854Courtesy of KIA MOTORS AMERICA, INC.
G00675855Courtesy of KIA MOTORS AMERICA, INC.
G00675856Courtesy of KIA MOTORS AMERICA, INC.
G00675857Courtesy of KIA MOTORS AMERICA, INC.
G16466669Courtesy of KIA MOTORS AMERICA, INC.
