Home >> Kia >> 2025 >> Seltos X-Line >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis - 2.0L (4 Of 5) >> DTC P2128-00: Accelerator Position Sensor 2 Signal Circuit High Input >> Wiring Inspection >> Circuit Inspection >> Notes

Circuit Inspection: Notes

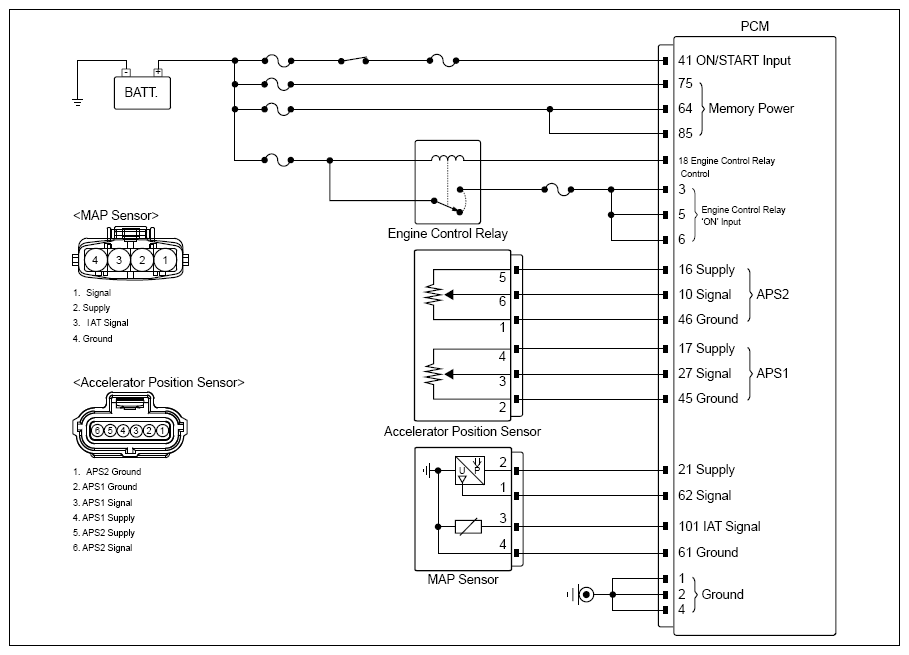

G16436930Courtesy of KIA MOTORS AMERICA, INC.

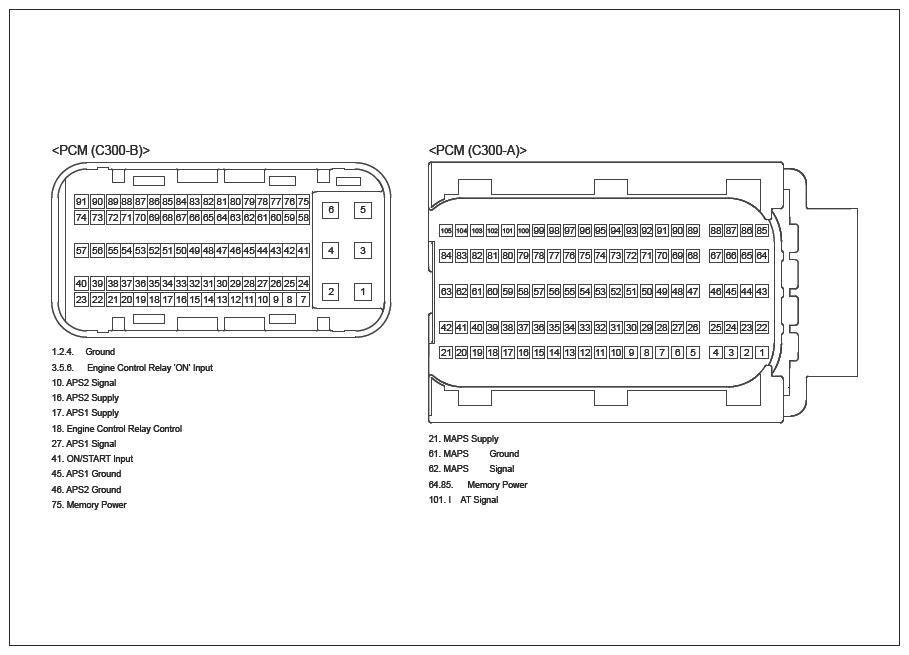

G16436931Courtesy of KIA MOTORS AMERICA, INC.
