Diagnostic Flow Chart

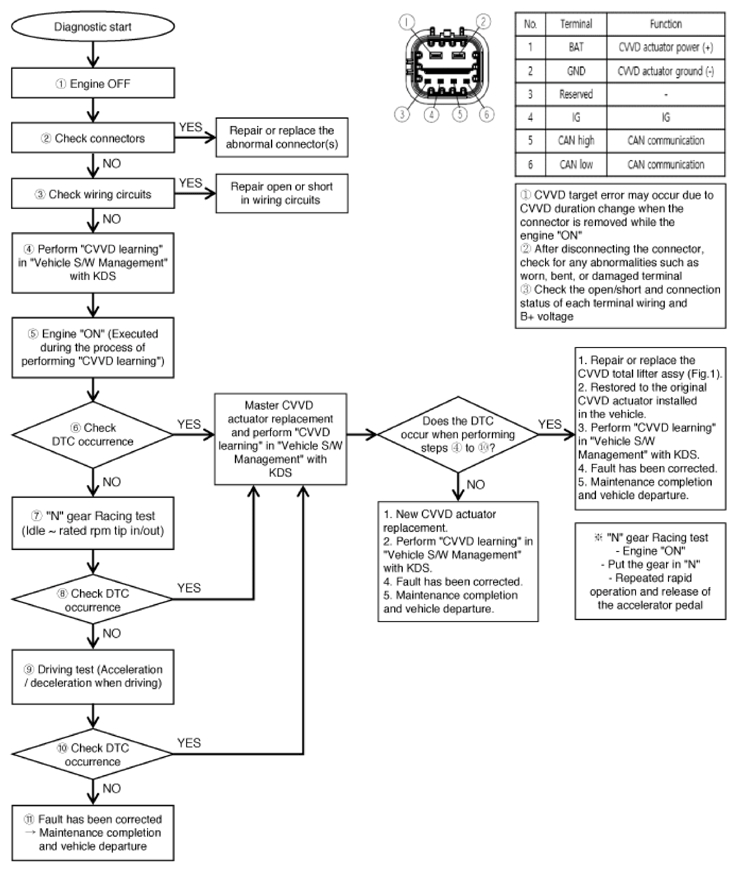

G16436674Courtesy of KIA MOTORS AMERICA, INC.

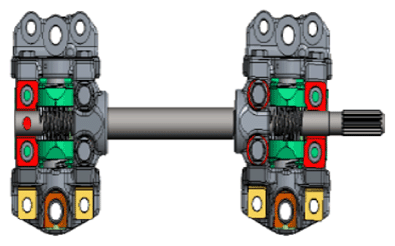

G16436675Courtesy of KIA MOTORS AMERICA, INC.
