Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 7

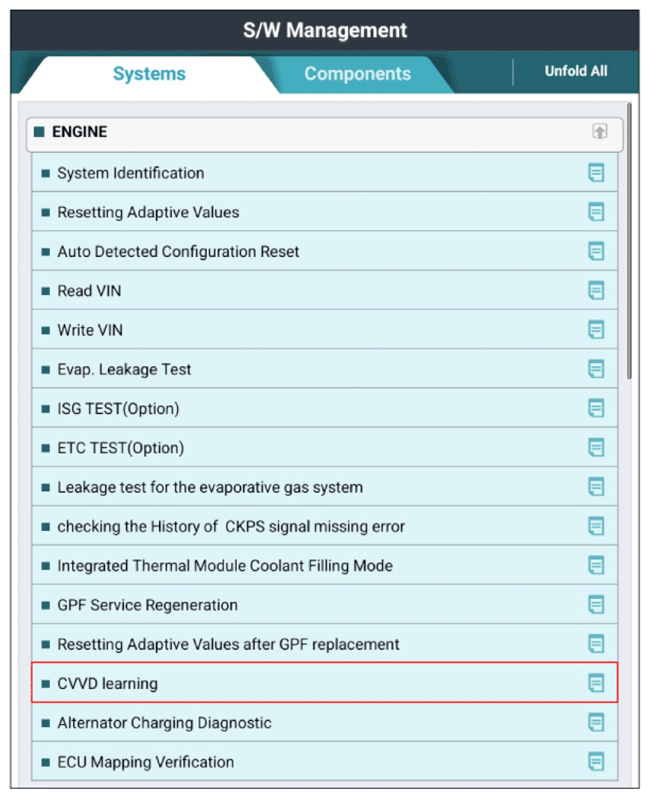

G16436687Courtesy of KIA MOTORS AMERICA, INC.

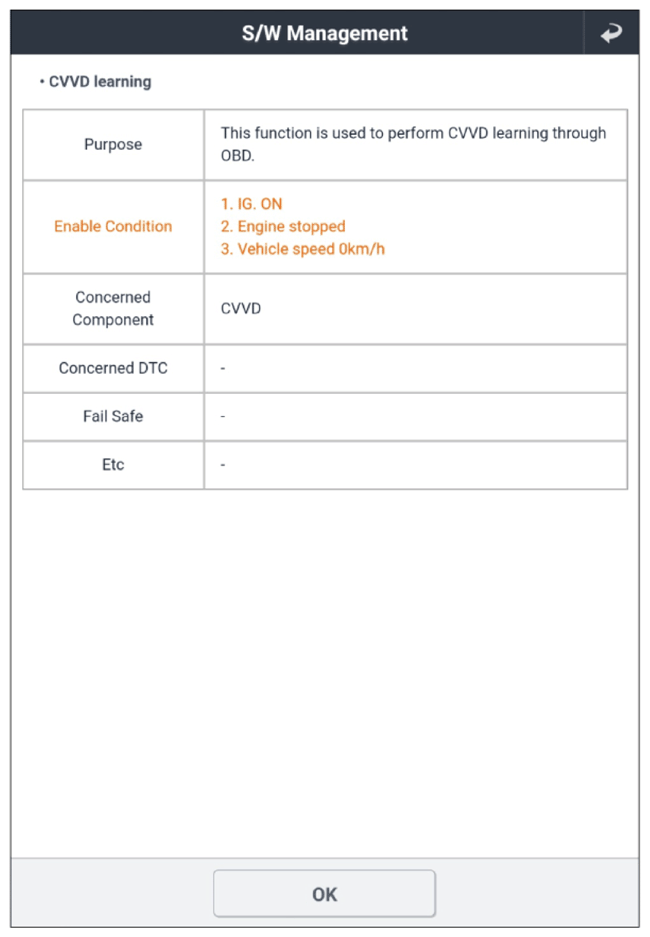

G16436688Courtesy of KIA MOTORS AMERICA, INC.

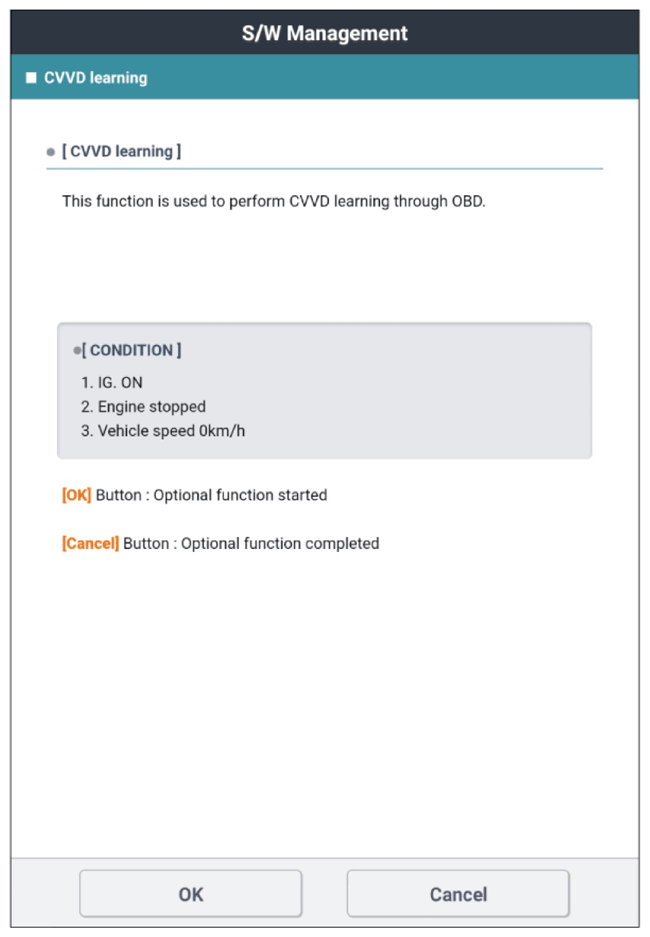

G16436689Courtesy of KIA MOTORS AMERICA, INC.

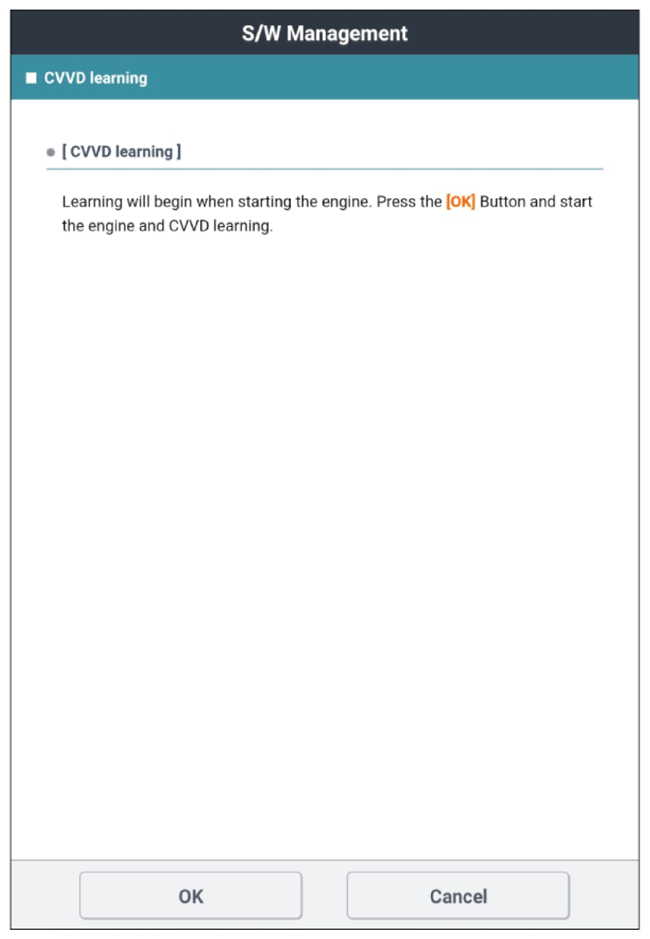

G16436690Courtesy of KIA MOTORS AMERICA, INC.

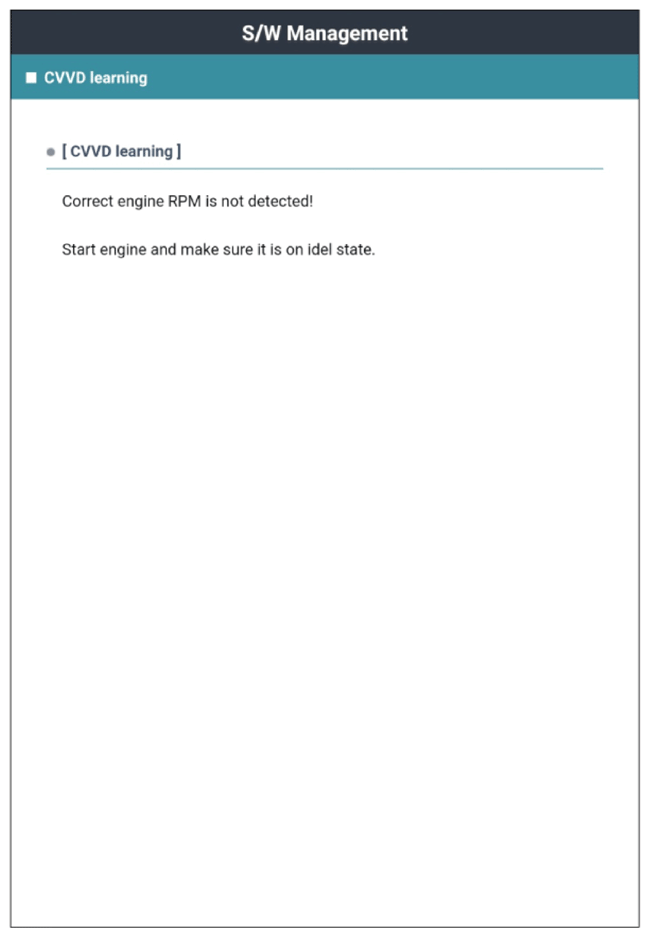

G16436691Courtesy of KIA MOTORS AMERICA, INC.

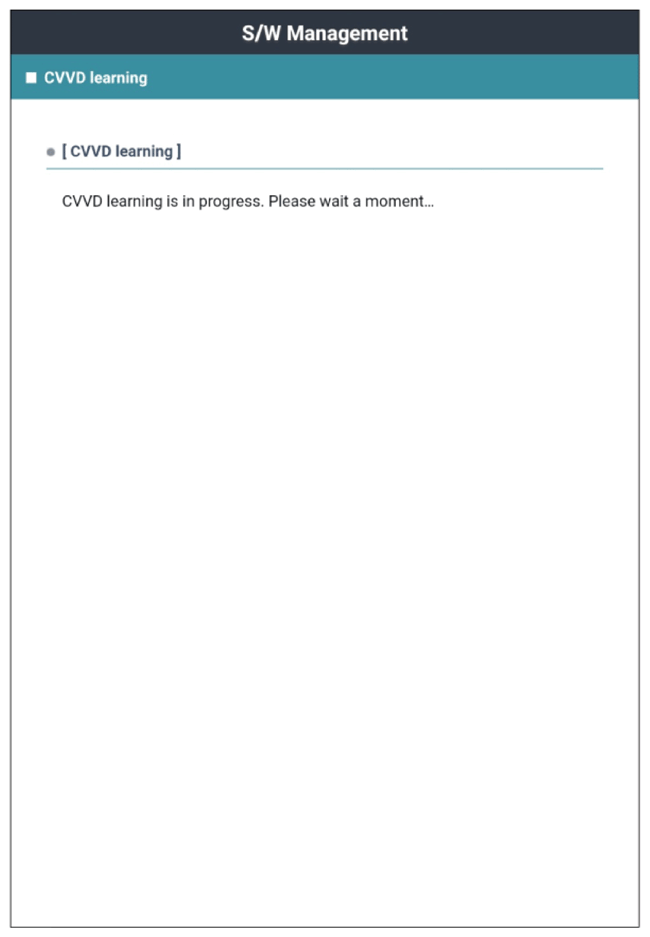

G16436692Courtesy of KIA MOTORS AMERICA, INC.

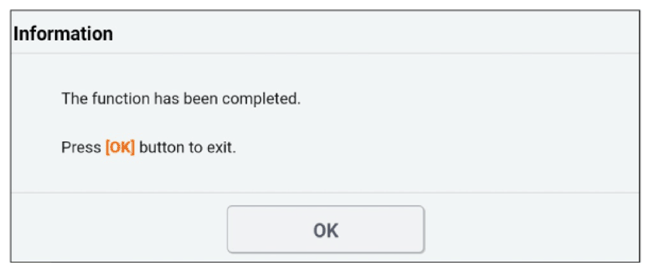

G16436693Courtesy of KIA MOTORS AMERICA, INC.
