Home >> Kia >> 2025 >> Seltos X-Line >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis - 1.6L (8 Of 8) >> DTC U0121-00: Lost Communication With Anti-Lock Brake System (ABS) Control Module >> Wiring Inspection >> Circuit Inspection >> Notes

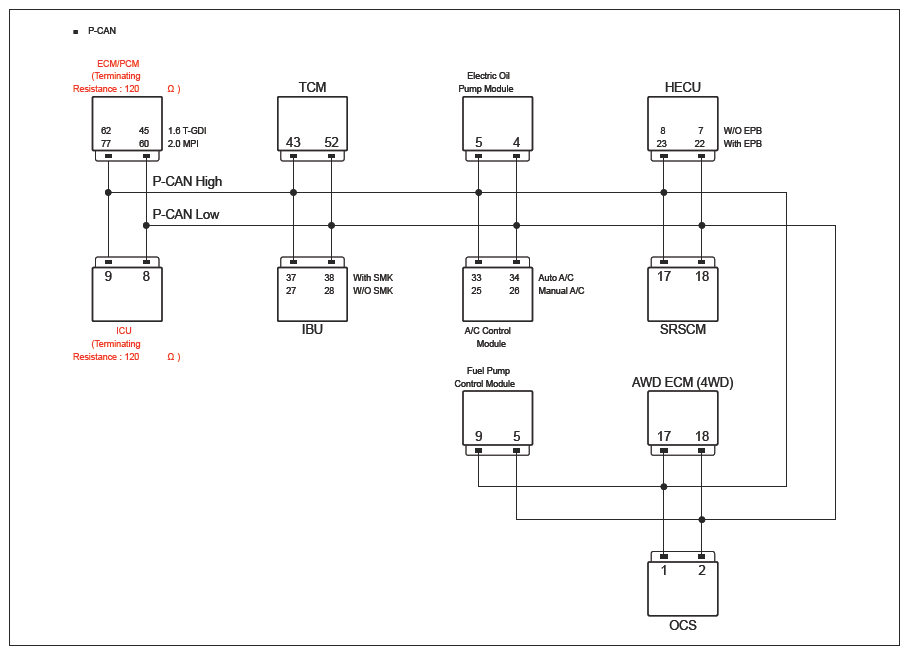

Circuit Inspection: Notes

G16436414Courtesy of KIA MOTORS AMERICA, INC.
