Circuit Inspection: Notes

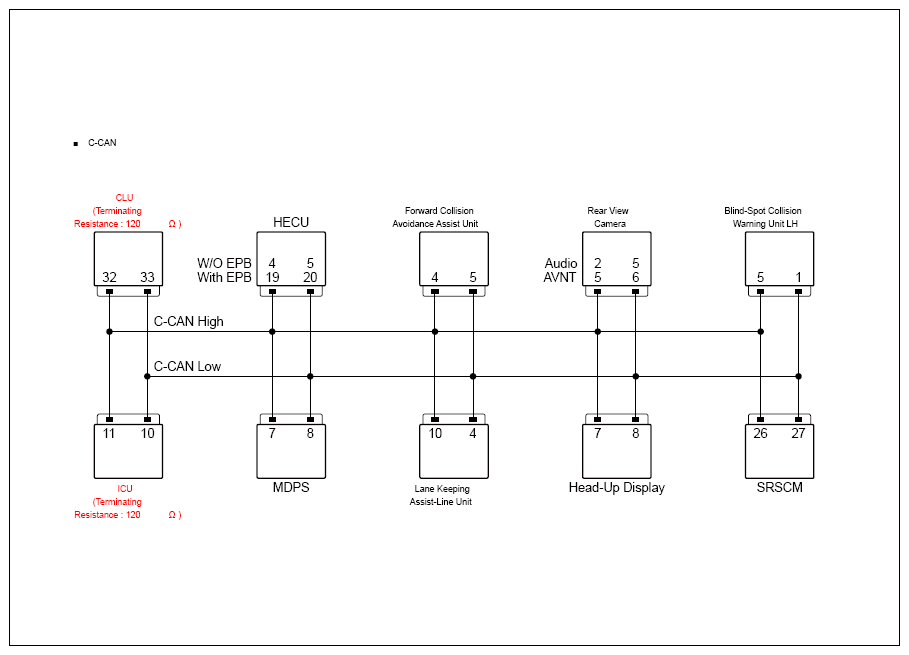

G16436387Courtesy of KIA MOTORS AMERICA, INC.

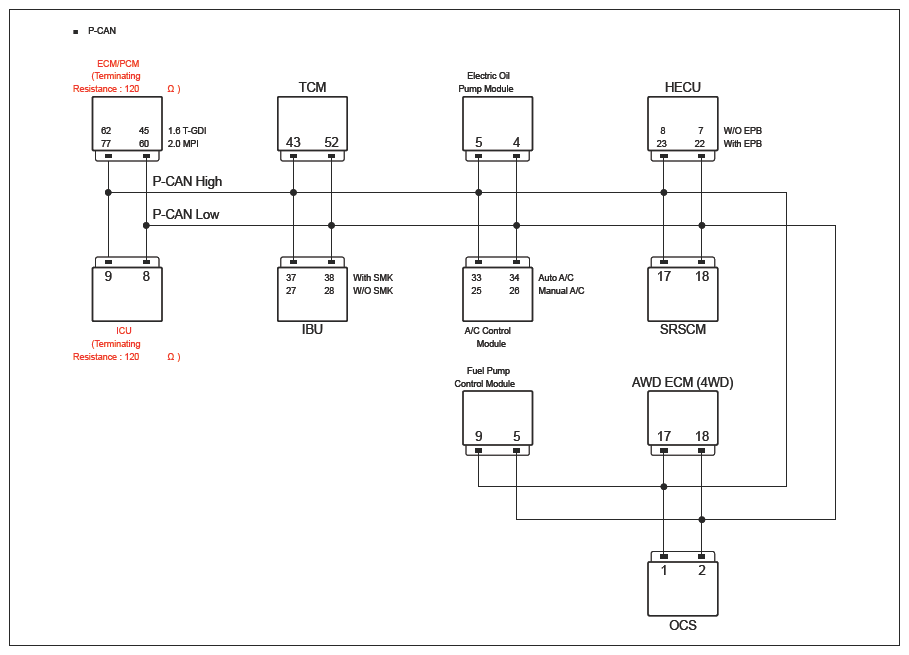

G16436388Courtesy of KIA MOTORS AMERICA, INC.
