Circuit Inspection

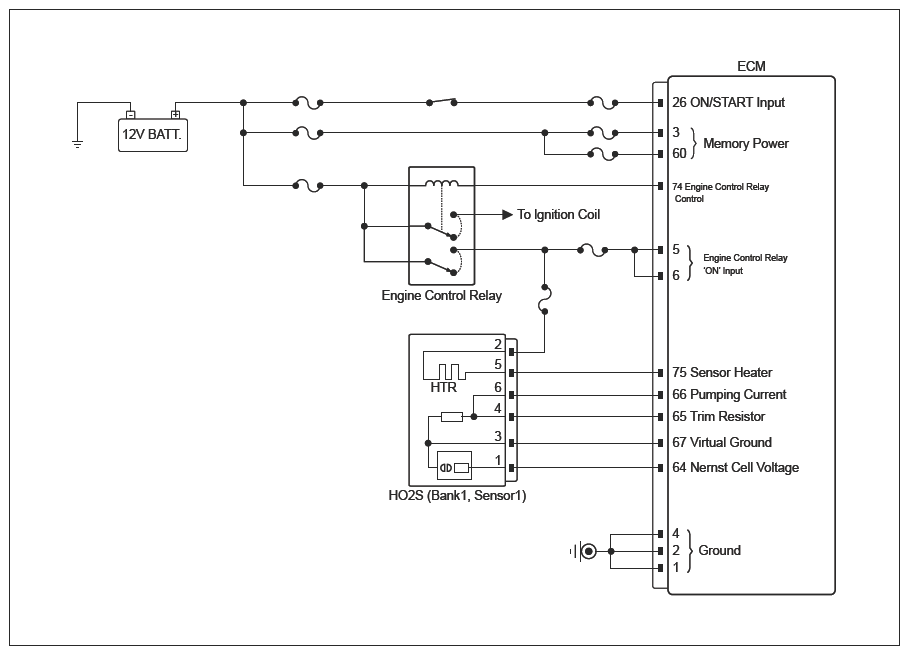

G16436272

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Item	Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Item	Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Power inspection (HO2S (Bank1, Sensor1) ↔ Chassis ground)	Connect the connector(s) HO2S (Bank1, Sensor1). Ignition "ON".	HO2S (Bank1, Sensor1) connector	2 (power)	Chassis ground	-	B+
Voltage inspection (HO2S (Bank1, Sensor1) ↔ Chassis ground)	Connect the connector(s) HO2S (Bank1, Sensor1). Ignition "ON".	HO2S (Bank1, Sensor1) connector	5 (control)	Chassis ground	-	B+
Power inspection (HO2S (Bank1, Sensor1) ↔ Chassis ground)	Disconnect the connector(s) HO2S (Bank1, Sensor1). Ignition "ON".	HO2S (Bank1, Sensor1) connector	2 (power)	Chassis ground	-	B+
Voltage inspection (HO2S (Bank1, Sensor1) ↔ Chassis ground)	Disconnect the connector(s) HO2S (Bank1, Sensor1). Ignition "ON".	HO2S (Bank1, Sensor1) connector	5 (control)	Chassis ground	-	Approx. 3.5V
Short in circuit inspection (HO2S (Bank1, Sensor1) ↔ Chassis ground)	Ignition "OFF". Disconnect the connector(s) HO2S (Bank1, Sensor1).	HO2S (Bank1, Sensor1) connector	2 (power)	Chassis ground	-	∞ (infinity)Ω
		HO2S (Bank1, Sensor1) connector	5 (control)	Chassis ground	-	∞ (infinity)Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then, Go to "VERIFICATION OF REPAIR " procedure.
