Diagnostic Flow Chart

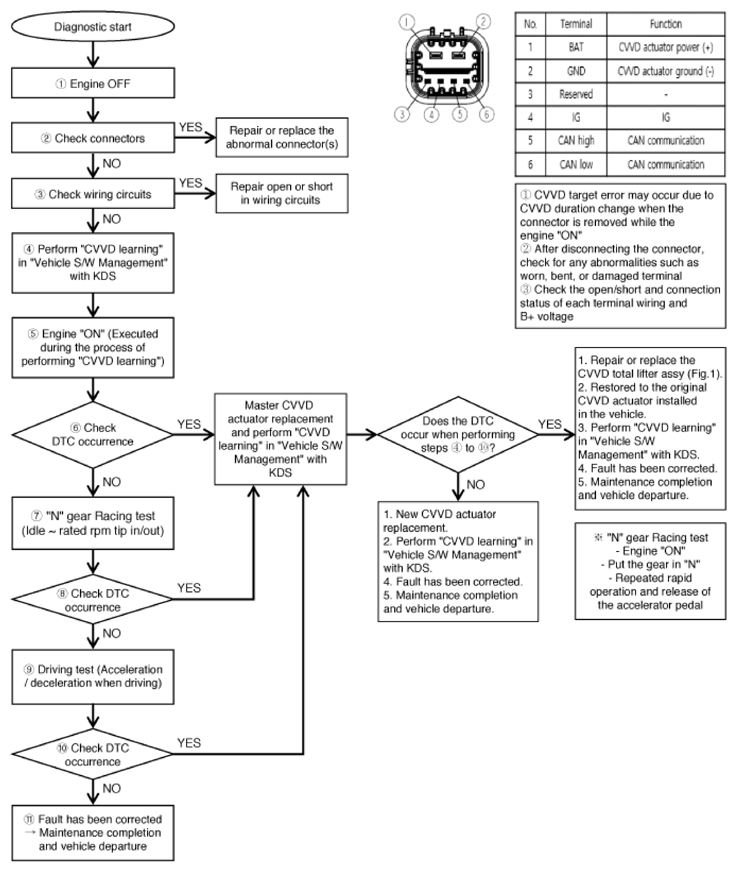

G16435666Courtesy of KIA MOTORS AMERICA, INC.

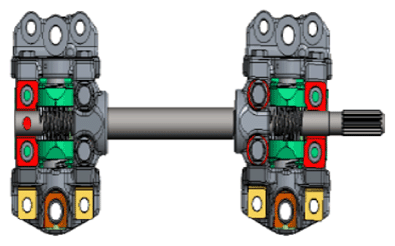

G16435667Courtesy of KIA MOTORS AMERICA, INC.
