ISG OFF switch: Inspection

  1. Remove the side crash pad switch.

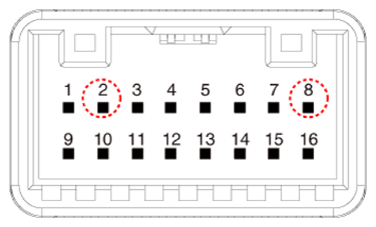

  2. After pushing the ISG OFF switch, check for continuity between the ground (pin 8) and signal (pin 2).
G16427166Courtesy of KIA MOTORS AMERICA, INC.
