Removal And Installation: Removal

Disconnect the battery negative (-) terminal.
Remove the front wheel and tires.
(Refer to Suspension System - " WHEEL ")
Remove the front wheel guard.
(Refer to Body - " FRONT WHEEL GUARD ")

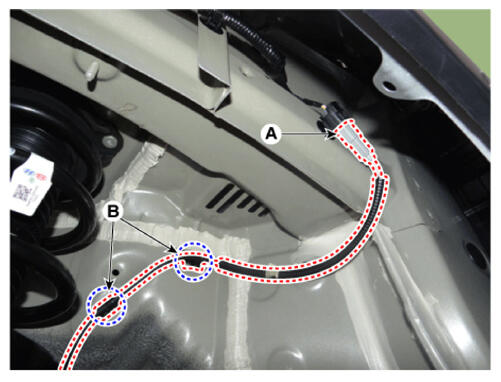

Disconnect the sensor connector (A) and remove the wiring fasteners (B).

Courtesy of KIA MOTORS AMERICA, INC.

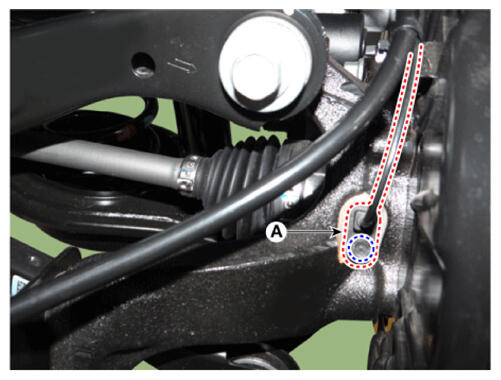

Remove the wheel speed sensor (A) after removing the bolt.
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

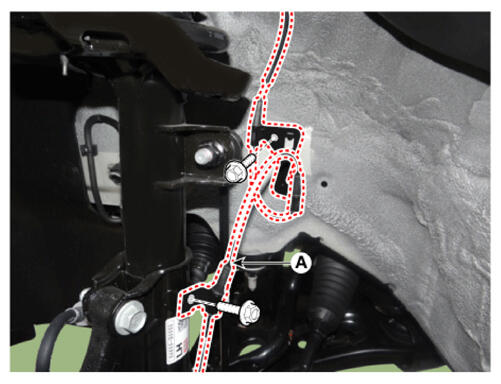

Remove the wheel speed sensor (A) after removing the bolts.
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
