Front View Camera: Removal

1. Perform the order below with the KDS before replacing the front view camera.

   (S/W Management → Front View Camera → System Identification)

   Information

   Refer to the KDS screen for operating conditions and details.

2. Disconnect the battery negative (-) terminal.

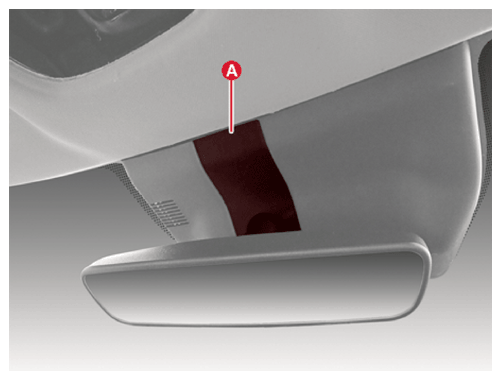

3. Remove the multi sensor blanking cover (A).

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

   Information

   IMPORTANT:

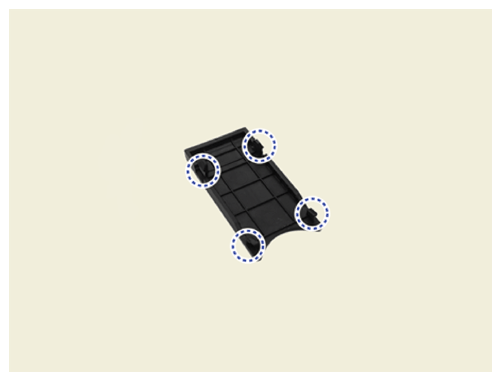

   Clip position:

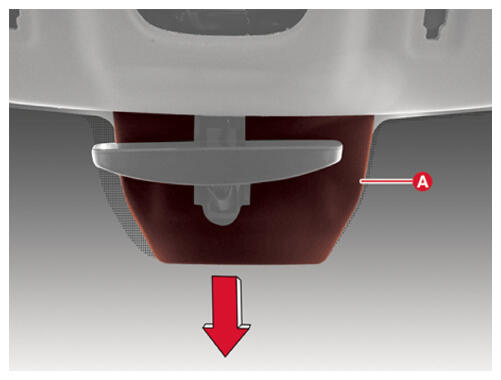

4. Remove the multi sensor cover (A) in the direction of the arrow.

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

   Information

   IMPORTANT:

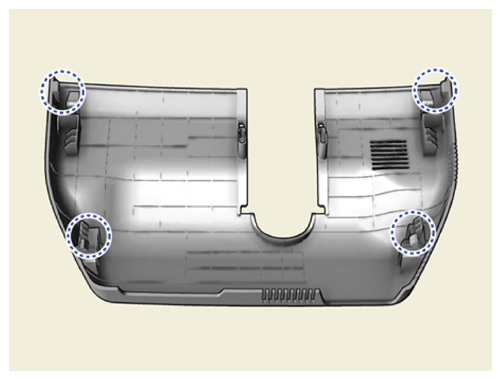

   Clip position:

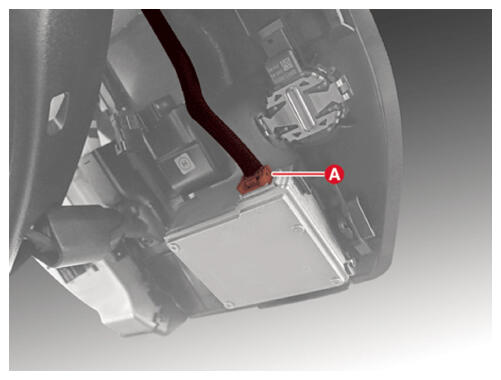

5. Disconnect the front view camera connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

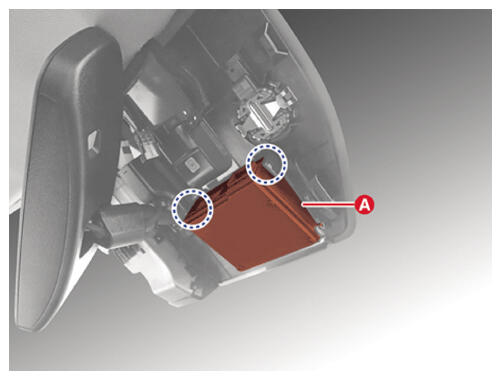

6. Remove the front view camera (A) by pulling both hooks.

Courtesy of KIA MOTORS AMERICA, INC.

Information

IMPORTANT:

Clip position:
