Front View Camera Service Point Target Auto Calibration (SPTAC)

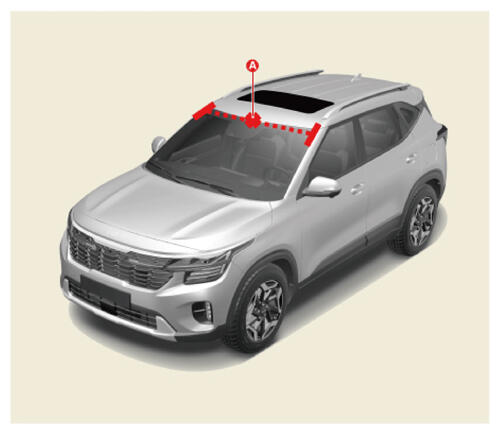

- Mark the center point (A) after measuring the distance on top of the windshield glass.

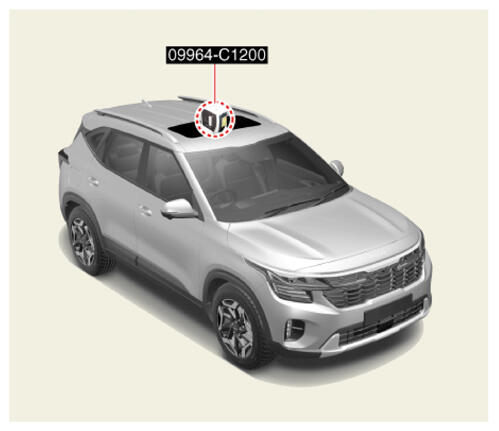

- Install the SCC setting beam (09964 - C1200) in the center of the roof above the windshield glass of the vehicle (same for both short and long distance calibrations).

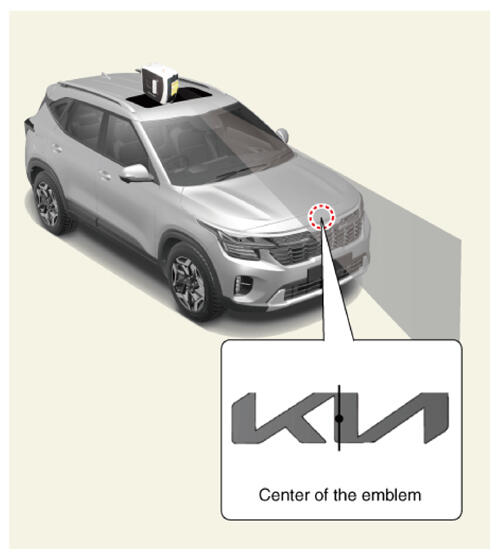

- Allow the beam of the SCC setting beam (09964 - C1200) to pass through the center of the emblem.
Information

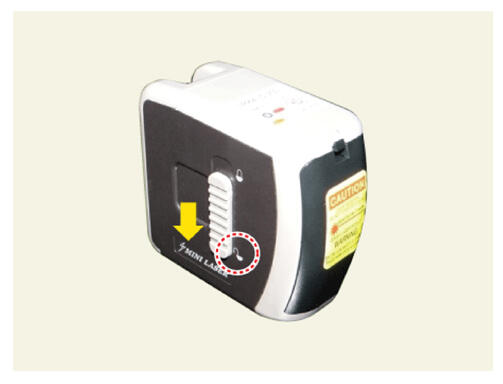

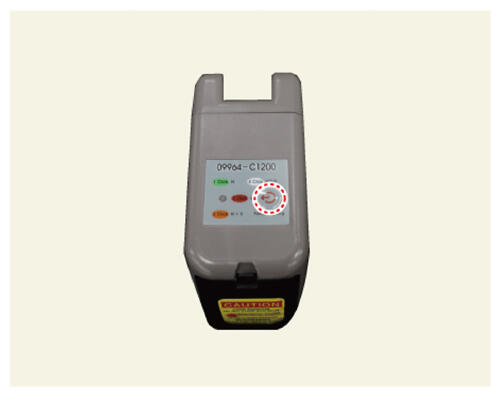

The level laser must be set to 'ON' and the holding (locking) function is not used.
- The height of the front view camera calibration target (09890 - 3V100) is adjusted to be 90 ± 2 cm (36 ± 0.8 in.) from the ground.

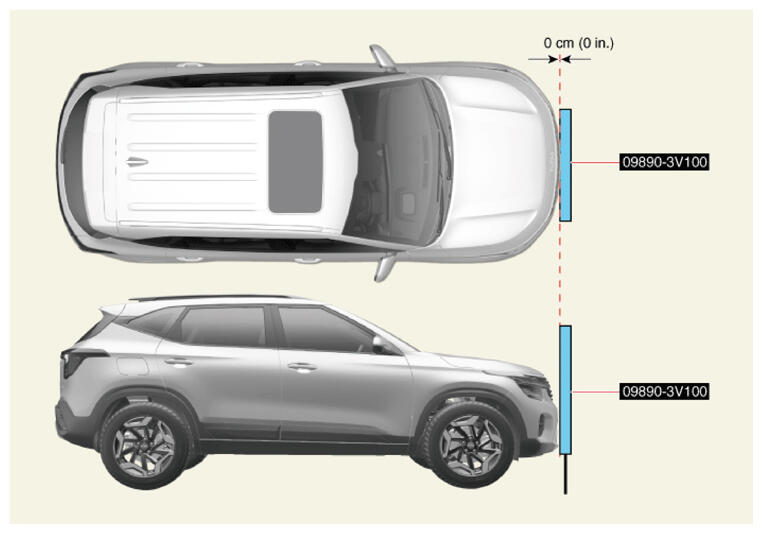

- Place the front view camera calibration target (09890 - 3V100) so that it maintains a distance of 0 cm (0 in.) from the bumper. [Maximum tolerance: 10 cm (4 in.)]

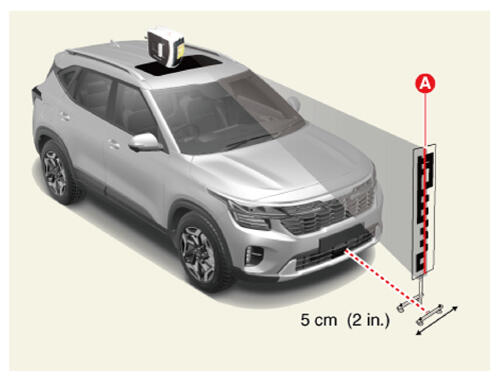

- Install the front view camera calibration target (09890 - 3V100) center (A) in line with the laser vertical line of the SCC setting beam (09964 - C1200). [Maximum tolerance: 5cm (2 in)]NOTE:

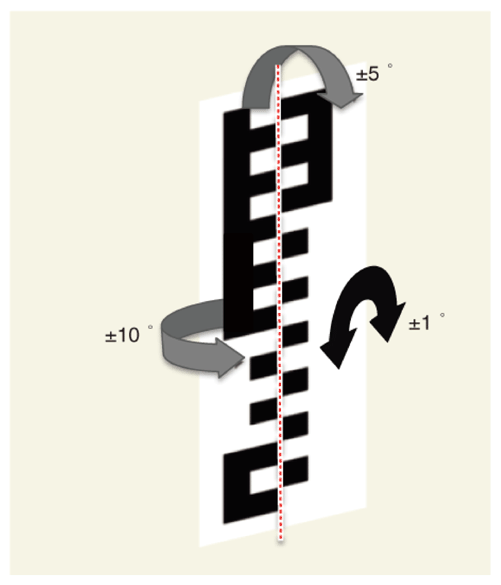

- Align the front view camera calibration target (09890 - 3V100) referring to the tolerance angle below.
- Tolerance is important and sensitive to floor conditions.
L/R torsion F/B gradient L/R gradient Tolerance angle ± 10° ± 5° ± 1° - Perform the order below with the KDS.
(S/W Management → Front View Camera → SPTAC Calibration)
Information
Refer to the KDS screen for operating conditions and details.
- The height of the front view camera calibration target (09890 - 3V100) is adjusted to be 90 ± 2 cm (36 ± 0.8 in.) from the ground.

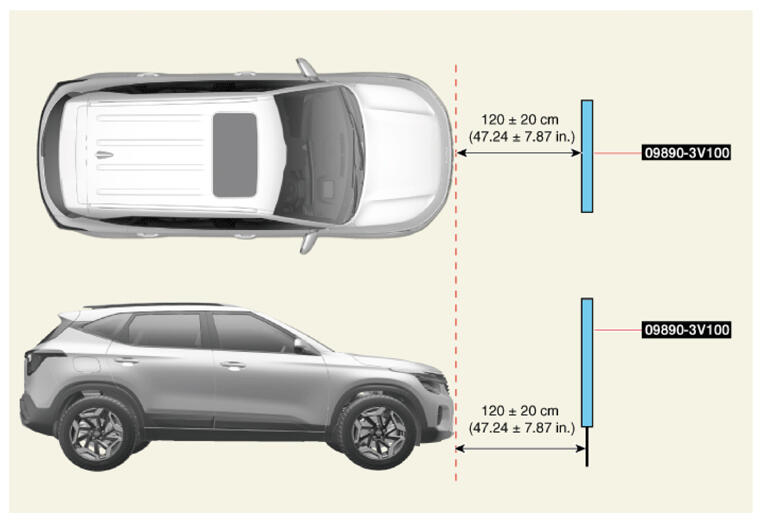

- Place the front view camera calibration target (09890 - 3V100) so that it maintains a distance of 120 cm (48 in.) from the bumper. (Maximum tolerance: 20 cm (8 in.))
- Install the front view camera calibration target (09890 - 3V100) center (A) in line with the laser vertical line of the SCC setting beam (09964 - C1200). [Maximum tolerance: 5cm (2 in)]NOTE:
- Align the front view camera calibration target (09890 - 3V100) referring to the tolerance angle below.
- Tolerance is important and sensitive to floor conditions.
L/R torsion F/B gradient L/R gradient Tolerance angle ± 10° ± 5° ± 1° - Perform the order below with the KDS.
(S/W Management → Front View Camera → SPTAC Calibration)
Information
Refer to the KDS screen for operating conditions and details.
- Check the DTC and warning lamp after erasing the DTC with the KDS.
