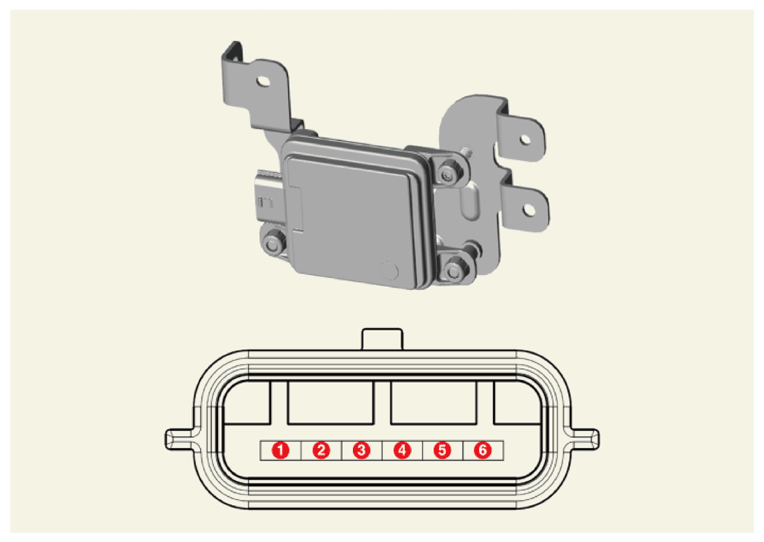

Connector And Terminal Function
Courtesy of KIA MOTORS AMERICA, INC.
Pin No
Connector
1
Ground (-)
2
L-CAN (High)
3
L-CAN (Low)
4
C-CAN (High)
5
C-CAN (Low)
6
IG
