Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.

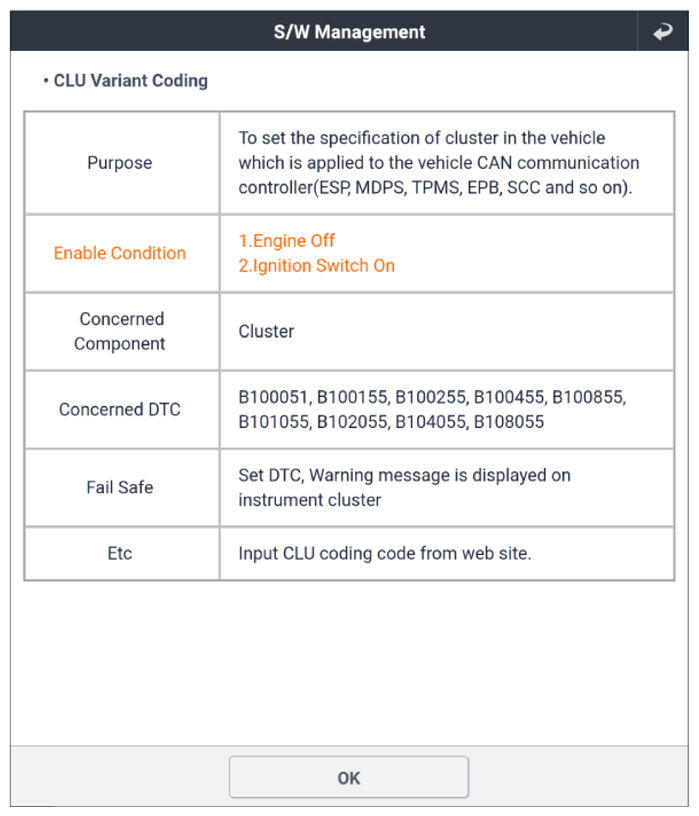

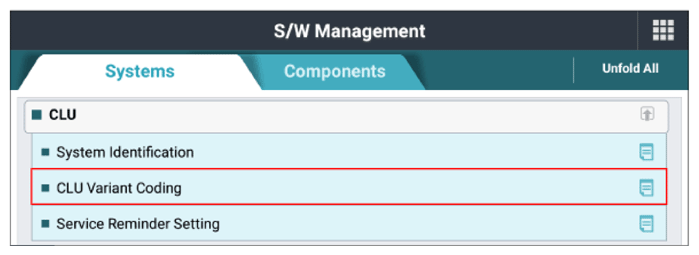

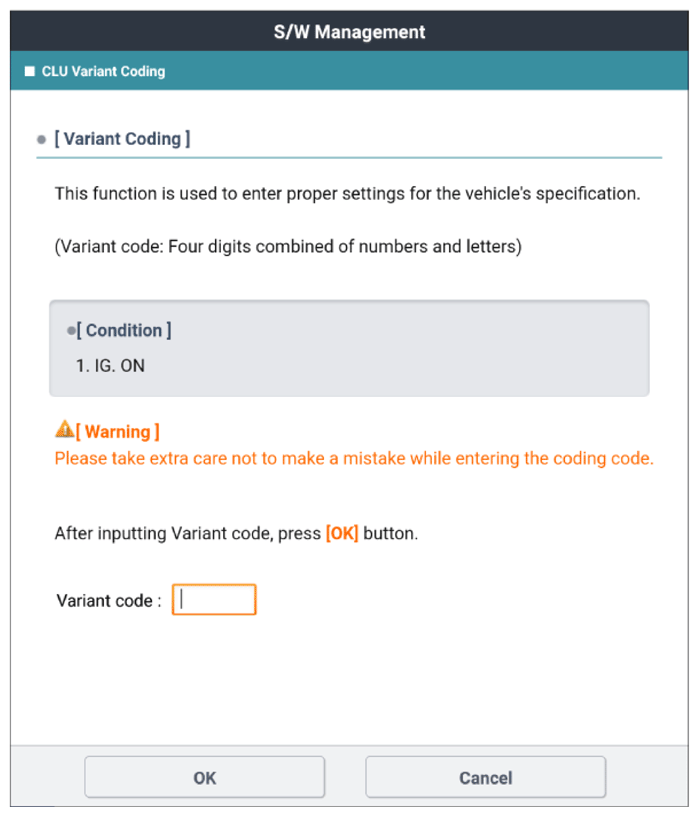

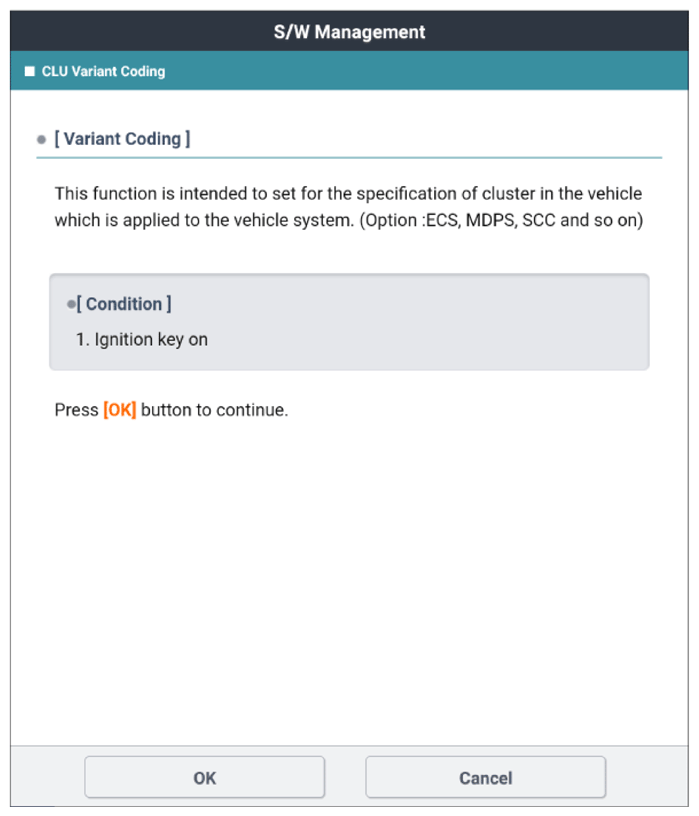

 Fig.1 to 5
G16429775Courtesy of KIA MOTORS AMERICA, INC.
G16429776Courtesy of KIA MOTORS AMERICA, INC.
G16429777Courtesy of KIA MOTORS AMERICA, INC.
G16429778Courtesy of KIA MOTORS AMERICA, INC.
G16429779Courtesy of KIA MOTORS AMERICA, INC.
