S/W management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Select the menu "S/W Management" with KDS.
  3. Perform "Adaptive Value Back-up & Input (ECU replacement)" in "S/W Management" with KDS.
  4. After this procedure, Go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 10
G15719405Courtesy of KIA MOTORS AMERICA, INC.

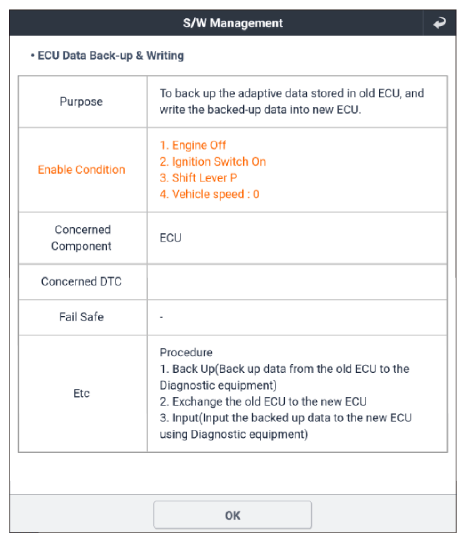

G15719406Courtesy of KIA MOTORS AMERICA, INC.

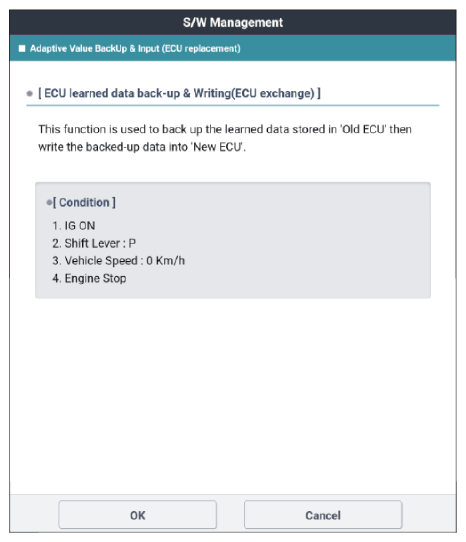

G15719407Courtesy of KIA MOTORS AMERICA, INC.

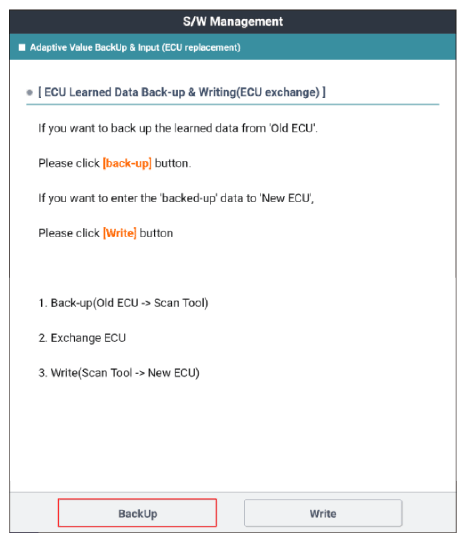

G15719408Courtesy of KIA MOTORS AMERICA, INC.

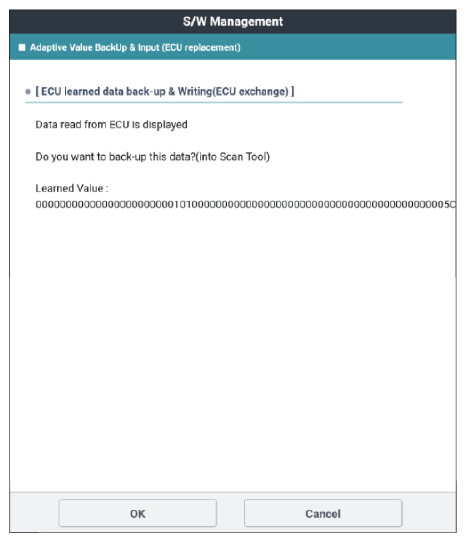

G15719409Courtesy of KIA MOTORS AMERICA, INC.

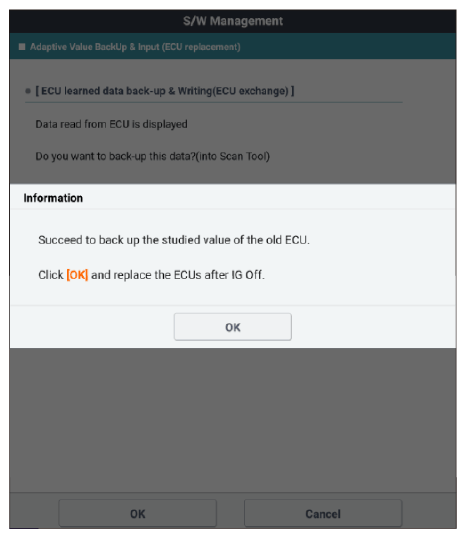

G15719410Courtesy of KIA MOTORS AMERICA, INC.

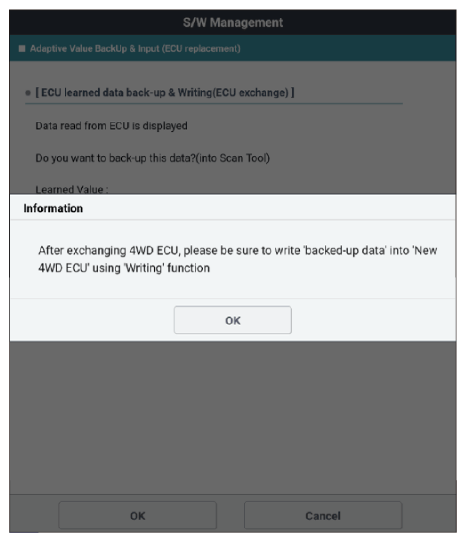

G15719411Courtesy of KIA MOTORS AMERICA, INC.

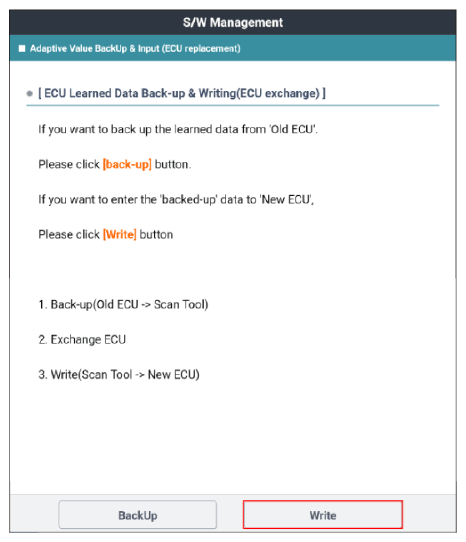

G15719412Courtesy of KIA MOTORS AMERICA, INC.

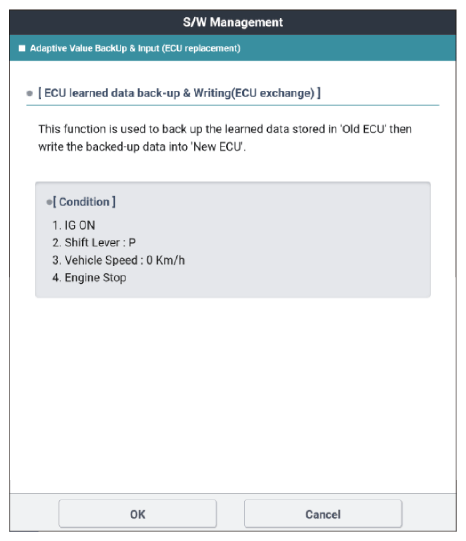

G15719413Courtesy of KIA MOTORS AMERICA, INC.

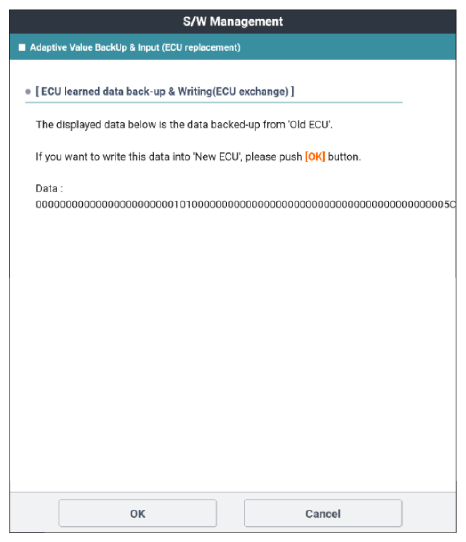

G15719414Courtesy of KIA MOTORS AMERICA, INC.
