Removal & Installation: Removal

NOTE:

When a DTC related to MDPS motor occurs, check the connectors and wiring. If no problem is found, replace the motor.
Be sure to check the last two digits of the constant in the barcode of new MDPS motor before replacing the motor.
Entering incorrect motor constant value may cause a serious problem in the MDPS.

Disconnect the battery negative terminal.
Turn the steering wheel so that the front wheels are facing straight ahead.
Remove the steering column shroud lower panel.
(Refer to Body - "STEERING COLUMN SHROUD PANEL ")
Remove the knee airbag (KAB) module.
(Refer to Restraint - "KNEE AIRBAG (KAB) MODULE ")

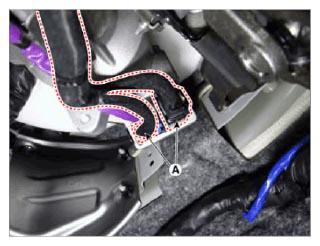

Disconnect the MDPS connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

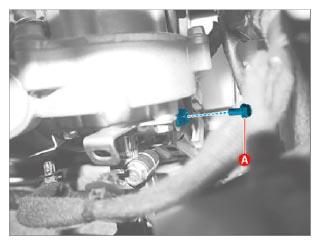

Remove the steering column mounting bolt (A).
Tightening torque:

53.9 - 58.8 N.m (5.5 - 6.0 kgf.m, 39.8 - 43.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

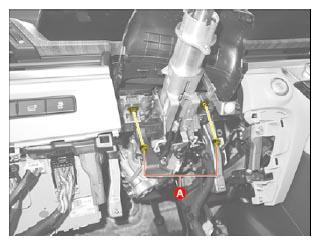

Separate the steering column & shaft. after removing the steering column upper mounting nuts (A).
Tightening torque:

24.5 - 29.4 N.m (2.5 - 3.0 kgf.m, 18.1 - 21.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

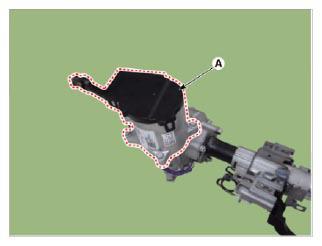

Remove the power pack assembly (A).
Tightening torque:

15.0 - 22.0 N.m (1.5 - 2.5 kgf.m, 11.1 - 16.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

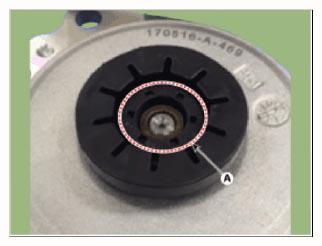

Check the axial damper (A) whether it is assembled, before installing the new MDPS motor.
NOTE: Check the axial damper (A) whether it is assembled, before installing the new MDPS motor.

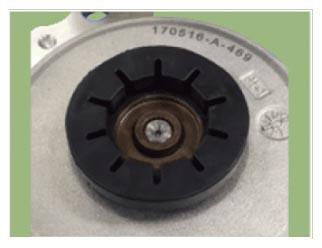

Before assembly	After assembly
Courtesy of KIA MOTORS AMERICA, INC.	Courtesy of KIA MOTORS AMERICA, INC.
