Component Inspection
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

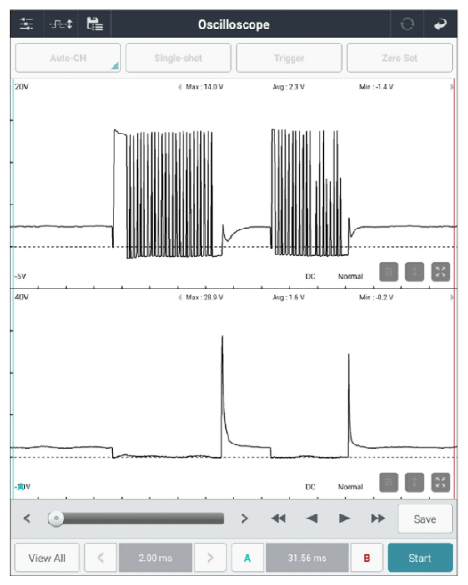

High pressure fuel pump connector | 2 (high) | Chassis ground | - | Fig.1 |
| High pressure fuel pump connector | 1 (low) | Chassis ground | - | ||
|

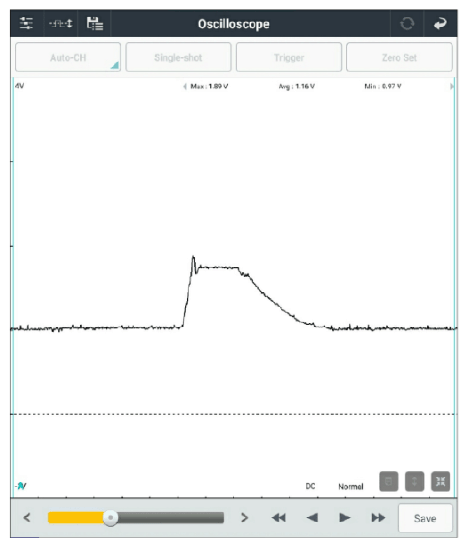

FRPS harness connector | 2 (signal) | Chassis ground | - | Fig.2 |
Good
- Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the fuel rail pressure sensor or high pressure fuel pump and Go to "VERIFICATION OF REPAIR " procedure.
