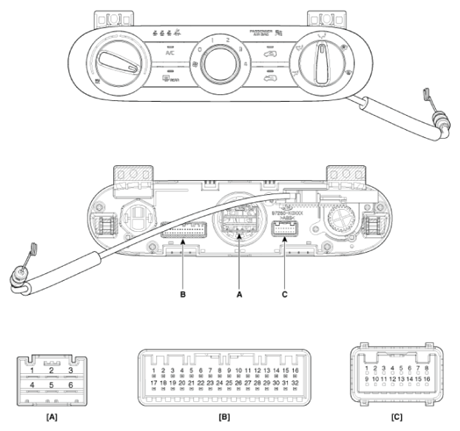

Components And Components Location: Components
WARNING: This page is about a different car, the 2025 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Function | ||
|---|---|---|---|
| Connector A | Connector B | Connector C | |
| 1 | Low | Battery (+) | SBR Passenger |
| 2 | Common | ISG B+ | SBR 2 Row Left |
| 3 | Ground | ILL+ (TAIL) | SBR 2 Row Middle |
| 4 | Middle Low | Sensor REF (+5V) | SBR 2 Row Right |
| 5 | Middle High | Mode control actuator (Feedback) | PAB IGN1 |
| 6 | High | - | PAB Cut off Signal |
| 7 | - | Intake actuator (Feedback) | PAB on Signal |
| 8 | EVAP sensor (+) | - | |
| 9 | AMB sensor (+) | - | |
| 10 | Mode control actuator (Vent) | PTC Relay 1 | |
| 11 | Mode control actuator (Def) | PTC Relay 2 | |
| 12 | Heated glass (IND) | - | |
| 13 | Heated glass (SW) | - | |
| 14 | Intake actuator (Fresh) | - | |
| 15 | Intake actuator (Recirculation) | - | |
| 16 | HTD | Ground | |
| 17 | Rear defog switch | - | |
| 18 | Max blower on signal | ||
| 19 | Blower on signal to common | ||
| 20 | ILL- (RHEO) | ||
| 21 | IGN2 | ||
| 22 | IGN1 | ||
| 23 | P_CAN (High) | ||
| 24 | P_CAN (Low) | ||
| 25 | - | ||
| 26 | - | ||
| 27 | - | ||
| 28 | - | ||
| 29 | ECV (+) | ||
| 30 | ECV (-) | ||
| 31 | Sensor ground | ||
| 32 | Ground | ||
