Components And Components Location: Components
WARNING: This page is about a different car, the 2025 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

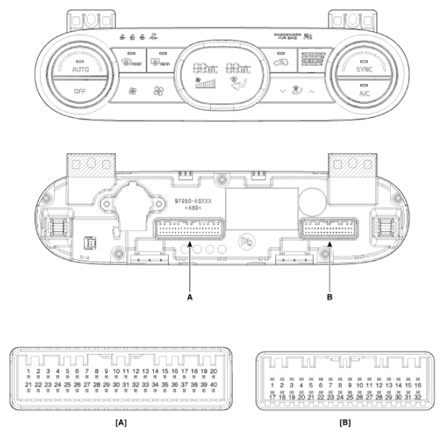

| Pin | Function | |
|---|---|---|
| Connector A | Connector B | |
| 1 | Battery (+) | Temperature actuator feedback [Passenger] |
| 2 | ISG B+ | Temperature actuator (Cool) [Passenger] |
| 3 | ILL + (Tail) | Temperature actuator (Warm) [Passenger] |
| 4 | Sensor REF (+5V) | - |
| 5 | Mode control actuator (Feedback) | Heated glass IND |
| 6 | Temperature actuator (feedback) | Heated glass SW |
| 7 | Intake actuator (Feedback) | - |
| 8 | EVA sensor (+) | Blower PWM (INH) |
| 9 | AMB sensor (+) | Blower PWM (IS) |
| 10 | Mode control actuator (Vent) | Blower PWM (IN) |
| 11 | Mode control actuator (Def) | - |
| 12 | Temperature actuator (Cool) [Driver] | - |
| 13 | Temperature actuator (Warm) [Driver] | - |
| 14 | Intake actuator (Fresh) | - |
| 15 | Intake actuator (Recirculation) | - |
| 16 | HTD | - |
| 17 | Rear defog switch | PAB IGN 1 |
| 18 | - | PAB Cut off Signal |
| 19 | - | PAB on Signal |
| 20 | ILL- (RHEO) | - |
| 21 | IGN 2 | - |
| 22 | IGN 1 | - |
| 23 | Blower motor (+) | - |
| 24 | Photo sensor left (-) | - |
| 25 | Photo sensor right (+) | - |
| 26 | - | SBR Passenger |
| 27 | - | SBR 2 Row Left |
| 28 | - | SBR 2 Row Middle |
| 29 | - | SBR 2 Row Right |
| 30 | - | - |
| 31 | - | - |
| 32 | - | Ground |
| 33 | P_CAN (High) | |
| 34 | P_CAN (Low) | |
| 35 | FET (DRAIN F/B) | |
| 36 | FET (GATE) | |
| 37 | ECV (+) | |
| 38 | ECV (-) | |
| 39 | Sensor ground | |
| 40 | Ground | |
