Repair Procedures: Inspection
WARNING: This page is about a different car, the 2025 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

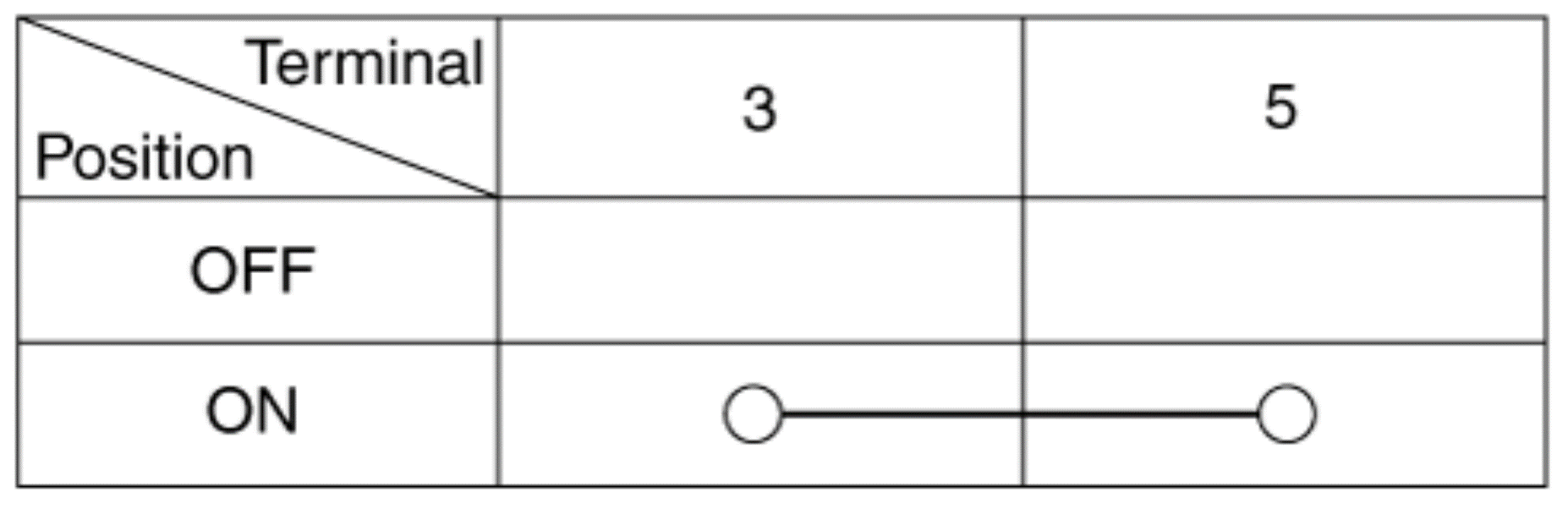

- Push the switch, then check for continuity between terminals.
 Courtesy of KIA MOTORS AMERICA, INC.
|

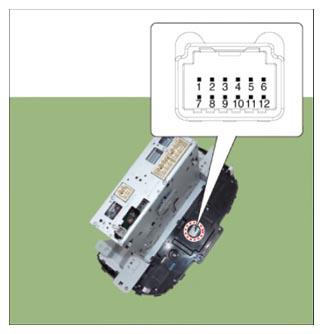

| Pin |
Function |
| 1 |
Ground |
| 2 |
- |
| 3 |
Hazard switch |
| 4 |
- |
| 5 |
Battery (+) |
| 6 |
- |
| 7 |
- |
| 8 |
- |
| 9 |
- |
| 10 |
- |
| 11 |
- |
| 12 |
Hazard indicator |
 Courtesy of KIA MOTORS AMERICA, INC.
|
