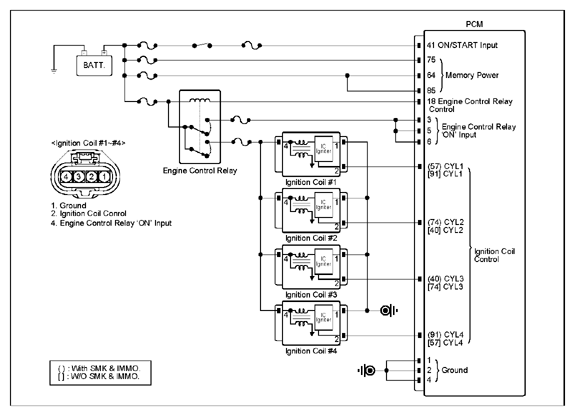

Circuit Inspection
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

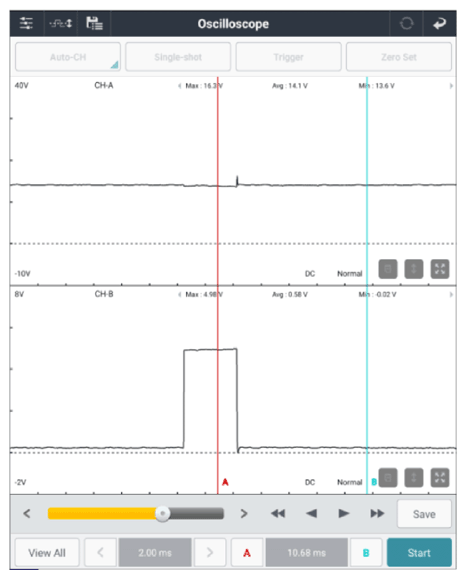

Ignition coils connector | 4 (power) | Chassis ground | - | Fig. 1 |
| Ignition coils connector | 2 (control) | Chassis ground | - | ||
Good
- go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the ignition coil and go to "VERIFICATION OF REPAIR " procedure.
