Monitor DTC Status

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Ignition "ON". Select correct vehicle model, year, and engine type with KDS. Select CAN related all system. Select "Fault Code Searching".	Fig.1 to 3

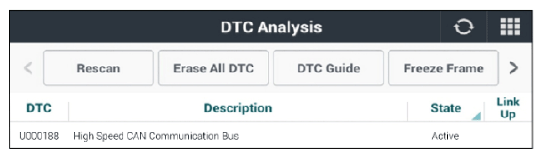

G16094509

Courtesy of KIA MOTORS AMERICA, INC.

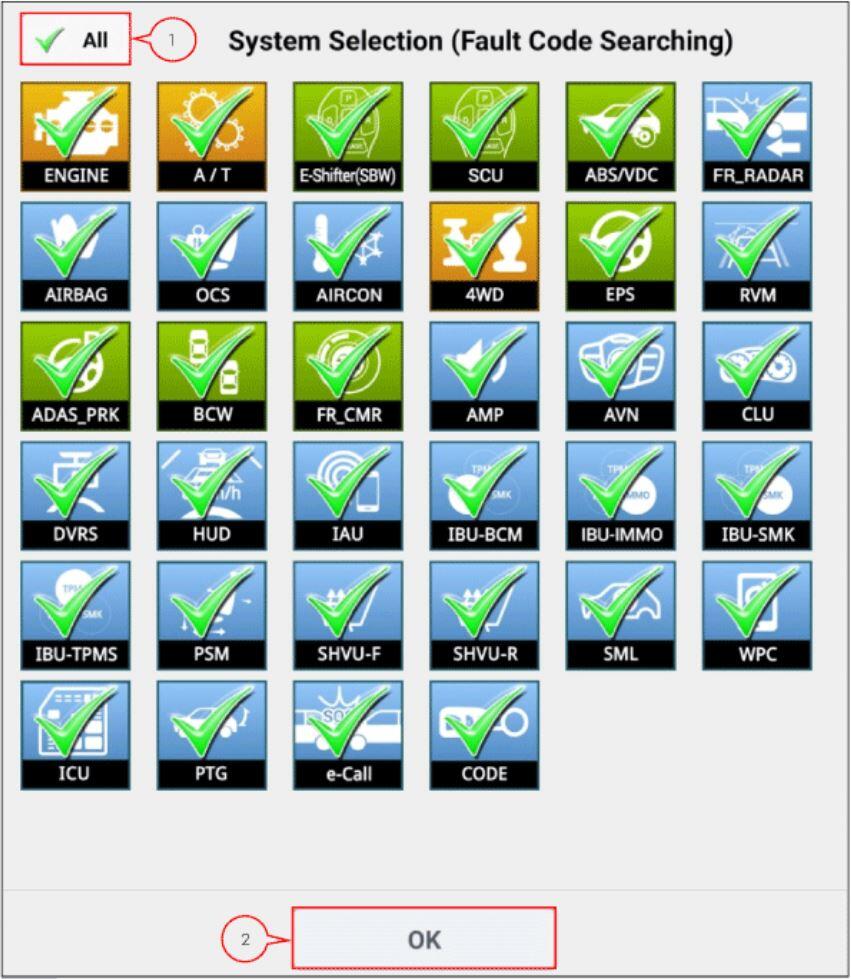

G00664277

Courtesy of KIA MOTORS AMERICA, INC.

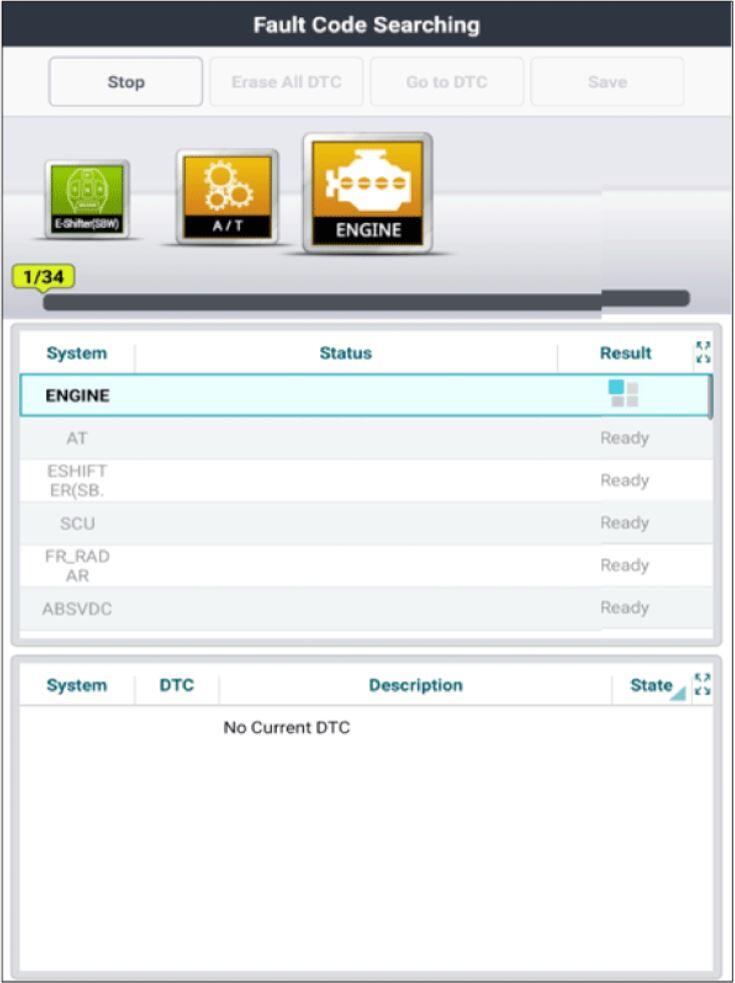

G00664278

Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet.
Repair as necessary and then go to "VERIFICATION OF REPAIR" procedure.

History/Pending Fault

Repair any CAN related DTCs first and then carefully re-do this troubleshooting guide steps.
If problem still occurs, Go to "WIRING INSPECTION" procedure.
