Inspection Procedure

  1. Check related fuse(s) or relay(s).
  2. Check 12V battery terminals and charge status.

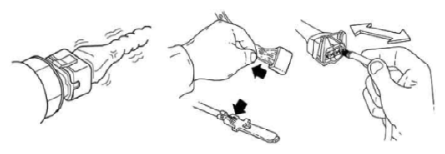

  3. Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
    G16094447Courtesy of KIA MOTORS AMERICA, INC.

    Good

    • Go to "CIRCUIT INSPECTION" procedure.

    No Good

    • Repair as necessary and then go to "VERIFICATION OF REPAIR" procedure.
