SRS Control Module (SRSCM): Removal

  1. Disconnect the battery negative (-) terminal.
    NOTE: After disconnecting the battery negative (-) terminal, wait at least 3 minutes and 30 seconds.
  2. Remove the floor console assembly.

    (Refer to Body - " FLOOR CONSOLE ASSEMBLY  ")

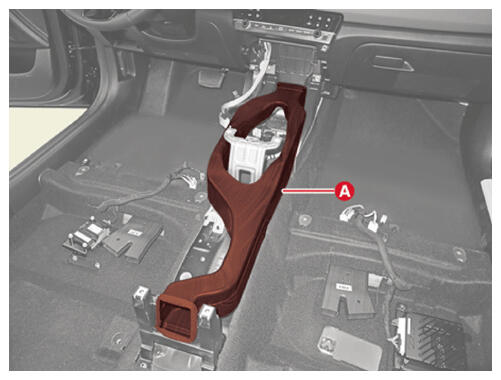

  3. Remove the rear air duct (A).
    G16424913Courtesy of KIA MOTORS AMERICA, INC.

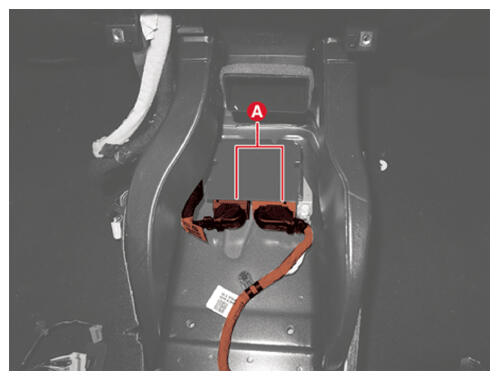

  4. Disconnect the supplemental restraint system control module connectors (A) by pulling the connector lock lever.
    G16424914Courtesy of KIA MOTORS AMERICA, INC.

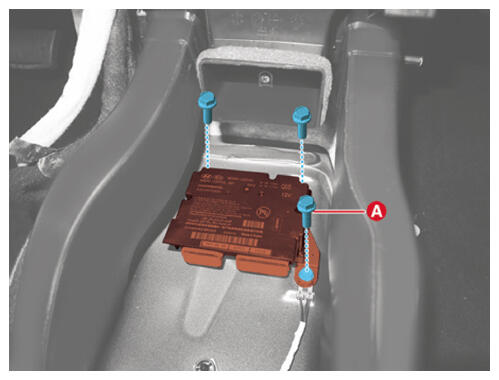

  5. Remove the supplemental restraint system control module (A) after removing the bolts.

    Tightening torque:

    10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 10.1 lb.ft)

    G16424915Courtesy of KIA MOTORS AMERICA, INC.
NOTE: Do not damage the Supplemental Restraint System Control Module (SRSCM) connector.
