Occupant Detection System Unit

  1. Remove the passenger side front seat assembly.

    (Refer to Body - " FRONT SEAT ASSEMBLY  ")

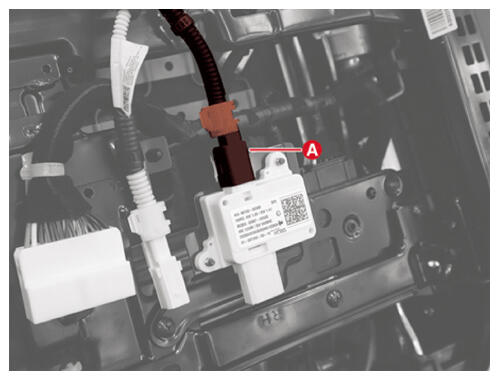

  2. Disconnect the occupant detection system unit connector (A).
    G16424926Courtesy of KIA MOTORS AMERICA, INC.

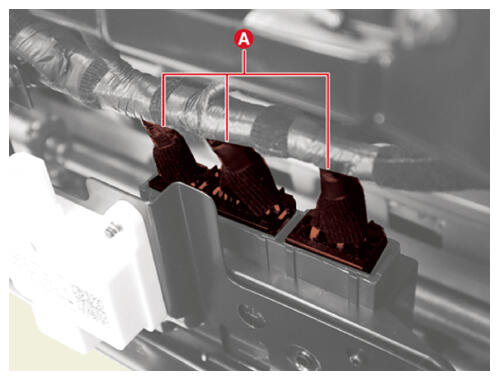

  3. Disconnect the seat heating and ventilation unit connectors (A).
    G16424927Courtesy of KIA MOTORS AMERICA, INC.

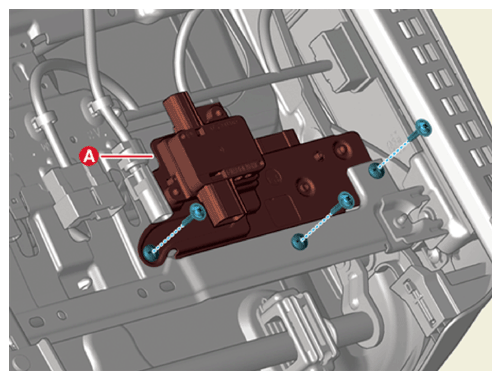

  4. Remove the occupant detection system unit bracket (A) after removing the screws.
    G16424928Courtesy of KIA MOTORS AMERICA, INC.

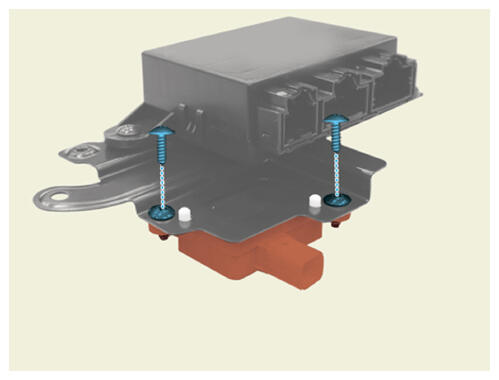

  5. Remove the occupant detection system unit (A) after removing the screws.
G16424929Courtesy of KIA MOTORS AMERICA, INC.

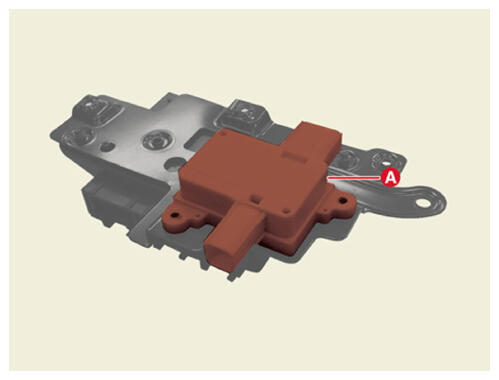

G16424930Courtesy of KIA MOTORS AMERICA, INC.
