Occupant Detection System Mat

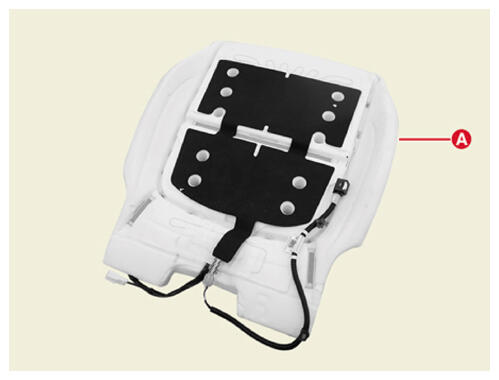

  1. Remove the passenger side front seat cushion pad (A).

    (Refer to Body - " FRONT SEAT CUSHION COVER  ")

G16424924Courtesy of KIA MOTORS AMERICA, INC.

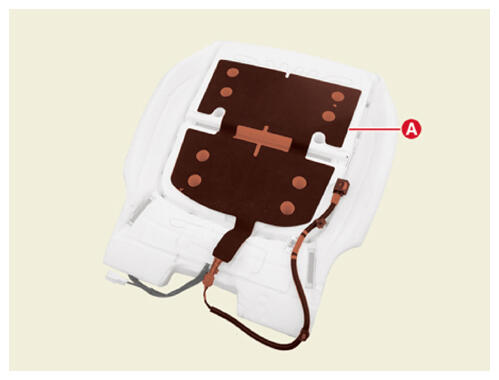

NOTE: When replacing the occupant detection sensor mat (A) the front seat cushion assembly is replaced.
G16424925Courtesy of KIA MOTORS AMERICA, INC.
