Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 7

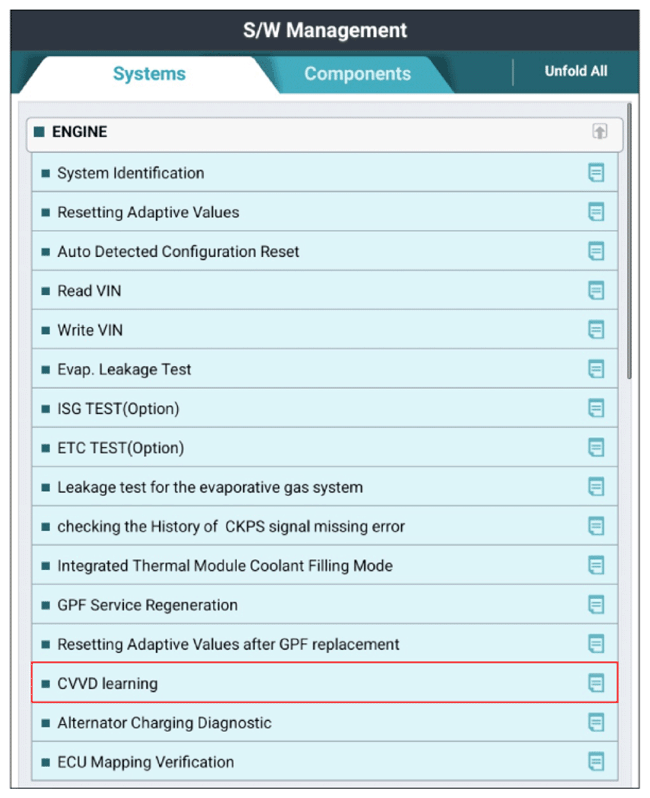

G16436666Courtesy of KIA MOTORS AMERICA, INC.

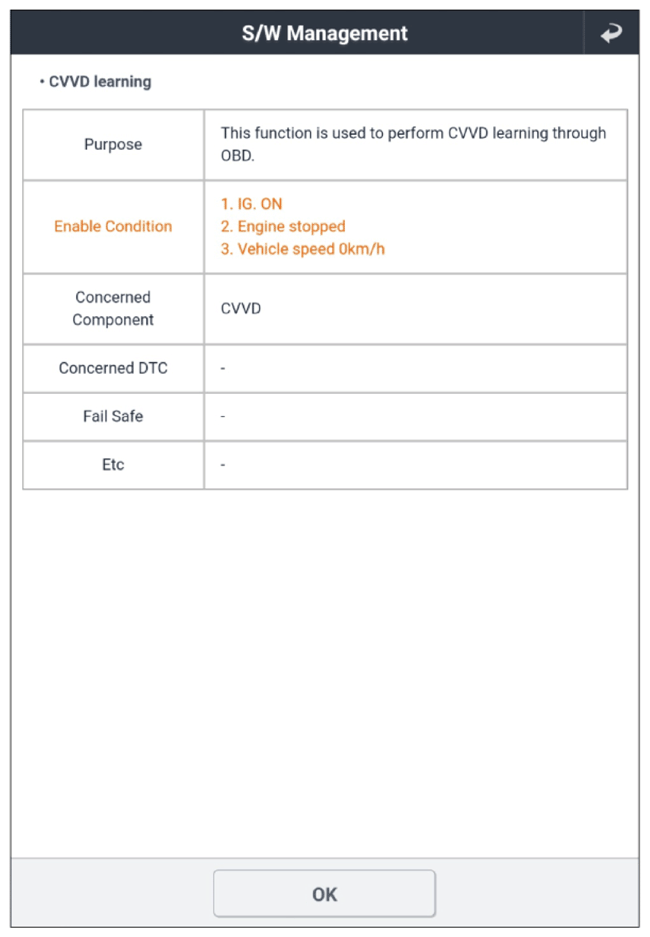

G16436667Courtesy of KIA MOTORS AMERICA, INC.

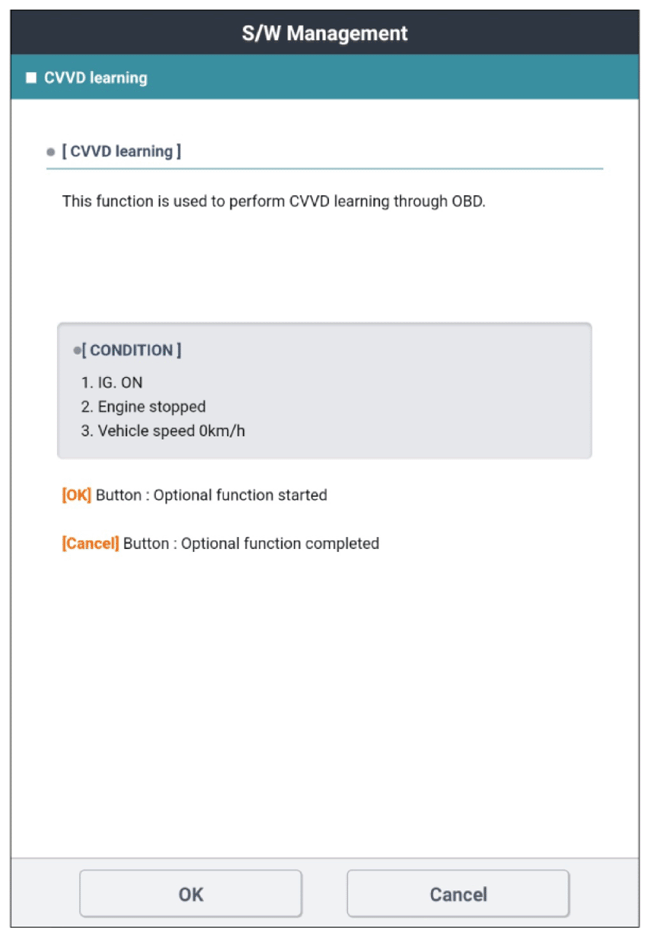

G16436668Courtesy of KIA MOTORS AMERICA, INC.

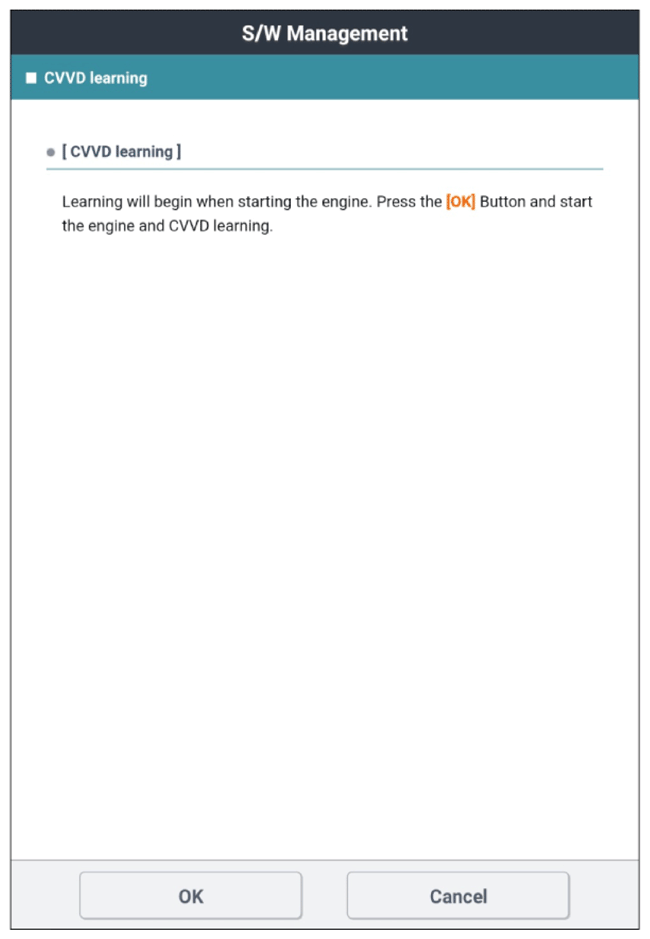

G16436669Courtesy of KIA MOTORS AMERICA, INC.

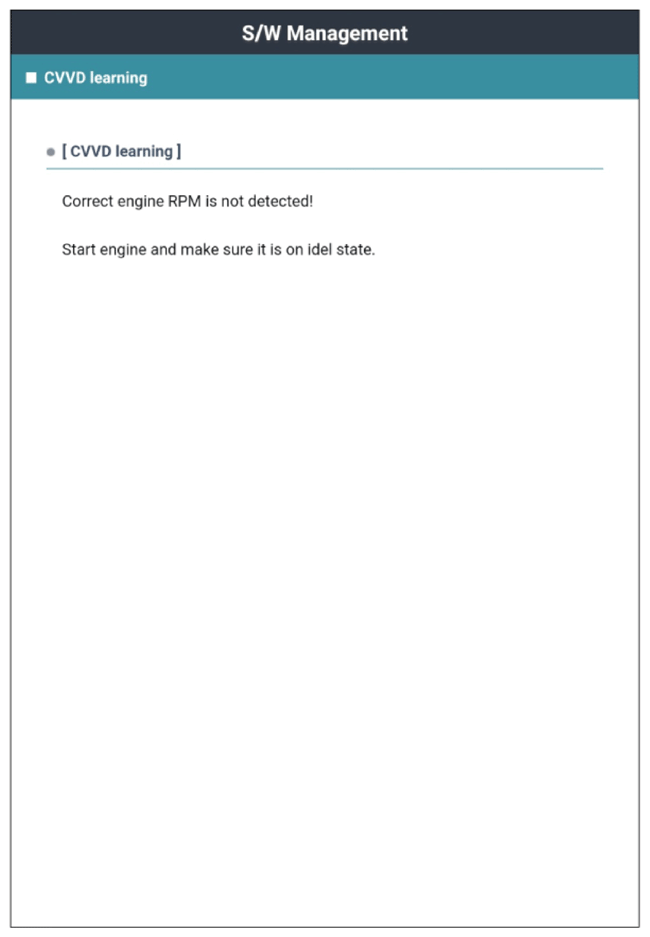

G16436670Courtesy of KIA MOTORS AMERICA, INC.

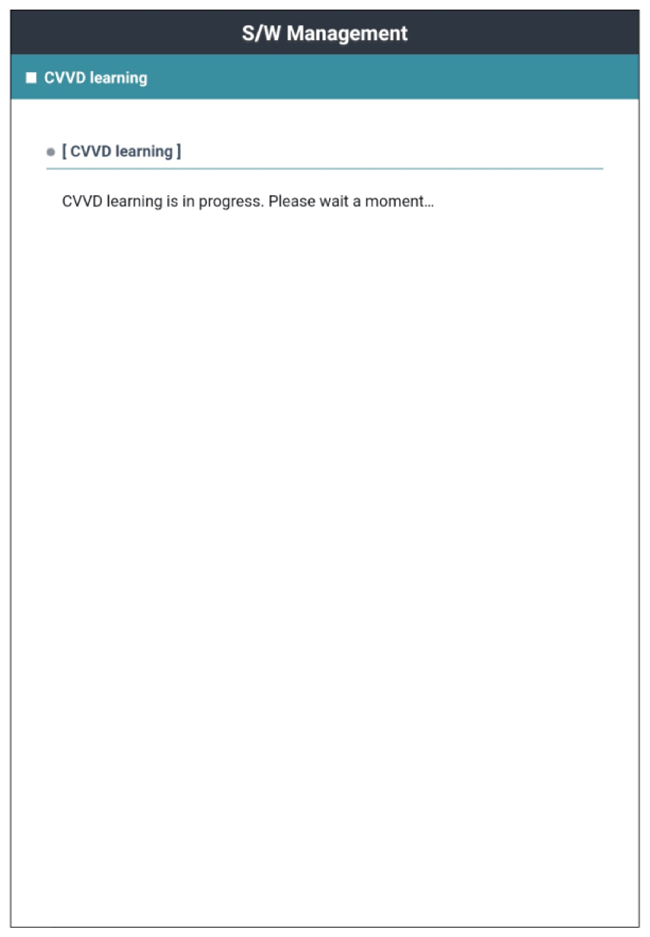

G16436671Courtesy of KIA MOTORS AMERICA, INC.

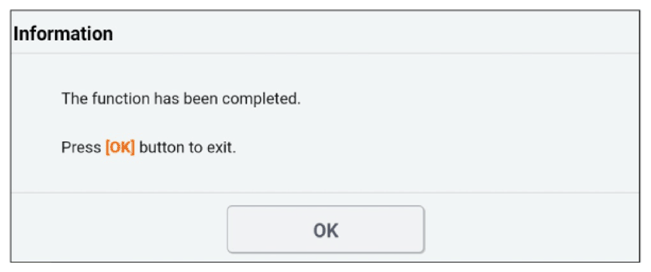

G16436672Courtesy of KIA MOTORS AMERICA, INC.
