Circuit Inspection: Notes

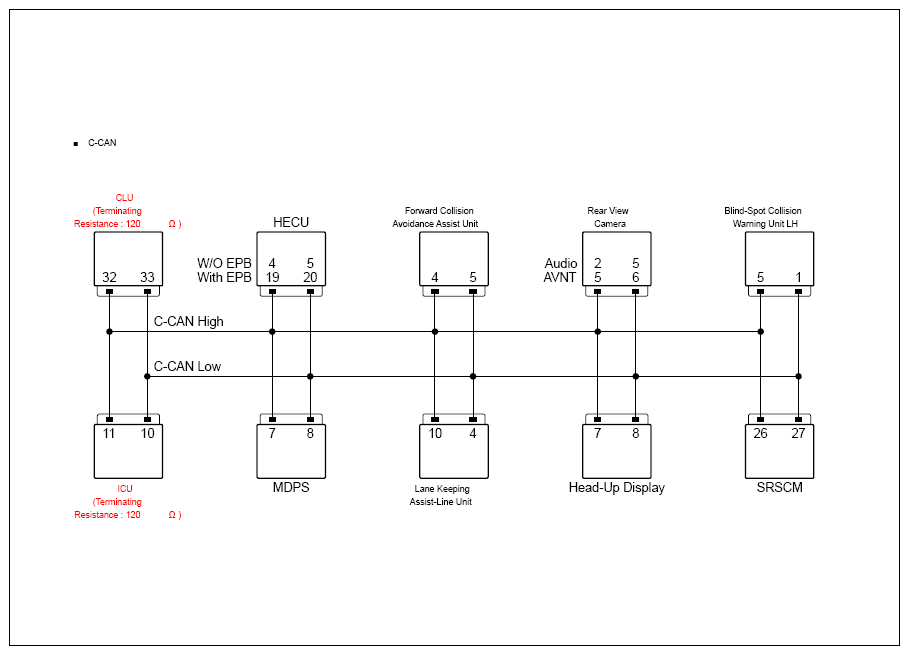

G16436424Courtesy of KIA MOTORS AMERICA, INC.

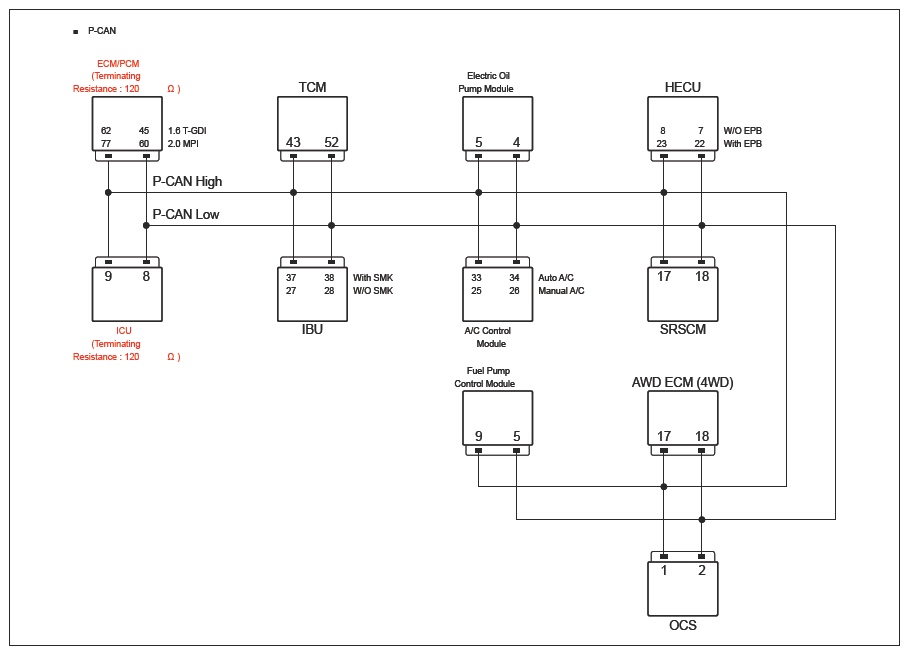

G16436425Courtesy of KIA MOTORS AMERICA, INC.
