Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.

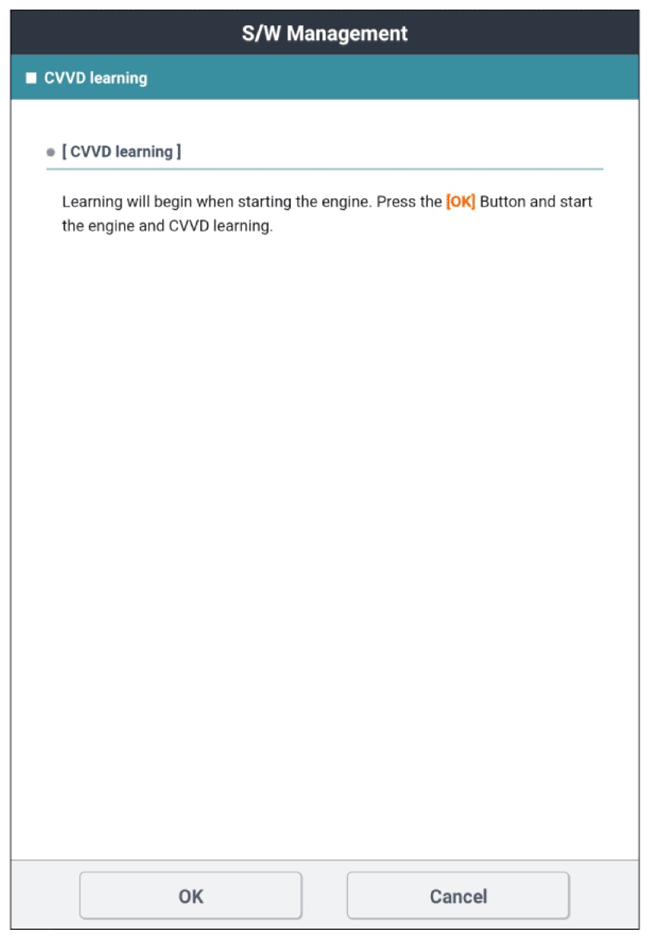

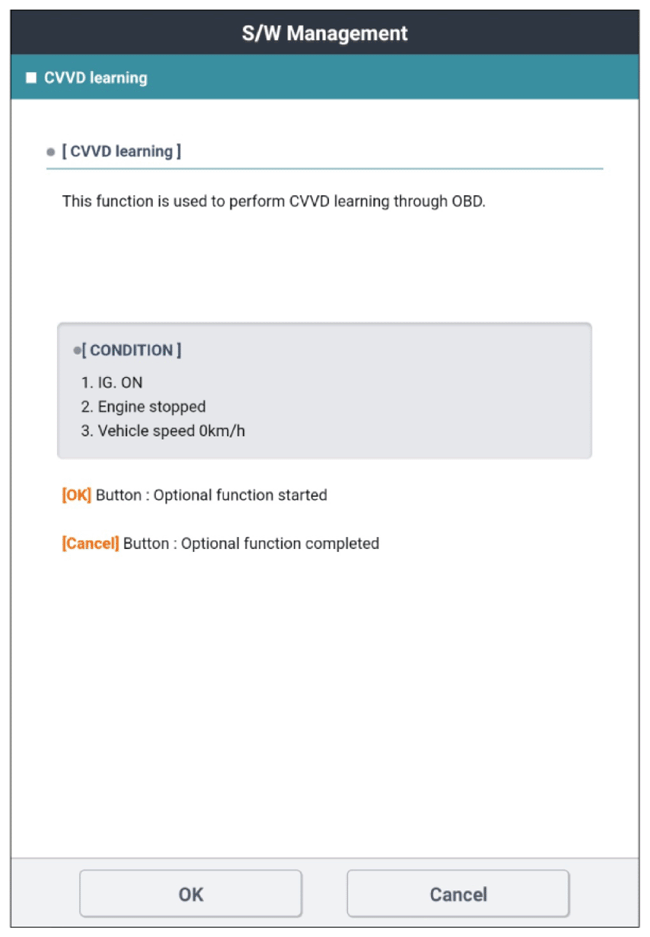

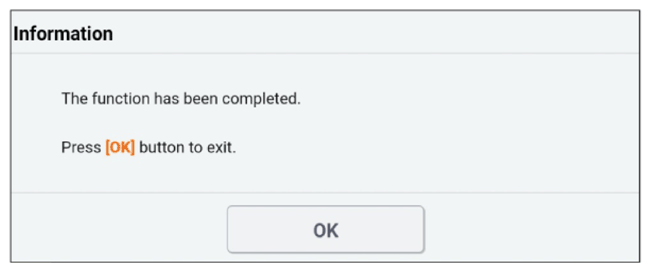

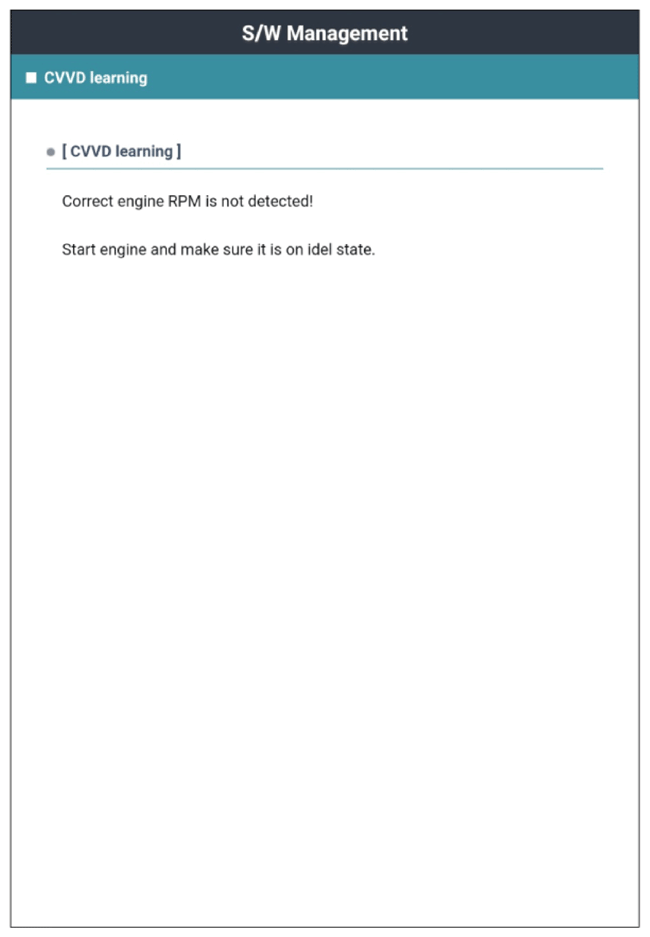

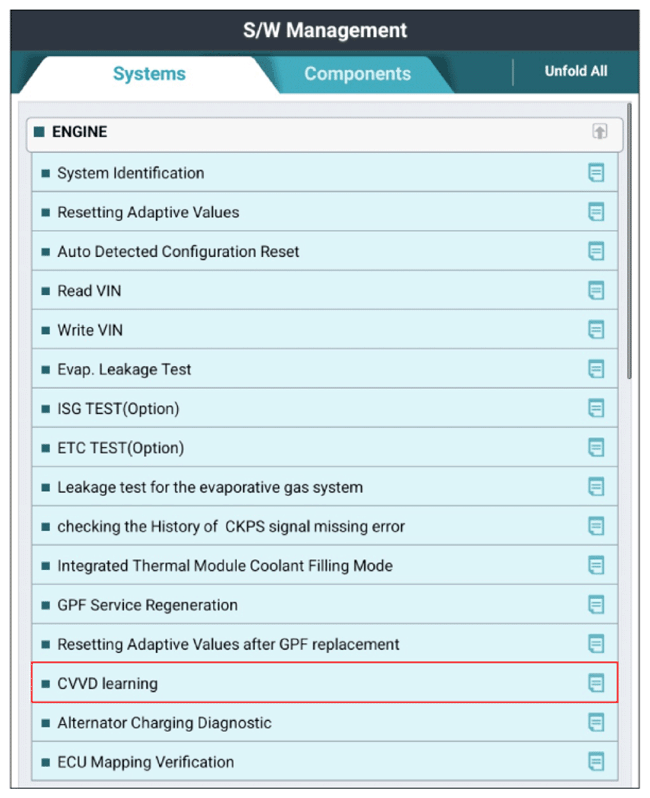

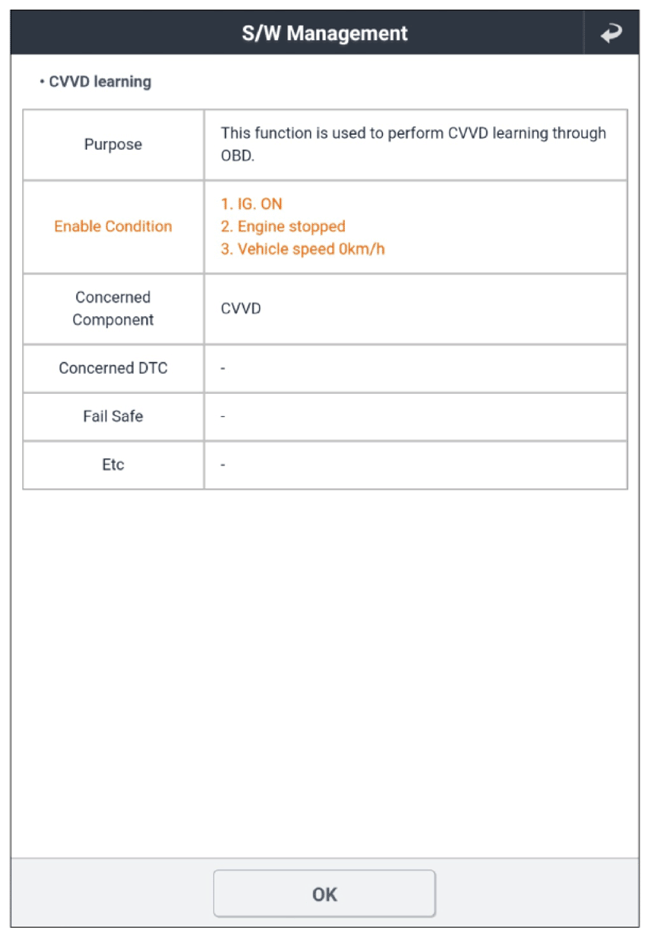

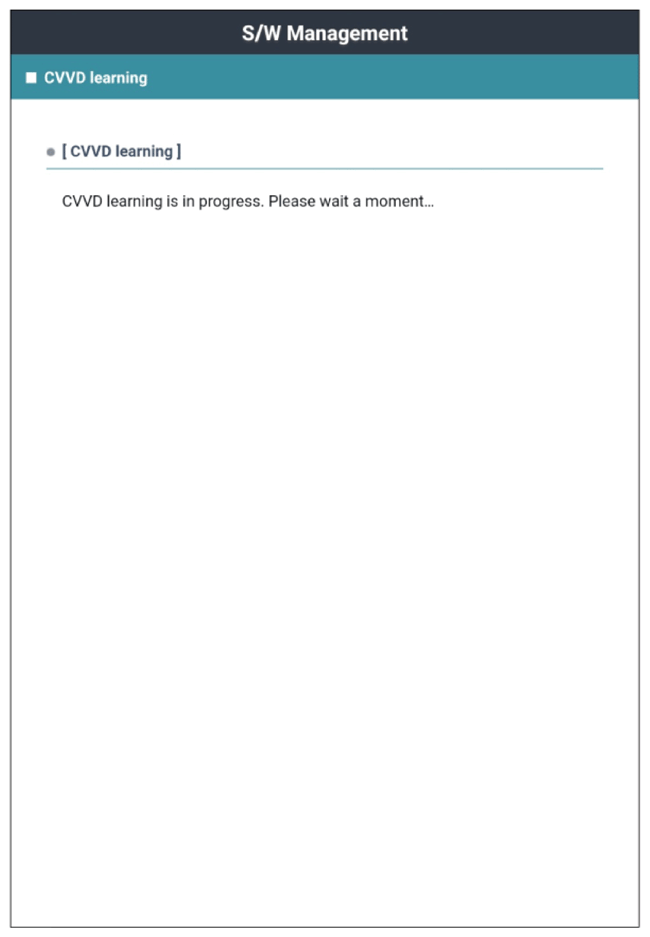

 Fig.1 to 7
G16435679Courtesy of KIA MOTORS AMERICA, INC.
G16435680Courtesy of KIA MOTORS AMERICA, INC.
G16435681Courtesy of KIA MOTORS AMERICA, INC.
G16435682Courtesy of KIA MOTORS AMERICA, INC.
G16435683Courtesy of KIA MOTORS AMERICA, INC.
G16435684Courtesy of KIA MOTORS AMERICA, INC.
G16435685Courtesy of KIA MOTORS AMERICA, INC.
