Home >> Kia >> 2024 >> Seltos X-Line >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis - 1.6L (5 Of 8) >> DTC P1931-00: Intake Valve Duration Sync Error >> DTC Information >> Diagnostic Flow Chart

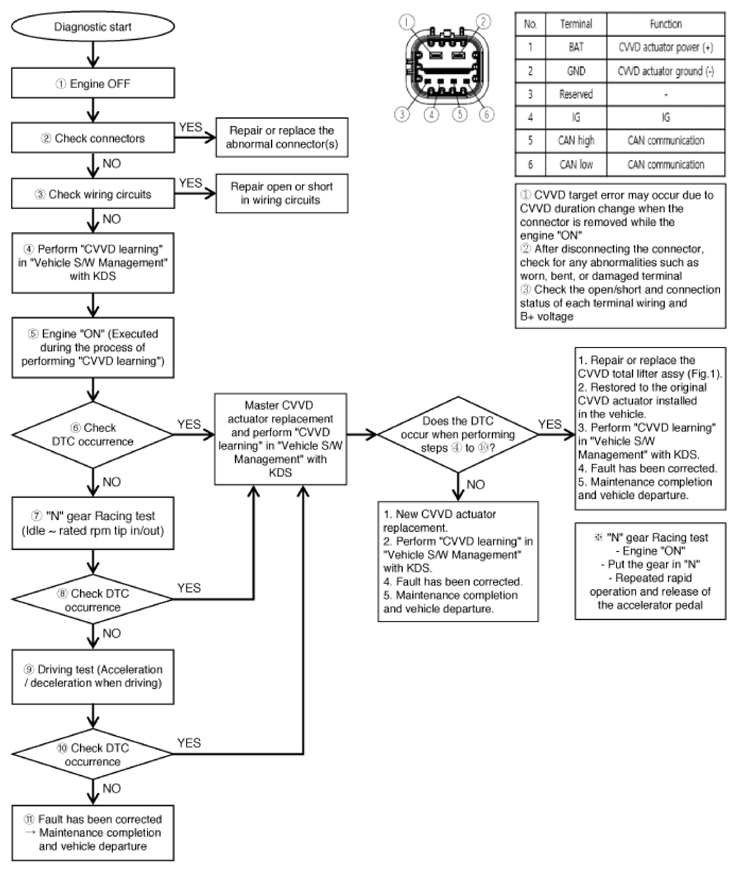

Diagnostic Flow Chart

G16435645Courtesy of KIA MOTORS AMERICA, INC.

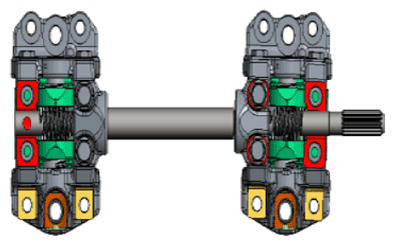

G16435646Courtesy of KIA MOTORS AMERICA, INC.
